7 Care and Maintenance
TC29
78
7.9.16 Swing gear
The swing gear is maintenance-free.
Circulation lubrication provided by the
hydraulic system
7.9.17 Windshield washer
•
Top up the washer fluid storage tank (69/13)
as required.
•
Add antifreeze when temperature
s are around
or below freezing.
HR14-03-69
3

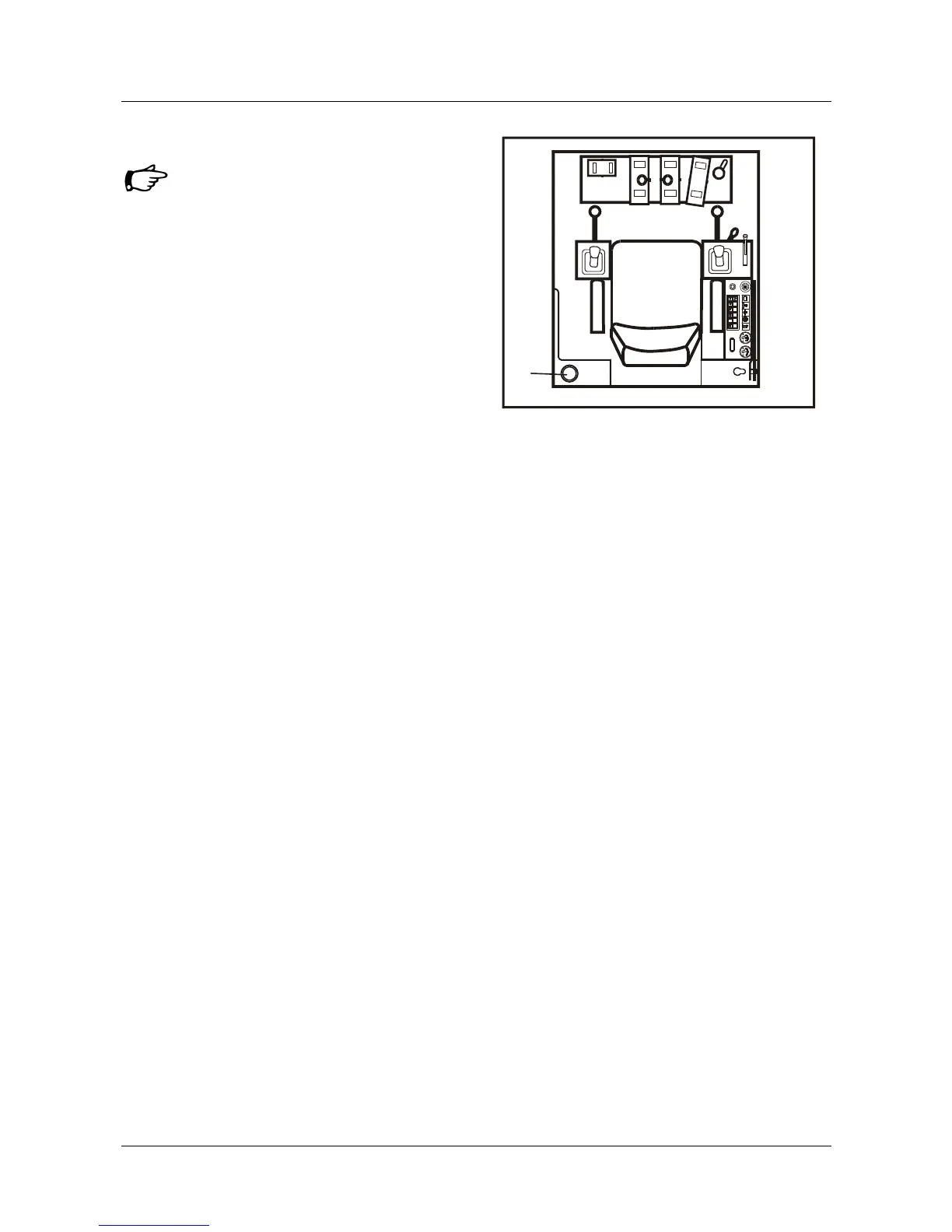

Fig. 69 Washer fluid tank
83
85
