4 Operation
TC29
30
4.2 Display elements and operator controls

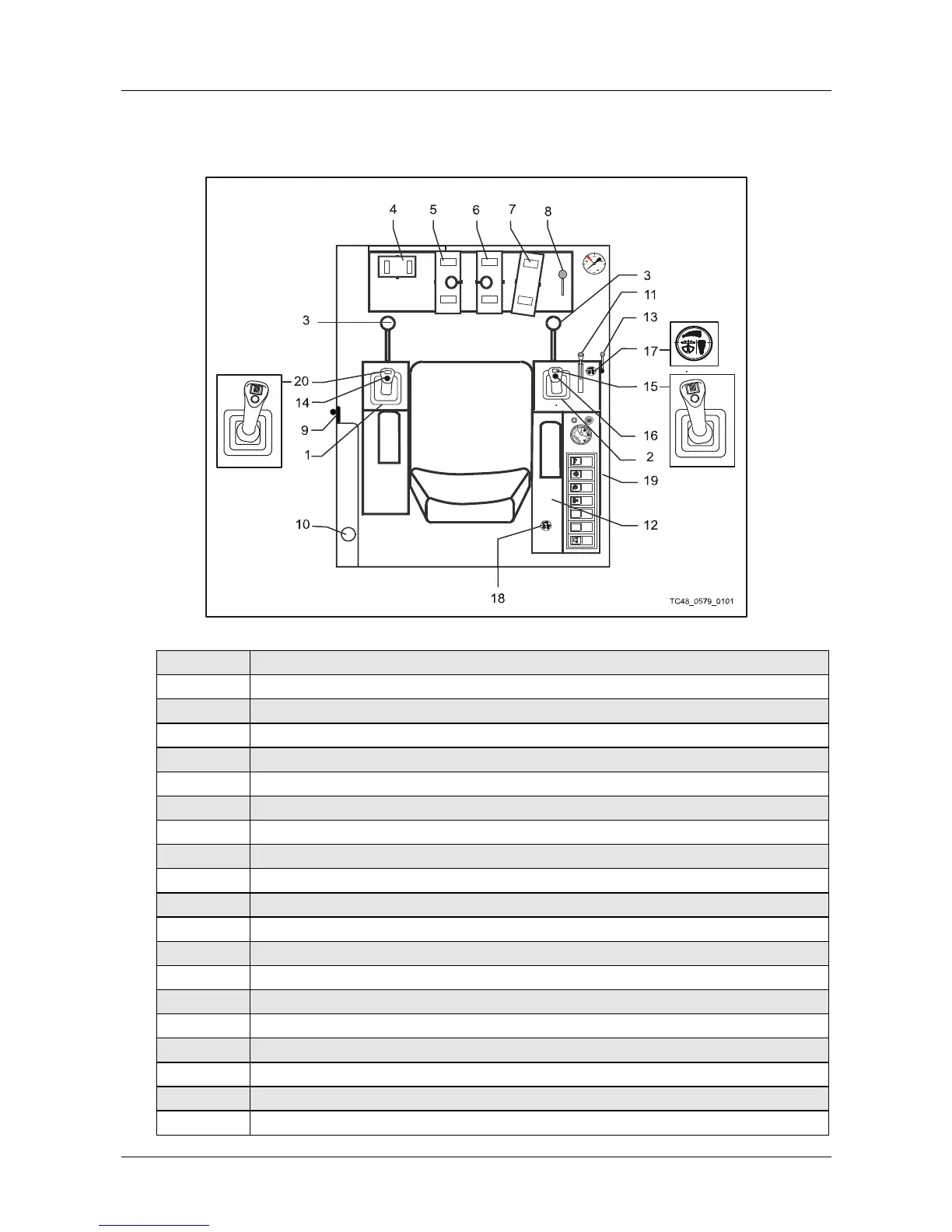

Fig. 10.1 Operation
1
Operation - excavator equipment on left
2
Operation - excavator equipment on right
3
Cut-off - working hydraulics/exit barrier
4
Operation - articulation on left, articulation on right
5
Left travel
6
Right travel
7
Additional control circuit 1 - grab rotation, hammer, etc.
8
Operation - dozer blade
9
Door release
10
Windshield washer tank
11
Hand throttle
12
Fuse and relay box
13
Changeover "ISO" control - "SAE" control Option
14 Brake - slewing
15 Roller (fingertip) - additional control circuit 1 Option
16 --
17 Potentiometer - additional circuit 1 Option
18 Potentiometer - additional circuit 2 Option
19 Vandalism guard (only for canopy version)
20 Roller (fingertip) - additional control circuit 2 or articulation Option
