Replacing V-belts

• Open the engine hood.

• Disconnect the battery.

• Loosen the 2 fastening screws of the grill and

remove the grill.

• Loosen the clamping bolt (56/1) of the

generator and remove the V-belt.

• Slightly press the water cooler to the right and

take out the V-belt above the fan blade.

• Mount new V-belt and tighten in compliance

with instructions.

• Re-mount the 2 fastening screws of the grill.

• Re-connect battery.

• Check the correct function of the fan blade.

• Test run.

When new V-belts are fitted, their tension

must be checked and adjusted if

necessary after the first 15 min.

HR14-03-56

14Nm

22Nm

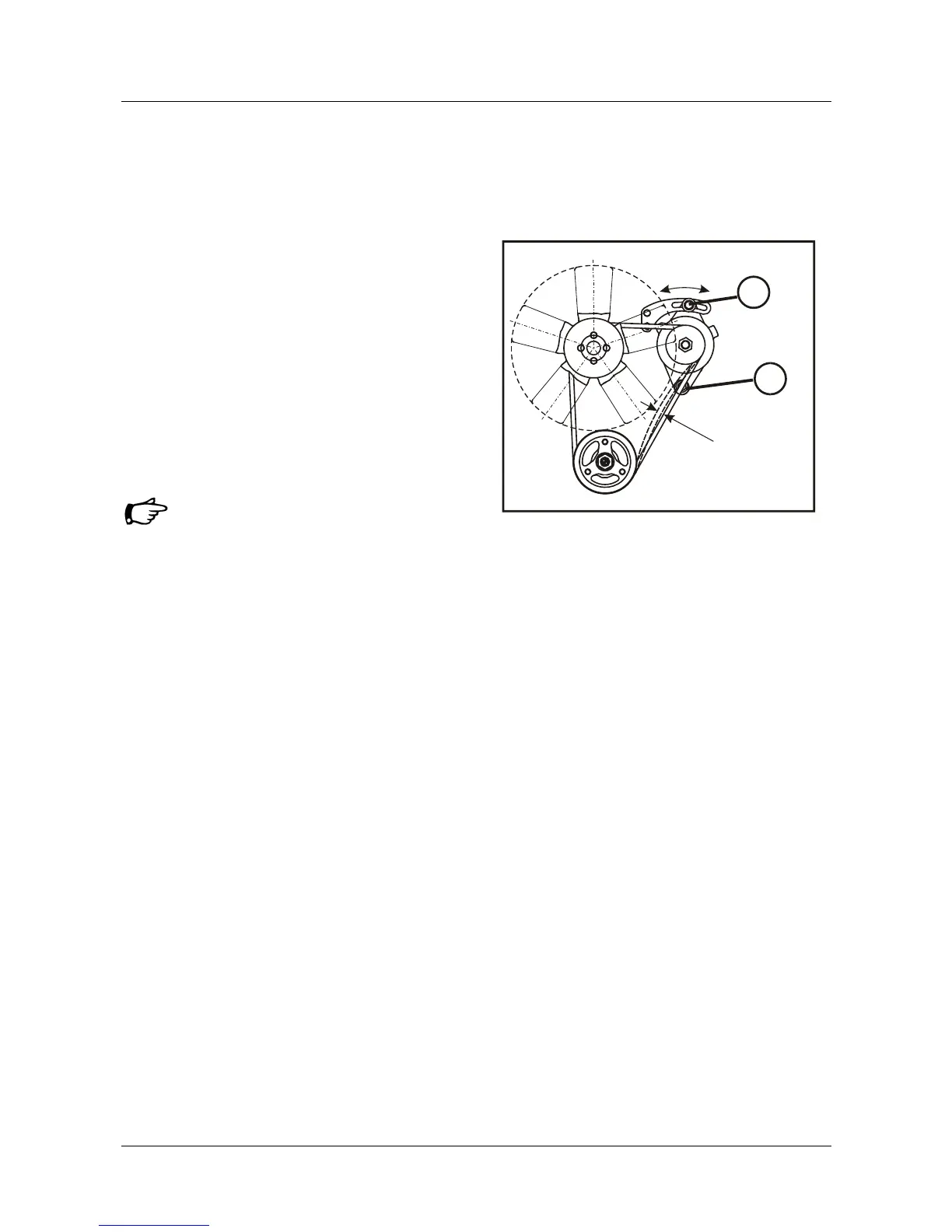

Fig. 56 V-belt
