Terex TW85 - Drivers Seat, Steering Wheel Height and Tilt Adjustment

Operation 4
TW85 39
4.3 Driver's seat, steering wheel height and tilt
adjustment
Driver's seat
The comfort seat is spring-mounted with oil-
pressure-operated shock absorbers.
The seat meets international quality and safety
standards (fig. 13)
1 Horizontal adjustment of seat
2 Horizontal adjustment of seat console
3 Weight adjustment
4 Seat back adjustment
5 Lumbar support
6 Vertical adjustment
Raising seat:
Raise seat until it clicks audibly into place
Lowering seat:
Raise seat as far as the stop; the seat then sinks
to its lowest position.
Tilt adjustment of steering wheel
• Push down lever (14/7)
• Adjust steering-wheel tilt
• Release lever
Steering wheel height adjustment
• Push up lever (14/7)
• Adjust steering-wheel height
• Release lever
2
4
3
1
5
HM32-013
020717
1
3

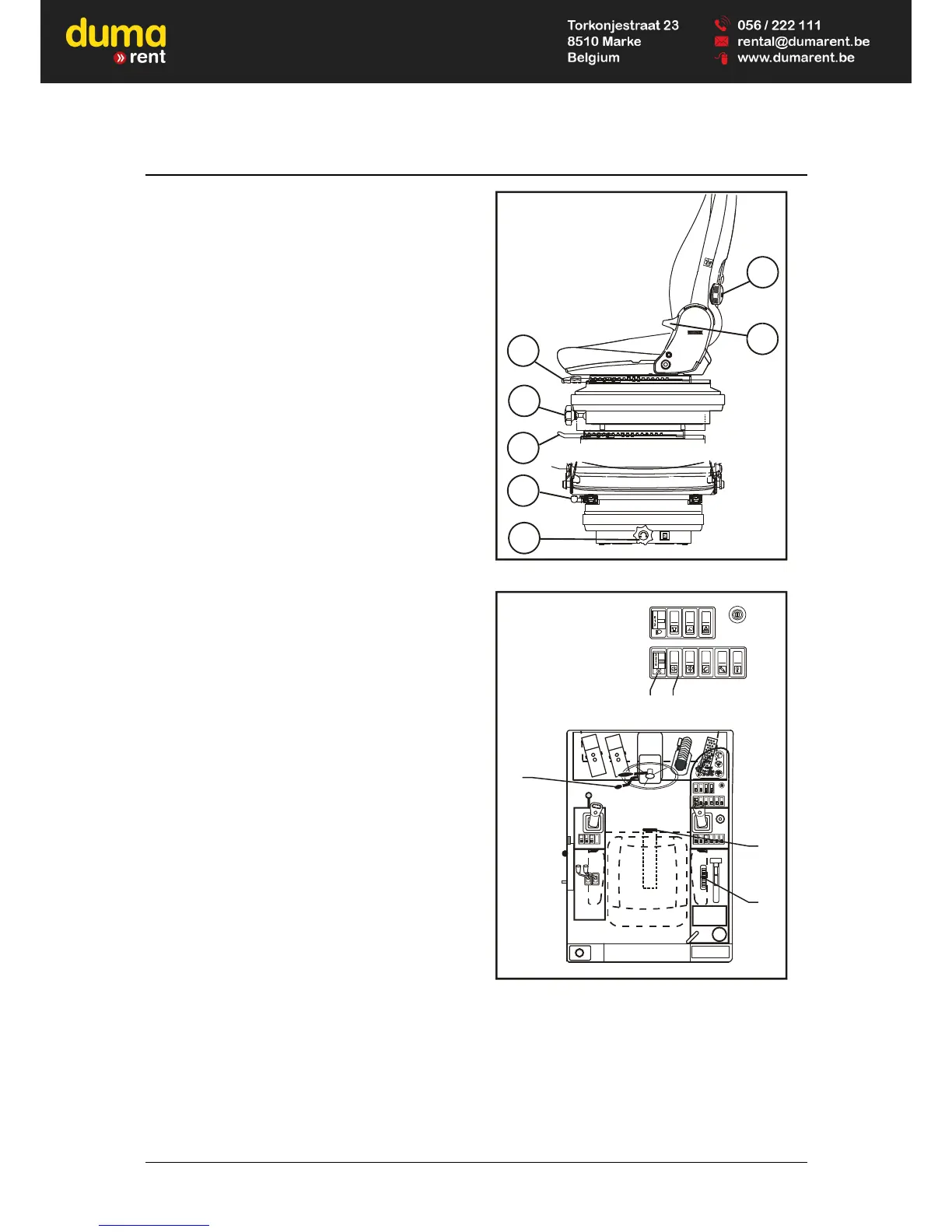

Fig. 13 Operator’s seat
HM32-014
010831
49 50
7
17
25
Fig. 14 Operation
