Working operation of the machine 5
TW85 51
5.3 Operation of work functions
5.3.1 Operation – work equipment
The machine can optionally be
equipped with a changeover from ISO to
SAE control. Before operating the
working equipment, check whether there
is a changeover switch or which
operating mode is set.
Danger of accident!
• (Option) Select the desired mode of operation
of the work equipment using the switch (32/73).
A = ISO control system
B = SAE control system
Swinging the uppercarriage on an
incline!
To avoid the uppercarriage from drifting
sideways when starting to swing, the
additional hydrostatic swing brake must
be operated. To this purpose, actuate
key button (32/69) and keep it actuated
until the uppercarriage starts to swing.
HR32-032
5
14
73
0
4/4
,
!
P
P
69

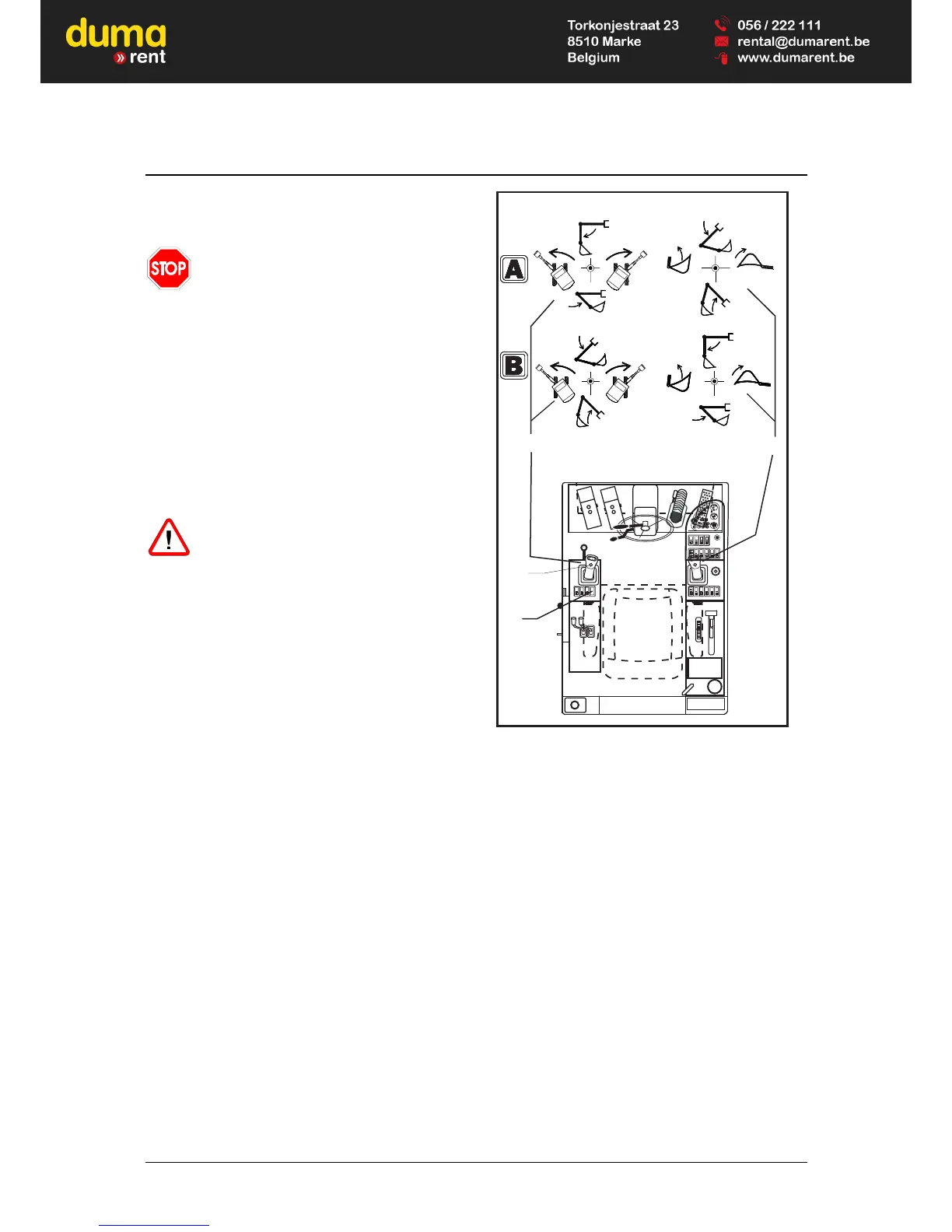

Fig. 32 Operation
