7.9.14 Brakes
Front axle TW85, TW85
S, TW85 AL and rear
axle TW85 AL
Checking function of brake disc play
• Apply the parking brake (86/63).
• Open the inspection hole (85/1).
• Check the wear of the brake discs using a
measuring gauge.
• Minimum thickness S=4,5 mm
Rear axle TW85, TW85
S
The brake disks of the disk brakes in the wheel
hubs cannot be inspected.
HM32-085-N
1
Vorderachse/Front axle - HML32, HML32AL, HLM32S
Hinterachse/Rear axle - HML32AL
1

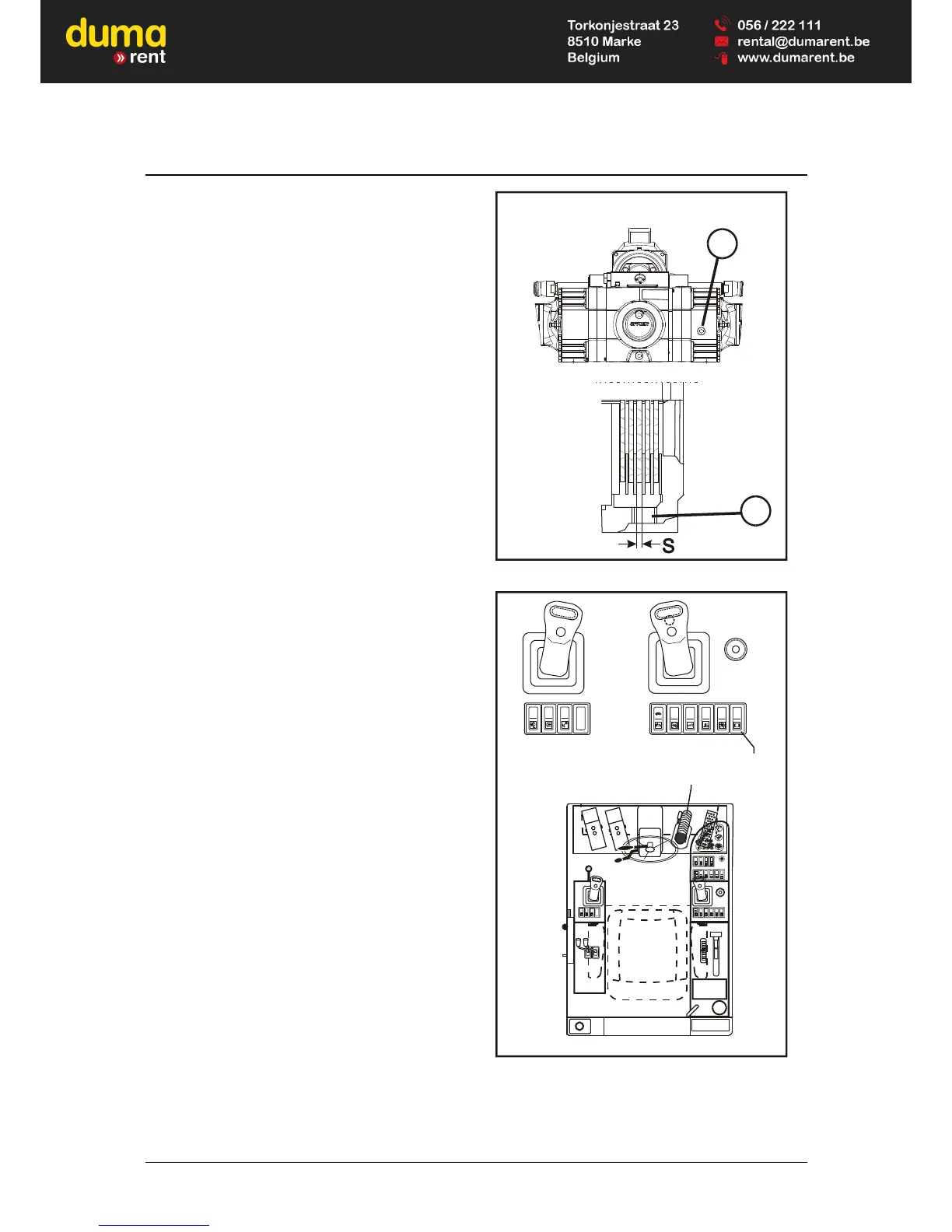

Fig. 85 Brake discs
P
HM32-086
63
12
Fig. 86 Operation
