Maintenance and care 7
TW85 97
7.9.13.4 Wheel hub
Front axle TW85, TW85
S, TW85 AL and rear
axle TW85 ALChecking oil level
The wheel hub has a combined
inspection, filling and drain hole.
• Move the wheel hub to the inspection position.
• Remove the screw plug, check and top up oil if
required.
Changing oil
• Turn the wheel until the screw plug (84/1) on
the hub is at the bottom.
• Open the screw plug and catch the escaping
oil.
• Flush out if necessary.
• Turn the wheel to the filling and inspection
position; the inspection mark must be
horizontal.
• Fill in oil up to the lower edge of the hole.
• Screw back on the filling plug carefully.
Rear axle TW85, TW85
S
Checking oil level
• Move the wheel hub to the inspection position
• Remove the screw plug (84/2) check and top up
oil if required.
Changing oil
• Turn the wheel until the screw plug (84/2) on
the hub is at the bottom.
• Open the screw plug (84/2) and the drain plug
(84/3) and catch any escaping oil.
• Flush out if necessary.
• Carefully close the drain plug (84/3).
• Turn the wheel to the filling and inspection
position; the inspection mark must be
horizontal.
• Fill in oil up to the lower edge of the hole.
• Carefully close the filling hole (84/2).
HM32-084-N
Vorderachse
Front axle
Hinterachse
Rear axle
1
2
HML32, HML32S, HML32AL
HML32ALHinterachse
Rear axle
HML32, HML32S
3

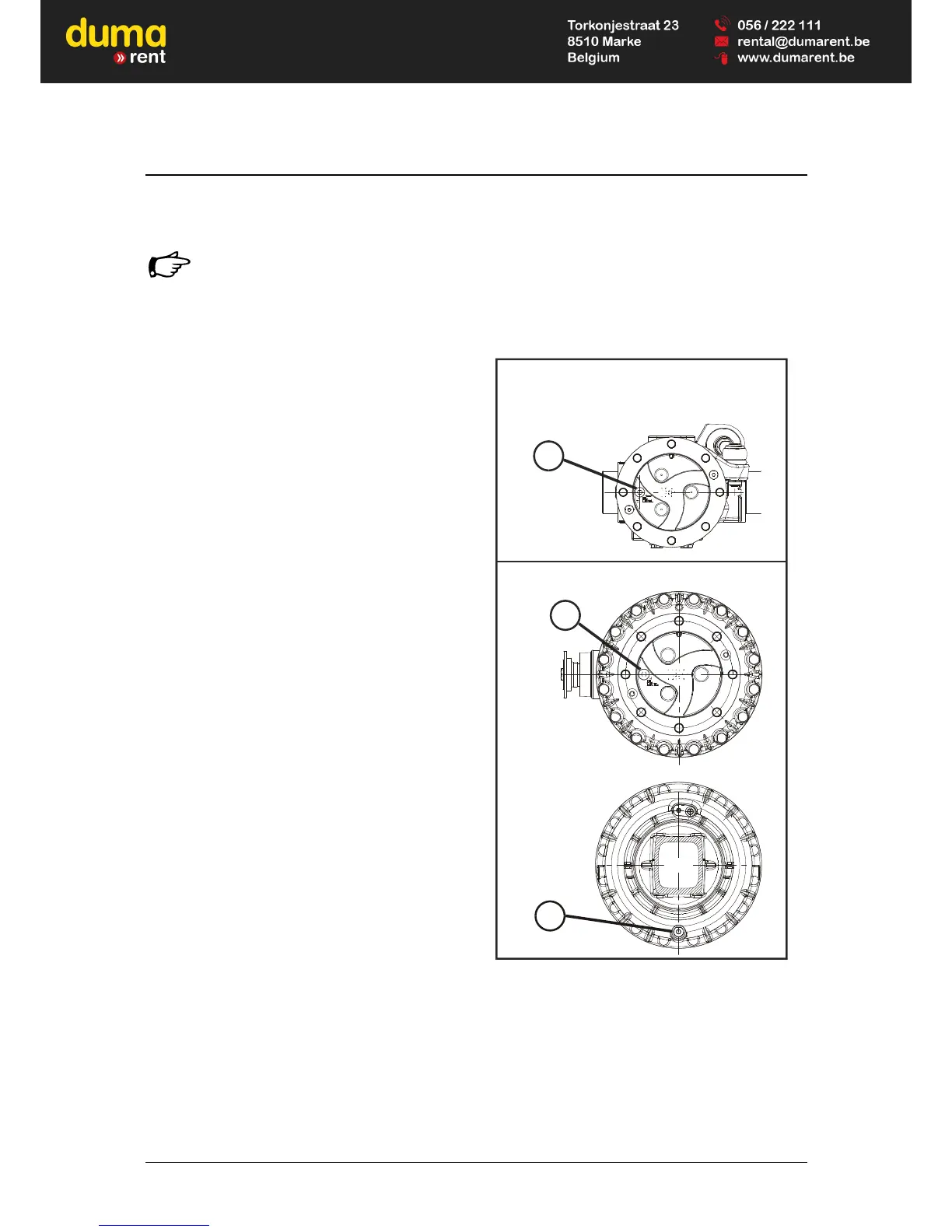

Fig. 84 Wheel hub
