Terex TW85 - Work Function and Attachment Operation

Operation 4
TW85 45
Four-wheel steering mode
When switching over from normal
steering to four-wheel steering, the front
axle must be in "straight position."
When switching over from crab steering
to four-wheel steering, the front and rear
axle must be in "straight position."
• Straight-ahead control lamp (19/35) for front
axle lights up when wheels are straight.
• Straight-ahead control lamp (19/34) for rear
axle lights up when wheels are straight.
• Travel range / steering type switch (19/64) set
to four-wheel steering
4WS “crab steering”
When switching over from normal
steering to crab steering, the front axle
must be in "straight position."
When switching over from four-wheel
steering to crab steering, the front and
rear axle must be in "straight position."
• Straight-ahead control lamp (19/35) for front
axle lights up
• Straight-ahead control lamp (19/34) for rear
axle lights up
• Travel range / steering type switch (19/64) set
to crab steering
0
4/4
,
!
P
HM32-019-N
64
P
35
34

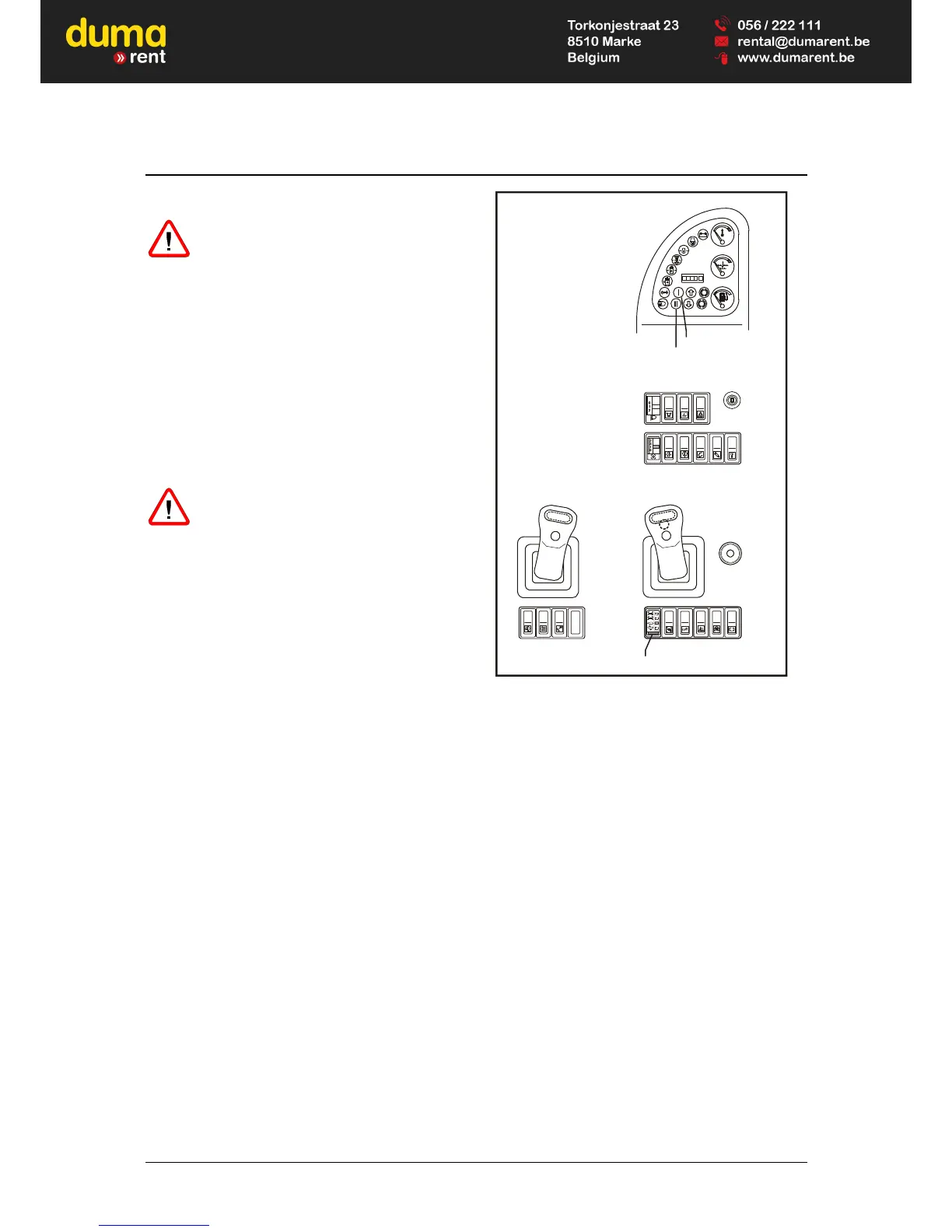

Fig. 19 Operation
