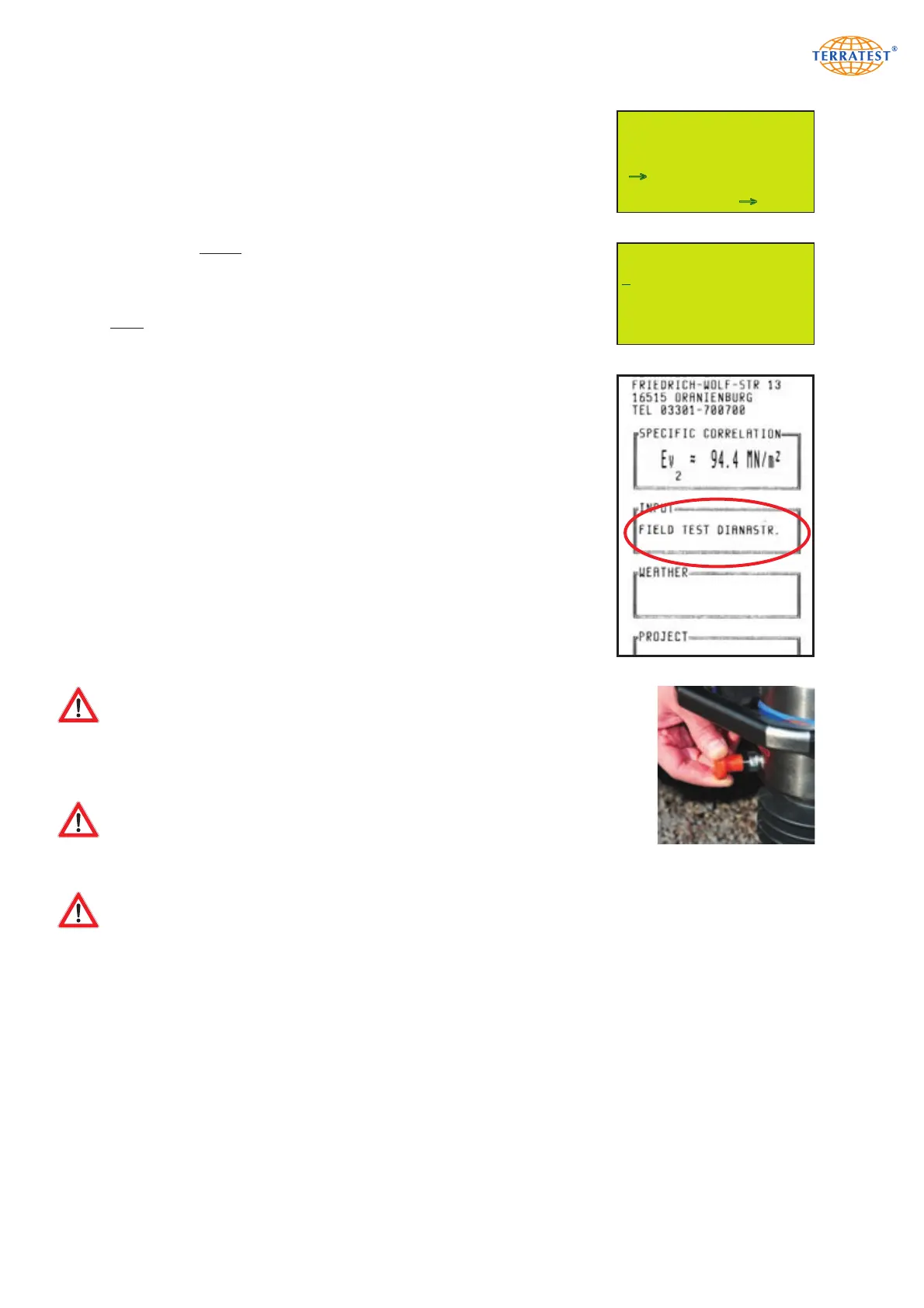

After placing the loading device on the metal ball in the centre of the sensor
dome, unlock the transportation lock of the drop weight by pulling the orange
knob. The transportation lock should only be unlocked immediately prior to
a test being performed, as uncontrolled movements of the weight may cause
injury or damage to the device or its surroundings.
Ensure that the transportation lock is unlocked before each drop.
In case of improper use, i.e. if the weight is dropped while the transportation
lock is still pushed in, damage to the device may occur. Damage caused by
improper use is not covered by the device warranty.
Regularly check that the transportation lock of the drop weight is functioning
properly. If you notice signs of wear, stop using the device immediately. Send
the device back to TERRATEST GmbH for the transportation lock to be repai-
red or replaced.
Each of the displayed soil layers can be chosen by ‘SELECT’ button, indi-
vidual text entry is also possible PERMANENT DATA or FREE EDITABLE.
Press START button to accept the selection, and the measurement mode
opens automatically.
Pressing PERMANENT DATA and FREE EDITABLE opens data entry mode.
Select the desired digits by <= or =>, and confirm the selection by
‘ENTER’ and briefly pressing START button.
Press ‘TEXT’ to select particular characters to overwrite or delete them.
Long pressing ‘START button confirms data input and directly guides to
measuring mode. Data entry is stored on data carrier.
Each selection respectively text entry remains stored as long as the device
is activated, or the entry is overwritten. PERMANENT data remain stored
even when the device is switched OFF.
The confirmed entry will be shown in the ‘INPUT’ field of the protocol
printout and in the ‘Comments’ field of the web-based software ‘TEOLO’.
_
A
BCDEFGHIJKLMNOPQR
STUVWXYZ1234567890 .,-/#
TEXT <= => ENTER
UNLATCHING THE
TRANSPORTATION
LOCK
NATUR. GROWN SOIL
SUBGRADE
BASE COURSE
GRAVEL BASE LAYER
FROST PROTECTION
PERMANENT DATA
FREELY EDITABLE
EXIT SET
→
→
