MAIN MENU
USB STICK
LANGUAGE
GPS / TIME
INTERNAL MEMORY
SERVICE
SENSOR
EXIT SET
→
→
MAIN MENU
USB STICK
LANGUAGE
GPS / TIME
INTERNAL MEMORY
SERVICE
SENSOR
EXIT SET
→
→
INTERNAL MEMORY MENU
TEST DATA LIST
PRINT OUT
SEND TO PC
SEND TO CARD
ERASE MEMORY
EXIT SET
→
→
INTERNAL MEMORY MENU
PRINT OUT
SEND TO PC
SEND TO CARD
ERASE MEMORY
EXIT SET
→
→
PLEASE CONNECT TO
USB-PORT OF PC
EXIT EXIT
PC connected
EXIT EXIT
EXIT SHOW
→
1 30/06/17 44,9
2 30/06/17 46,1
3 30/06/17 48,0
4 30/06/17 48,2
5 30/06/17 49,2
→
→
7.5 Internal Memory
The last 2000 tests will automatically be saved in the internal memory of
the testing computer, even if the external medium (USB stick) is not in
use. The test data can be transferred from the internal memory to the
external medium, if required.
The USB cable port allows test data to be transferred to a PC for analysis
using the USB cable (included in the basic package).

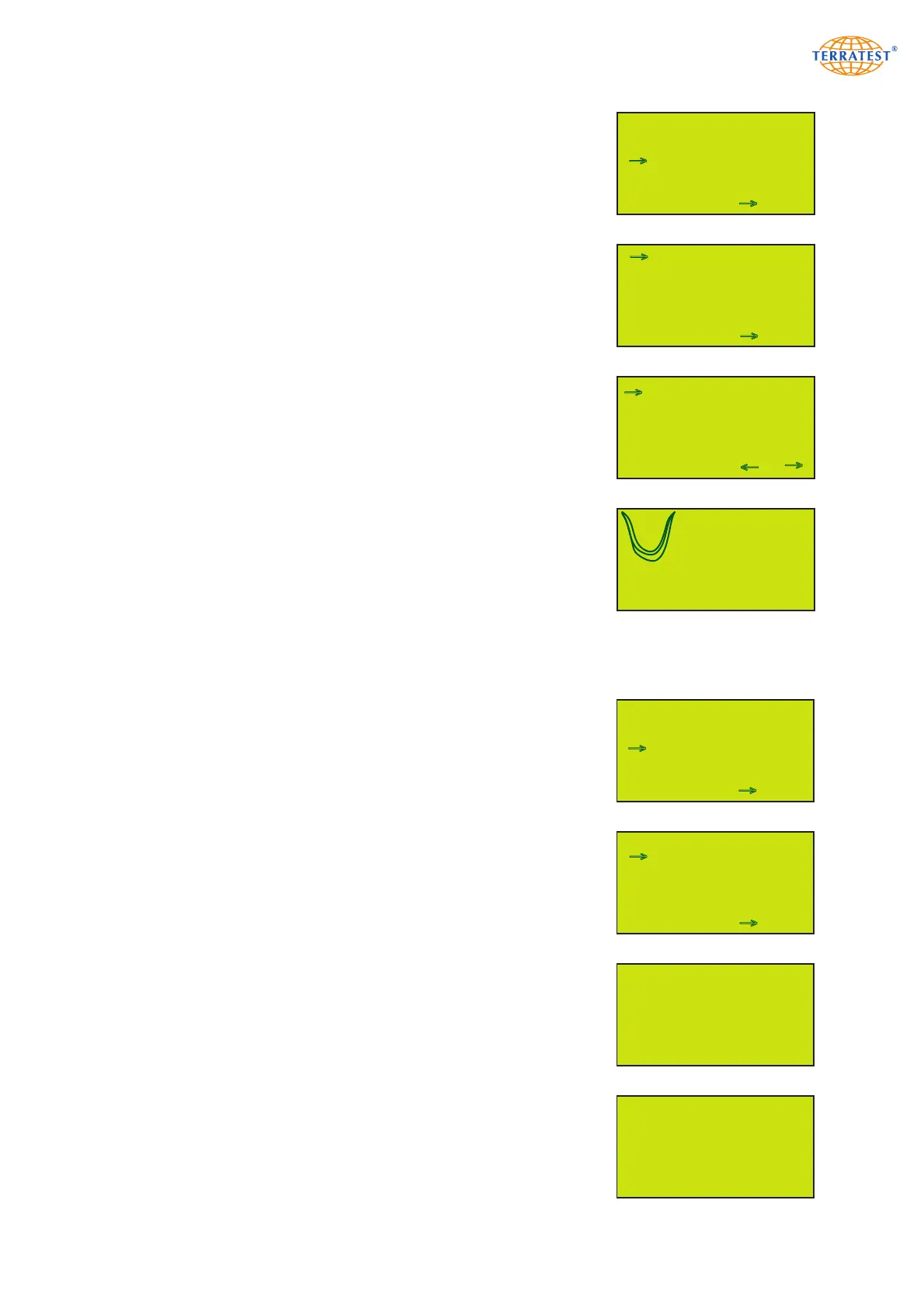

7.5.1 Printing from the Internal Memory
Turn on the device by pressing the ‘START’ button. Then enter the ‘MAIN
MENU’ by pressing the ‘SELECT’ button. Use the ‘SELECT’ button to
move the arrow and select ‘INTERNAL MEMORY’ from the menu. Press
the ‘START’ button (SET) to enter the ‘INTERNAL MEMORY’ menu.
If the arrow is positioned on ‘SELECT MEASUREMENT’, press ‘START’
(SET) to enter the ‘TEST DATA LIST’ of the internal memory. All test data
saved in the internal memory will be shown on the display, including the
consecutive data record number, date, and Evd value. Move the arrow
with the ‘START’ and ‘SELECT’ buttons to select the data record which
you would like to print. Upon pressing the ‘PRINT’ button (SHOW) the
test data of the selected test will be shown. Press the ‘PRINT’ button again
to print the corresponding test protocol. If no test data is saved in the
internal memory, ‘MEMORY IS EMPTY’ will appear on the screen for a
few seconds. The screen will then return automatically to the ‘INTERNAL
MEMORY’ menu.
Pressing the ‘RESET/OFF’ button (EXIT) will direct you back to the
‘TEST DATA LIST’. Press the ‘RESET/OFF’ button (EXIT) again to return
to the ‘INTERNAL MEMORY’ menu. Press the ‘RESET/OFF’ button (EXIT)
again to return to the ‘MAIN MENU’. Press the ‘RESET/OFF’ button (EXIT)
again to return to the ‘STATUS REQUEST’. Pressing the ‘START’ button
will start the test procedure.
7.5.2 Internal Memory to PC
Turn on the device by pressing the ‘START’ button. Enter the ‘MAIN
MENU’ by pressing the ‘SELECT’ button. Use the ‘SELECT’ button to
move the arrow and select ‘INTERNAL MEMORY’ from the menu. Press
the ‘START’ button (SET) to enter the ‘INTERNAL MEMORY’ menu.
Position the arrow on ‘SEND TO PC’ , and press the ‘START’ button(SET)
to load test data directly to ‘TERRATEST.Utility’ (refer to page 67 ff).
Establish the USB connection between the testing computer and PC by
plugging in the USB cable included in the basic package. Upon initial
connection of the testing computer to the PC the respective driver will
have to be installed from installation download ‘TERRATEST.Utility. For
details, refer to page 70 (Driver installation for testing computer). If there
is no connection to the PC, the instruction ‘PLEASE CONNECT TO USB-
PORT OF PC’ will appear on the display.
After the USB connection has successfully been established ‘PC connected’
will appear on the display.
s4=0,366mm
s5=0,364mm
s6=0,364mm
44,9 MN/m
2
s/v=2,277 ms
EXIT PRINT 2/127 NEXT
SHOW FUNCTION
