8.2.4 Test Protocol of Single Measurement

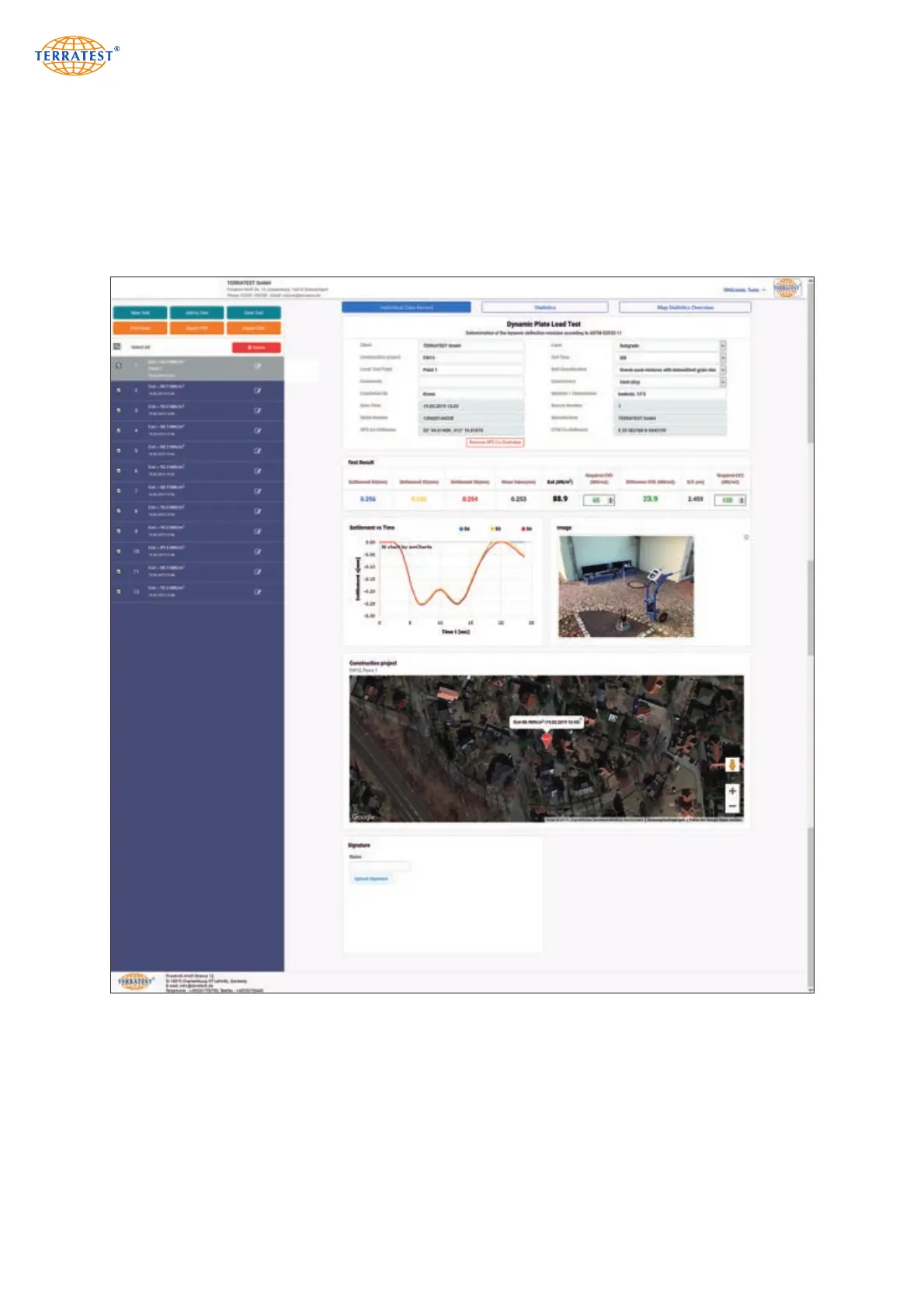

The test protocol (page 74) is subdivided into five zones:
Protocol Header with general information concerning measurement and device.
Table of Results with results and Evd value required
Settlement Curves presenting the course of time of the settlement curves as well as an optional photo-
graph of the measuring point
Google
®
Maps
®
Satellite Photograph of GPS coordinates (if available)
Signature of Responsible
All collected single measurements are contained in the data list at the left side. A satellite photograph of
the measuring point is shown for the currently selected element. The right upper zone presents the single
measurement with three settlement curves; a photograph of the measuring position can be added as well.
