To establish statistical analysis, at least two measurements are required.
The evaluation is subdivided into six zones:
Protocol Header with general information concerning measurement, construction site and device.
Table of Results with results and Evd value required, as well as GPS coordinates of the test points (if avai-
lable) and description of the test point
Statistics with required minimum quantile, arithmetic average, standard deviation, coefficient of variation,
quality value and test criterion.
Add Pictures button enables additional photographs to be loaded to the protocol. These photographs after
loading can be zoomed in or out by slider, or erased by a corresponding button above the picture.
Comments to the analysis can be added as well.
Signature of Responsible (if already present in the single protocol, it is automatically inserted).
Analysis follows the principle ‘Single Plan – Variable Check’, taking into consideration only the dynamic
deformation module Evd.
Protocol header automatically delivers device manufacturer and device number; order specific dada can
individually be entered in the white fields.

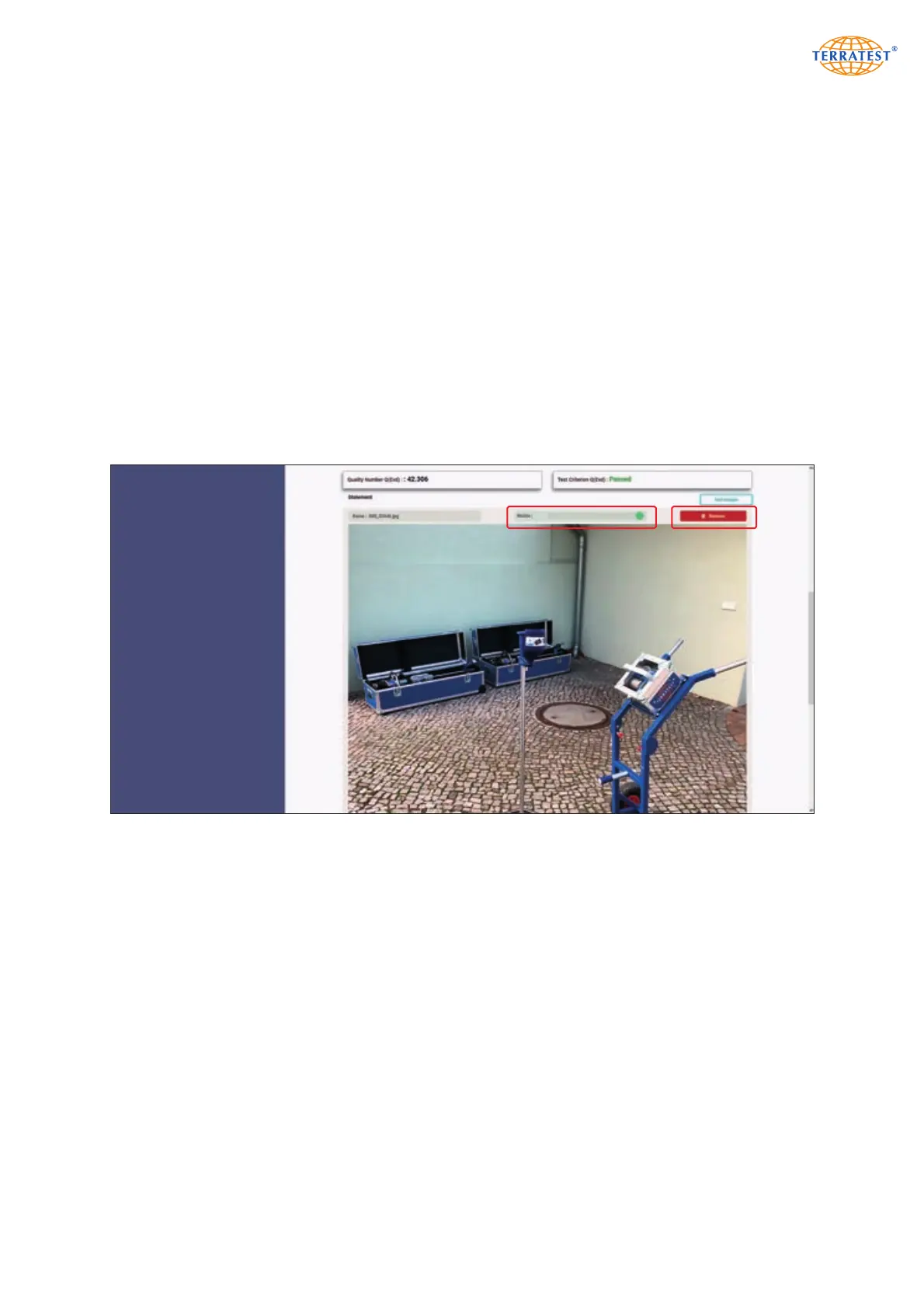

Use the slider to adapt the photograph size as desired. Illustrations can also be removed by ‘Erase’ button.
