Tescom ACT6000 - 9. Advanced Software Activation; 0. THRESHOLD LIMITS SETUP; Transmission Tests Limits (DELT and SELT mode)

ACT6000 User Guide – January 2021 Page 50 of 52
9. Advanced Software Activation to install the optional software module.
Loaded on the Pen-Drive the software key (i.e. for ASW-1/II), connecting the Pen-Drive to
the related USB ports, selecting this menu the software will be automatically activated.

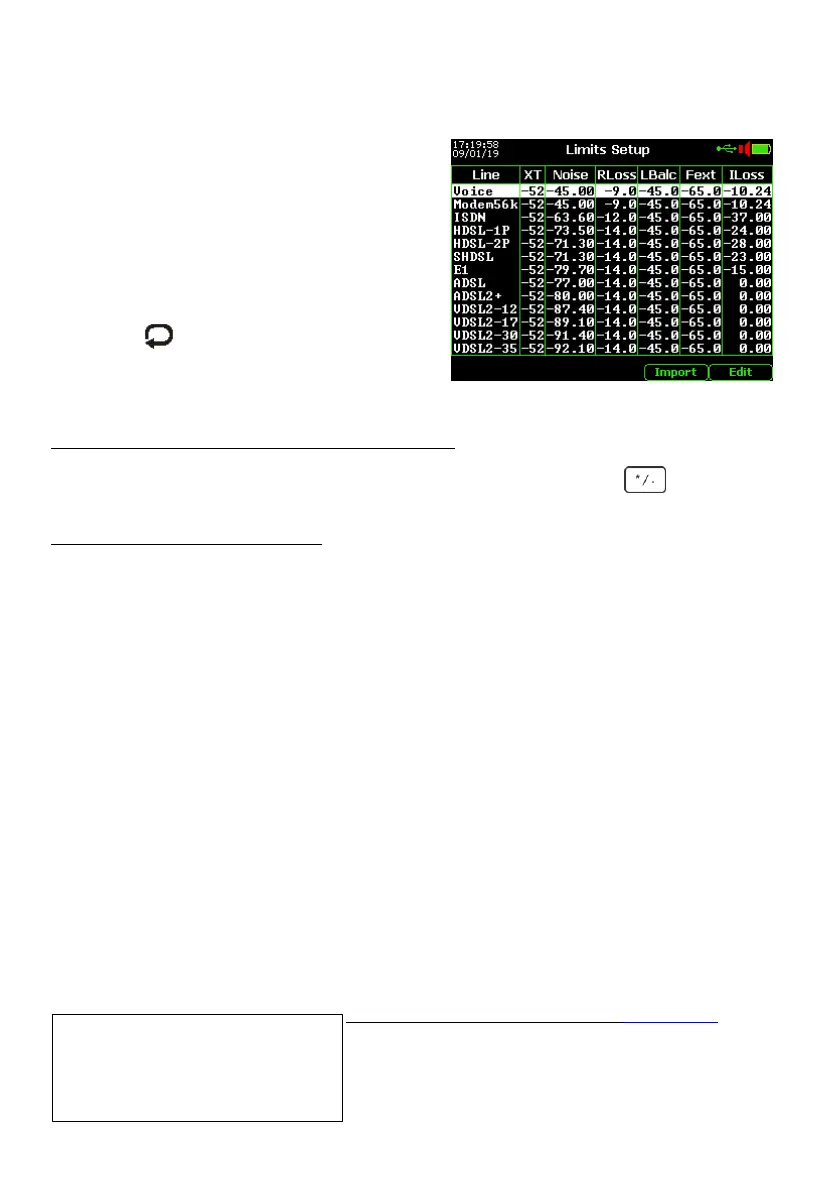

0. THRESHOLD LIMITS SETUP
This menu allows to verify or configure the
transmissive threshold limits for the SELT or
DELT measurements.
Any limit can be modified according to (when
necessary) the ranges of the of the specific test
functions declared on the technical
specifications.
Pushing the F5 “Edit” key a window appears,
then by the key and the ◄ ► arrows it
is possible to modify every parameter value.
If necessary to update the “Limits data-base” with the new one externally re-edited, i.e. by
the specific ACT6000 PC Utility (compatible with Windows XP and downloadable from
https://tescomusa.com/pages/act6000-applications), push the F4 “Import” key selecting 1
from PC or 2 from USB Pen-drive.
If desired to export the present limitdat.csv file it is enough to push the key and
select 1 from PC or 2 from USB Pen-drive.
Trasmission Tests Limits (DELT and SELT mode)
XT: -52 (cross-talk value @ 1 MHz of typical telephone cables), useful for the RMS Noise automatic calculation.
Noise VOICE / MODEM 56 K = <-45.00 dBm (integral RMS value weighed 300 – 3400 Hz)
Noise ISDN = <-63.60 dBm Total Power (integral RMS value weighed 1 – 80 kHz)
Noise HDSL1P = <-73.50 dBm Total Power (integral RMS value weighed 1 – 485 kHz)
Noise HDSL2P = <-71.30 dBm Total Power (integral RMS value weighed 1 – 296 kHz)
Noise SHSDL = <-71.30 dBm Total Power (integral RMS value weighed 1 – 300 kHz)
Noise T1/E1 = <-79.70 dBm Total Power (integral RMS value weighed 1 – 2050 kHz)
Noise ADSL = <-77.00 dBm Total Power (integral RMS value weighed 20 – 1200 kHz)
Noise ADSL2+ = <-80.00 dBm Total Power (RMS value weighed 20 – 2200 kHz)
Noise VDSL2-12 = <-87.40 dBm Total Power (RMS value weighed 20 – 12000 kHz)
Noise VDSL2-17 = <-89.10 dBm Total Power (RMS value weighed 20 – 17800 kHz)
Noise VDSL2-30 = <-91.40 dBm Total Power (RMS value weighed 20 – 30000 kHz)
Noise VDSL 35 (Plus) = <-92.10 dBm Total Power (RMS value weighed 20 – 35000 kHz)
RLoss (Return-Loss) Voice / Modem 56k = <-9.0 dB (valid for any frequency within 200 to 5000 Hz)
RLoss (Return-Loss) ISDN = <-12.0 dB (valid for any frequency within 1 to 80 kHz)
RLoss (Return-Loss) from HDS1p to VDSL-35 = <-14.0 dB (valid for any frequency within the specific selected mask/BW)
LBalc (Longitudinal Balance-Loss)= <-45 dB (valid for any frequency within the specific selected mask/BW)
Fext (Near-End and Far-end cross-talk loss) = <-65 dB (valid for any frequency within the specific selected mask/BW)
ILoss (Insertion-Loss) Voice / Modem= >-10.24 dB referred @ 1 kHz
ILoss (Insertion-Loss) Isdn = >-37.00 dB referred @ 40 kHz
ILoss (Insertion-Loss) Hdsl1p = >-24.00 dB referred @ 150 kHz
ILoss (Insertion-Loss) Hdsl2p = >-28.00 dB referred @ 150 kHz
ILoss (Insertion-Loss) Shdsl = >-23.00 dB referred @ 150 kHz
ILoss (Insertion-Loss) E1-T1 = >-15.00 dB referred @ 1024 kHz
SELT Automatic Sequence - Electric Tests Limits (not modifiable)
Vac A-B, Vac A-C, Vac B-C = <2.0 (Vac), Vdc A-B, Vdc A-C, Vdc B-C = <2.0
(Vdc)
Insulation A-B, A-C, B-C = >20 (MOhm)
Transmissive Telephone Test - DELT
- RMS Psophometric Noise: <-45 dBm
- Return-Loss: <-6 dB @ 1020 Hz
- Insertion-Loss: >-20 dB @ 1020 Hz
- SINAD: >30 dB @ 1020 Hz
