The
DATA LOGGER
data collection method lets you choose one
of four different probes:
Temp
,
Light
,
Volt
, or
Sonic
. You can use
the CBL 2/CBL with all probes; you can use the CBR only with
the
Sonic
probe.
When you select a
PROBE
option, all other options change
accordingly. Use
"
and
!
to move between the
PROBE
options. To select a probe, highlight the one you want with the
cursor keys, and then press
b
.
DATA LOGGER Options
(Defaults)
Temp Light Volt Sonic
#SAMPLES: 99 99 99 50
INTRVL (SEC): 1 1 1 1
UNITS:
¡
C
or
¡
FmW
à
cm
2
Volt m
or
Ft
PLOT: RealTme
or
End
DIRECTNS: On
or
Off
Ymin
(
'
):
0
Ymax
(
'
):
6
The
DATA LOGGER
data collection results are represented as a
Temp-Time, Light-Time, Volt-Time, or Distance-Time graph.
Probe-Time Graph
#SAMPLES
#SAMPLES
refers to how many data samples are collected and
then graphed. For example, if
#SAMPLES=99
, data collection
stops after the 99
th
sample is collected. Enter values using the
number keys.

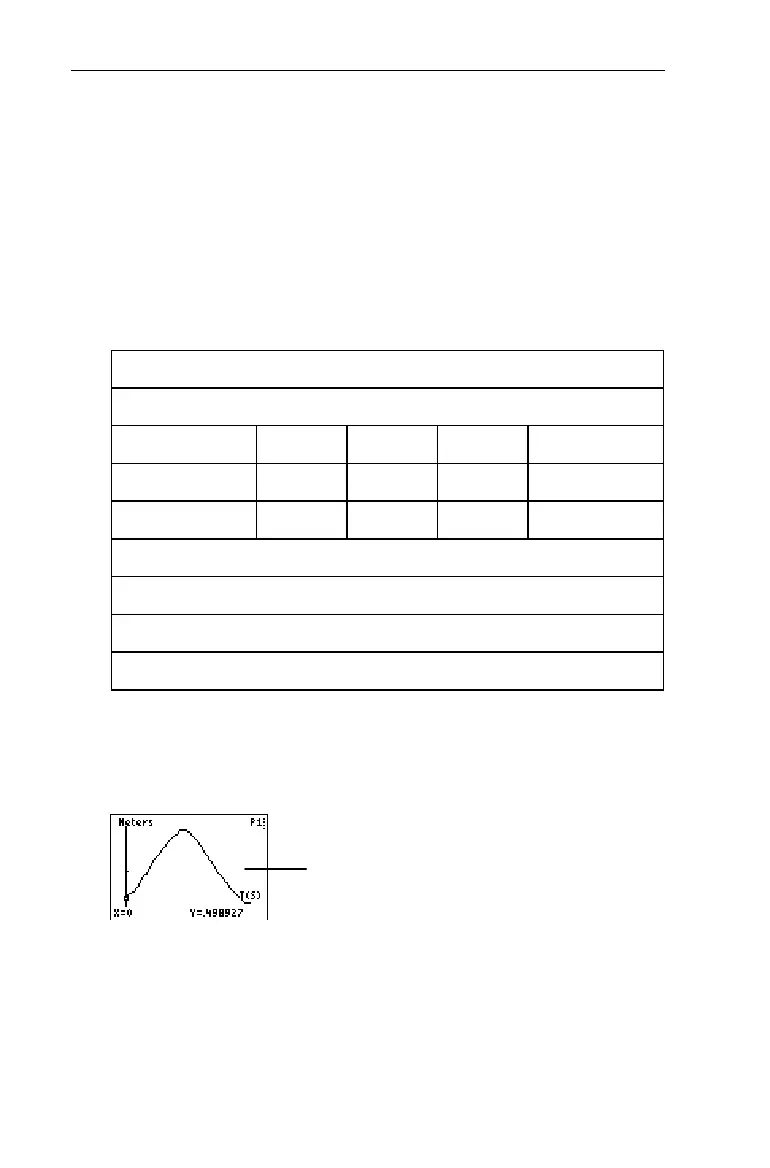

A Distance-Time graph in
meters (
Sonic
probe).
