Premier 24
Installation Manual
Installation
INS248
9

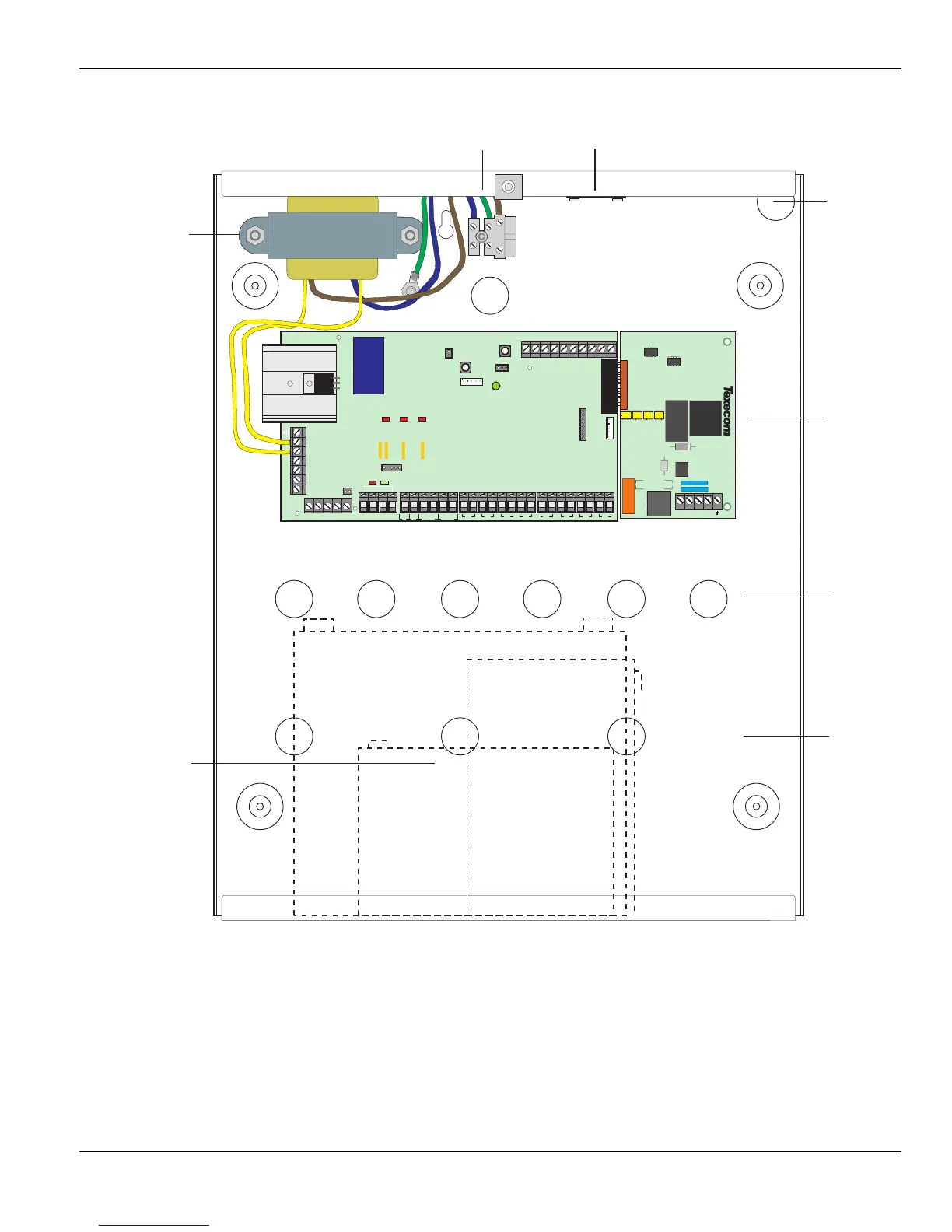

Control Panel Layo
ut
Mains
T
ransformer
Control P
anel
Circuit Board
Space for
1
2 x 7Ah Batteries
or 1 x 17Ah Battery
x 7Ah Battery
Cable
Entries
Plug-on
Digimodem
(
or
Com300,
Com2400
ComISDN)
Mains T
erminal
Block & Cable Entry
T
amper
Switch
Cable
Entries
BT
Cable
Entry
T
R
T1
R1
Com 1
Load Defaults
Panel Outputs
Spk
-
+Aux-
T
amper
Disable
Kick
Start
Engineer
Remote
Tx
Rx
A.C
.
+Batt-
12V
Aux T
amp
Bell
Network
Aux 12V
Com 2
Network
SK1
Digi Modem
Strb
0V
TampBell
+12V
-
TR
+
Z1
Z2
Z3
Z4
Z5
Z6
Z7
Z8
F2
Fault
F3
Fault
F4
Fault
DC-
DC+
Pg1
7
8
5
6
3
4
1
2L
/
M
R/R
Bell+12V
Enable
8
10
Table of Contents
Contents
2
Table of Contents
2
1 History
4
2 System Overview
5
System Architecture
5
Control Panel
5
Remote Keypads
5
Zone Expanders
6
Output Expander
6
Communicators
6
Other Devices
7
3 Installation
8
Installation Sequence
8
Control Panel
8
Power Supply Ratings
11
Connecting AC Mains
12
Connecting Batteries
12
Connecting Devices to the Network
13
Remote Keypads
15
4XP Zone Expander
16
Iprox Module
16
8XE Zone Expander
17
8XP Zone Expander
18
24Xid Zone Expander
19
OP16 Output Expander
20
Zone Connections
21
Auxiliary Tamper Connections
22
Speaker Connections
22
External Sounder Connections
23
Panel Outputs 1 - 8 and
24
Wiring a Stand Alone Communicator
24
Plug-On Digimodems
25
RP9 Radio-Pad
26
PC-Com
26
UNI-Com
26
PRINT-Com
26
GSM-Com
26
Connecting a Computer
27
Connecting a Printer
27
4 Commissioning and Troubleshooting
28
Commissioning
28
Trouble-Shooting
28
Reset and Service Messages
30
5 Programming the Control Panel
31
Introduction
31
Programming Menu Guide
32
Programming Text
33
Log off Engineer
33
Reset the Engineers Code (User 00)
33
Zone Setup
34
Zone Types
35
Zone Attributes 1
36
Zone Attributes 2
36
Attributes for Moment or Latch Keys
37
Zone Text
37
Zone Wiring Type
37
Arming Options
39
Timers
39
Arming Modes
40
Options
40
Options 1
41
Options 2
41
Options 3
42
DD 243:2002 Options
42
Global Options
43
System Timers
43
System Config
44
System Options
47
Monitor Hardware
47
Control Timers
48
System Text
48
Speaker Tones
49
Keypad Setup
50
Keypad Zone Mapping
51
Keypad Options
51
Keypad Speaker Volume
51
Keypad Sounder Options
51
Expander Setup
52
Expander Auxiliary Input
53
Expander Speaker Volume
53
Expander Sounder Options
53
System Outputs
54
Available Outputs
55
Programming Outputs
55
Output Group - Not Used
55
Output Group - System
55
Output Group - Alarm
57
Output Group - Zone
59
Output Attributes
59
Custom Output (PGM5-8)
59
Udl/Digi Options
60
Reset Digi
60
Start Test Call
60
Program Digi
61
Digi Options
64
UDL Options
65
Radio/Sms Options
67
Com Port Setup
67
Zone Alarm Reporting Codes
68
Setup Users
73
Adding New Users to the System
74
Programming New Users
74
User Types
74
User Options
75
User Name Text
75
Programming Proximity TAGS
75
Deleting User Codes
75
Available Options
76
Engineer Utilities
77
View Event Log
77
Do Bell Test
79
Do Walk Test
79
View Zone Status
80
View System Status
80
Confirm Devices
80
View RKP Status
81
Check Exp. Status
81
Set System Time
81
Set System Date
81
Change Eng. Code
82
View ID Status
82
Print Log
82
Configure Radio
83
Programming Part Arms
84
Alter Part Arms
84
6 Specifications
85
Control Panel
85
Remote Keypads
86
Zone Expanders
86
Output Expanders
87
Communicators
87
Standards
88
Warranty
88
Declaration of Conformity
89
Technical Support
92
