Appendix A: Specifications, Racking, and Cabling for the V6000 and V6100
Rack Mounting Instructions
DSM Installation and Configuration Guide
Copyright 2009 - 2020 Thales Group. All rights reserved.
129

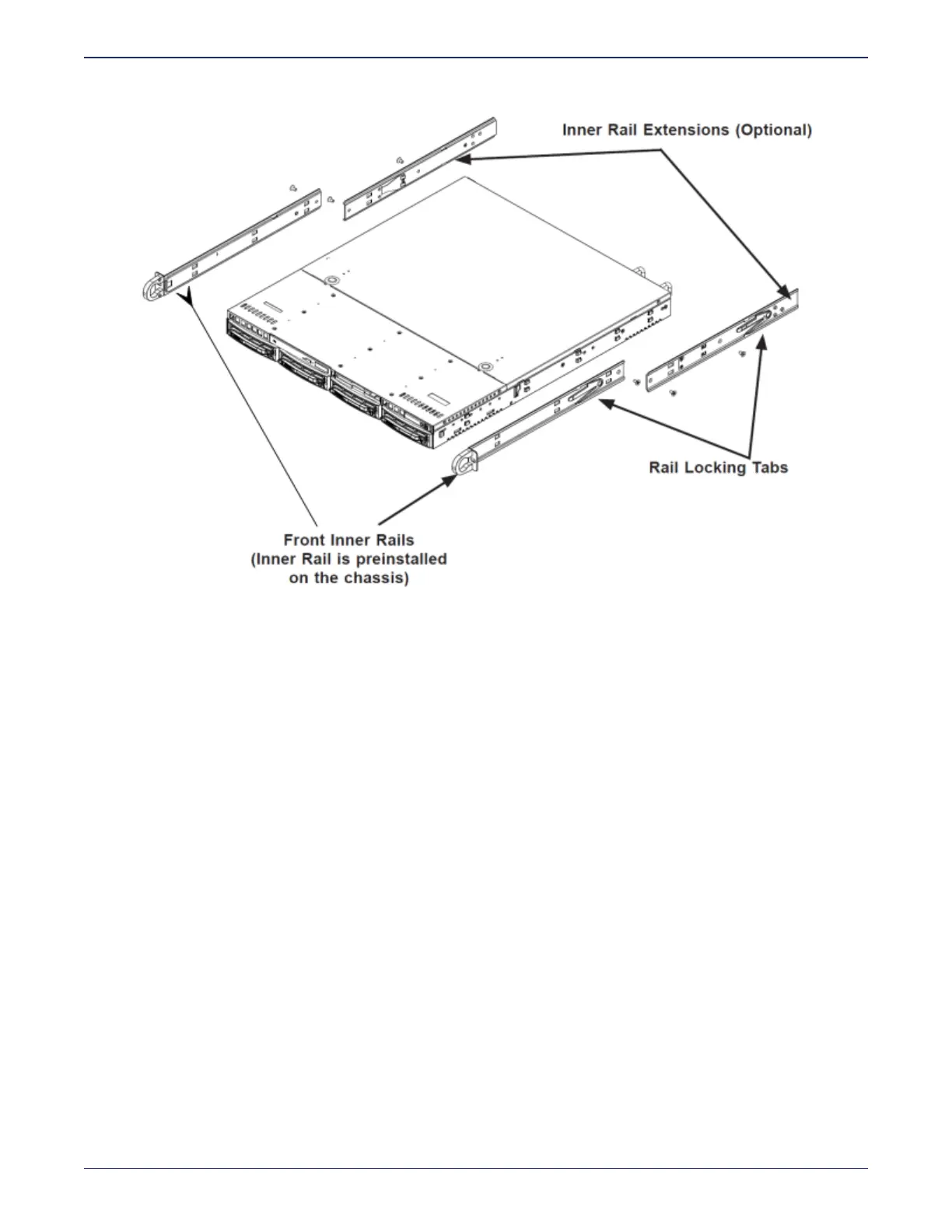

Figure A-5: Identifying the Sections of the Rack Rails
Locking tabs
Both chassis rails have a locking tab. The tabs lock the server into place when installed and pushed fully into the rack.
These tabs also lock the server in place when fully extended from the rack. This prevents the server from coming
completely out of the rack when you pull it out for servicing.
