Thecus N7510 User Manual

129

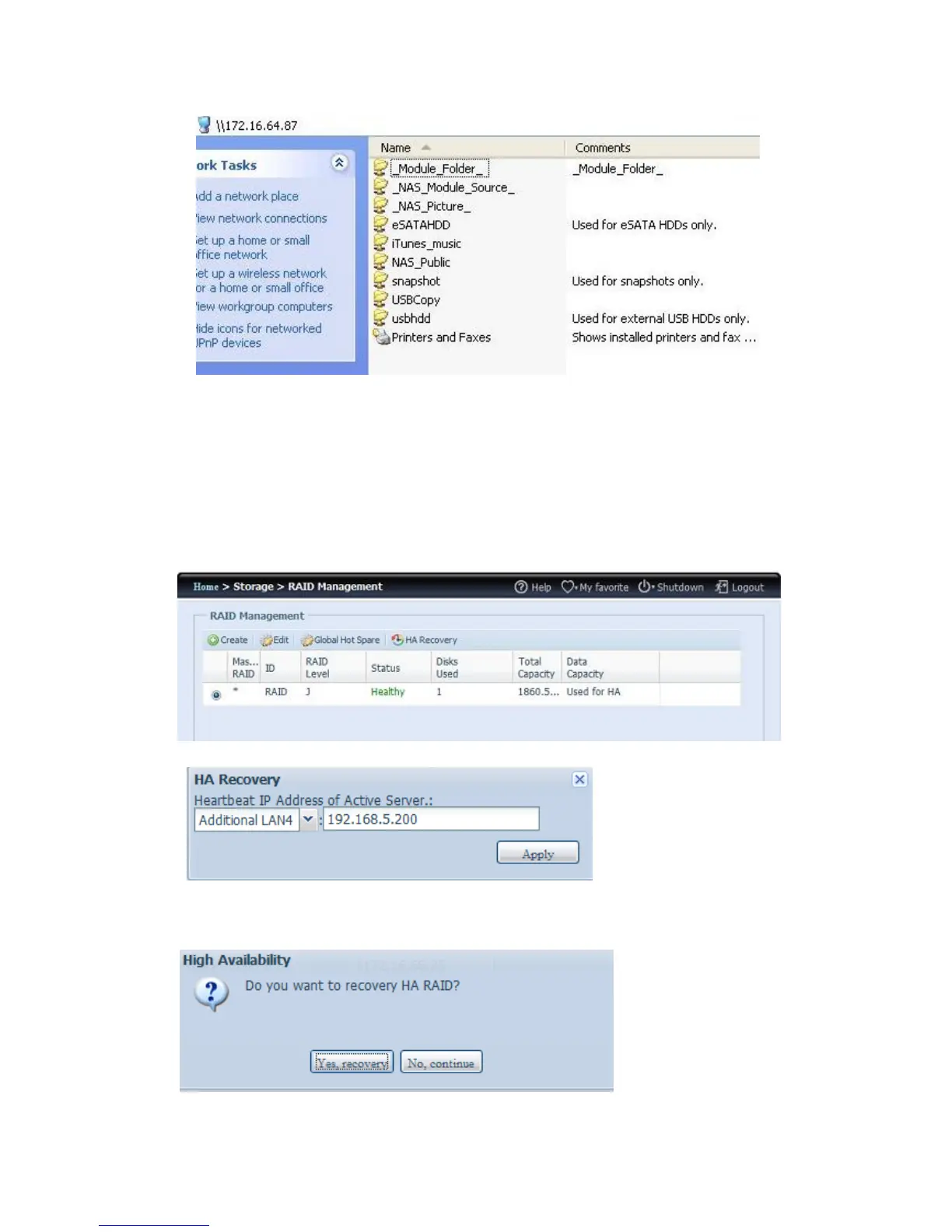

HA Recovery:
If one of the HA member is down and need to be recovered, simply go to the RAID
management page and the “HA Recovery” icon will be available.
Click on the “HA Recovery” icon, then the system will prompt a box to inquire about
the Active server heartbeat link IP address. After inputting the IP address and
pressing Apply, the unit will be recovered fully.
Another circumstance where HA recovery might be needed is when the HA button
has been enable but the system detected a previously existing HA configuration.
Then the screen will prompt the message box as shown below:

Thecus N7510 Specifications

General

RAID levels	0, 1, 5, 6, 10, 50, JBOD
Hot-swap drive bays	Yes
Storage drive capacity	- GB
Supported file systems	ext3, ext4, XFS
Storage drive interface	Serial ATA
Total installed storage capacity	- TB
Number of storage drives installed	-
Number of storage drives supported	7
Internal memory	2 GB
Internal memory type	DDR3
Processor family	Intel Atom®
Number of processors installed	1
Data link protocols	TCP/IP/AppleTalk
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP
I/O ports	1 x mic 1 x line-in 1 x audio out
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista/ 7 UNIX/Linux Mac OS X
Security algorithms	256-bit AES
Cables included	AC
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2
Bundled software	Acronis True Image Thecus Backup Utility
Display type	LCD
Product color	Black, Silver
Power supply unit (PSU) capacity	300 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Sustainability certificates	RoHS
Certification	CE/FCC/C-Tick/VCCI/BSMI VMware, Citrix, WEEE

Weight and Dimensions

Depth	270 mm
Width	210 mm
Height	320 mm
Weight	8400 g
