Thecus N7510 User Manual

169

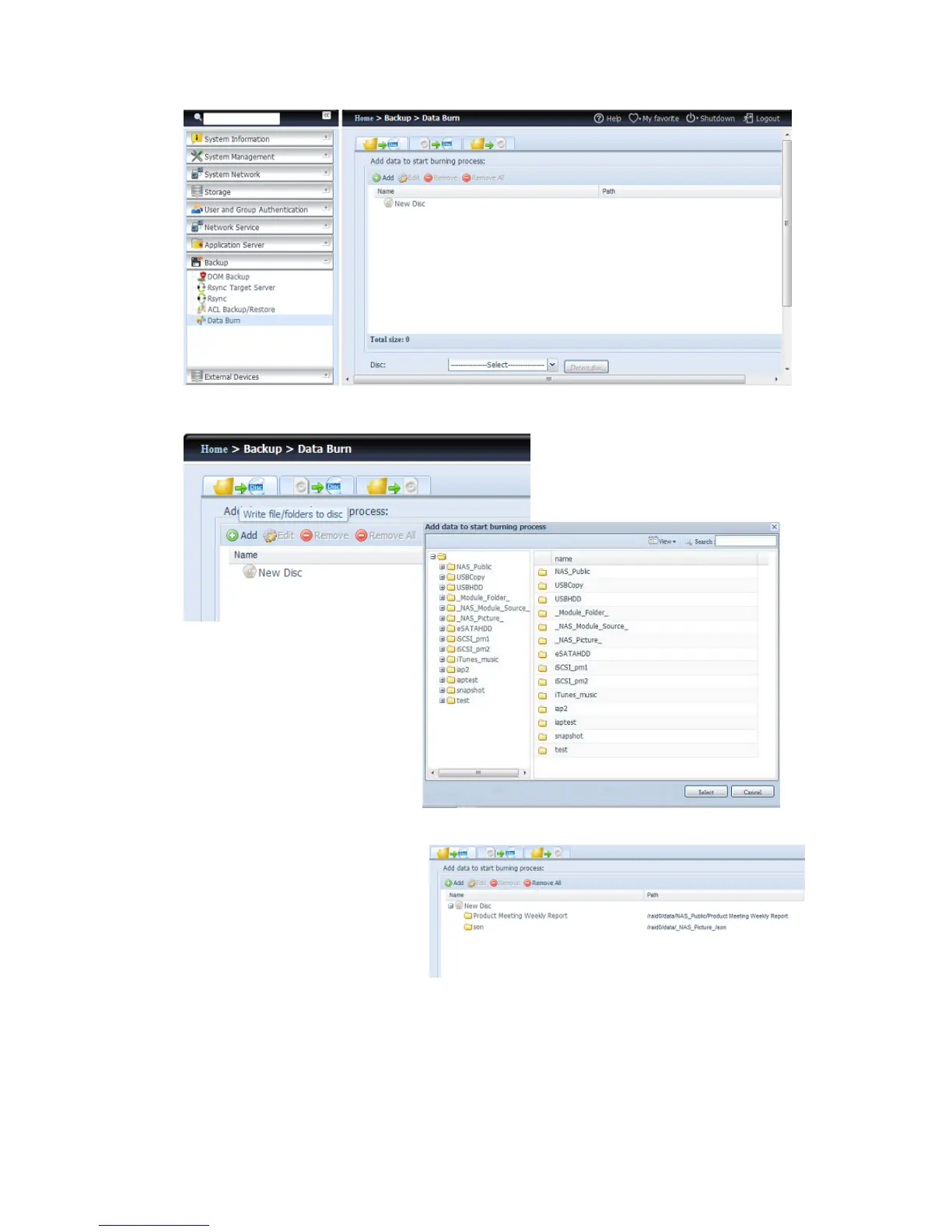

1. Write Files/folders to disc
a. Click the Add button and the NAS share list appears.
b. Select files/folders
which you would like to
burn. All of the selected
folders/files will be seen
under the disc label
name “New Disc”. The
disc label name can be
changed by clicking on
it and press “Edit” from menu bar. The selected folders/files also can be
removed by clicking on them and then pressing “remove” or “remove all”
for all selected items.
c. Select from the installed USB or SATA(for N6850/N8850/N10850) burning
devices. Please click the “detect disc” button to check the status once the
disc is inserted.

Thecus N7510 Specifications

General

RAID levels	0, 1, 5, 6, 10, 50, JBOD
Hot-swap drive bays	Yes
Storage drive capacity	- GB
Supported file systems	ext3, ext4, XFS
Storage drive interface	Serial ATA
Total installed storage capacity	- TB
Number of storage drives installed	-
Number of storage drives supported	7
Internal memory	2 GB
Internal memory type	DDR3
Processor family	Intel Atom®
Number of processors installed	1
Data link protocols	TCP/IP/AppleTalk
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Supported network protocols	SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP
I/O ports	1 x mic 1 x line-in 1 x audio out
Networking features	Gigabit Ethernet
Compatible operating systems	Windows 2000/XP/2003/Vista/ 7 UNIX/Linux Mac OS X
Security algorithms	256-bit AES
Cables included	AC
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	2
Bundled software	Acronis True Image Thecus Backup Utility
Display type	LCD
Product color	Black, Silver
Power supply unit (PSU) capacity	300 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	0 - 80 %
Sustainability certificates	RoHS
Certification	CE/FCC/C-Tick/VCCI/BSMI VMware, Citrix, WEEE

Weight and Dimensions

Depth	270 mm
Width	210 mm
Height	320 mm
Weight	8400 g
