7 OVERVIEW

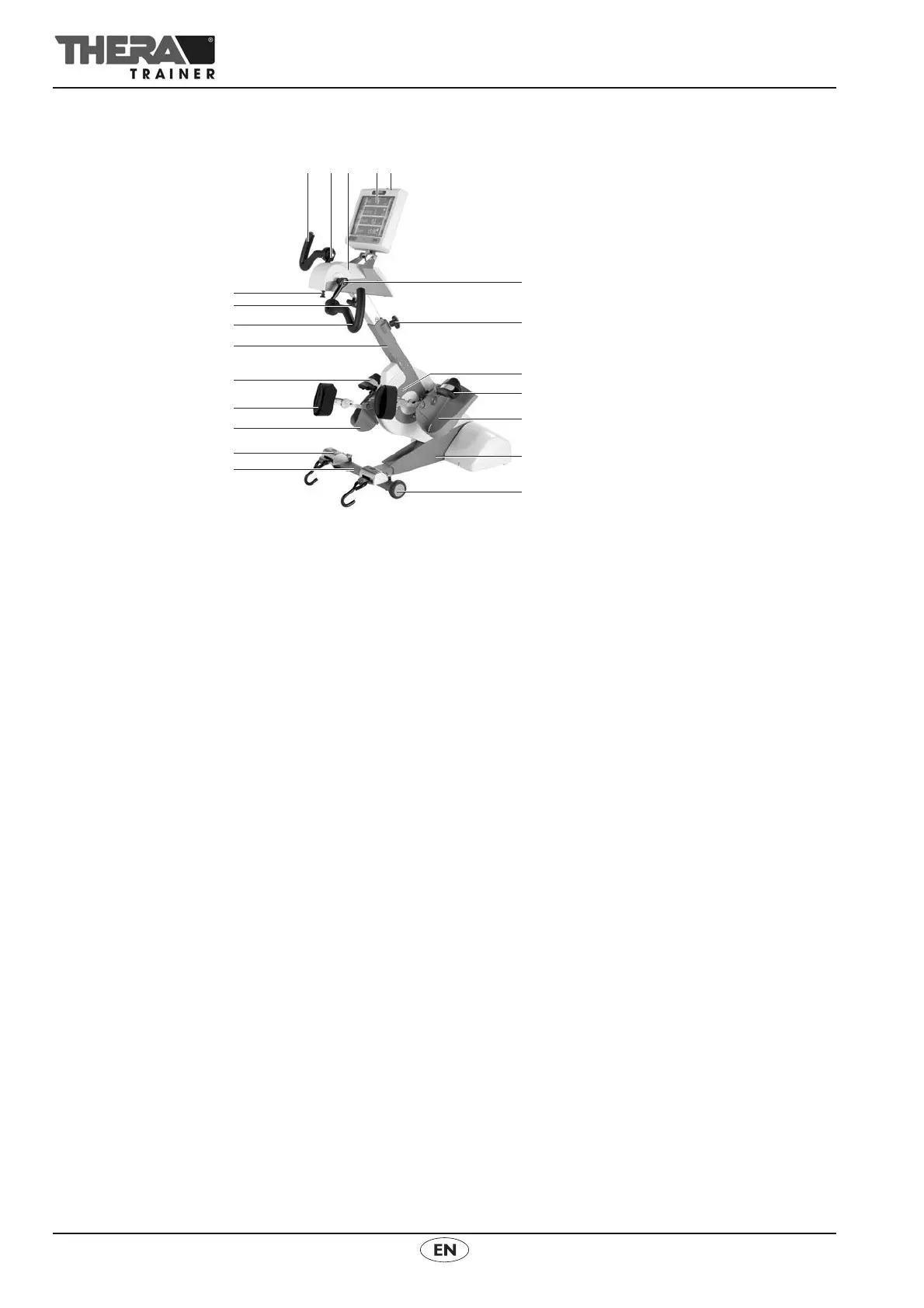

(1) Therapy grips
(2) Crank (application part Type BF)
(3) Upper body exerciser
(4) Control and display unit with 7" colour screen
(5) USB interface
(6) Locking-pin handle for height adjustment of safety handle/upper
body exerciser
(7) Adjustment of inclination for safety handle/upper body exerciser
(8) Foot fixing
(9) Foot rest (application part type BF)
(10) Base unit
(11) Transport castor
(12) Device base with transport castors
(13) Self-operated tip-up protection
(14) Leg support
(15) Supporting arm pipe for safety handle/upper body exerciser
(16) Star-shaped handle for horizontal adjustment of safety handle/upper
body exerciser
(17) Lock button for upper body exerciser
Note The equipment variants of the THERA-Trainer offer different equipment variants.
The mode of operation of the movement training is not changed through these
different equipment variants. The contents (such as safety instructions, intended
use, foreseeable misuse) of this user manual are valid for all equipment variants
of the type THERA-Trainer tigo and THERA-Trainer veho.
