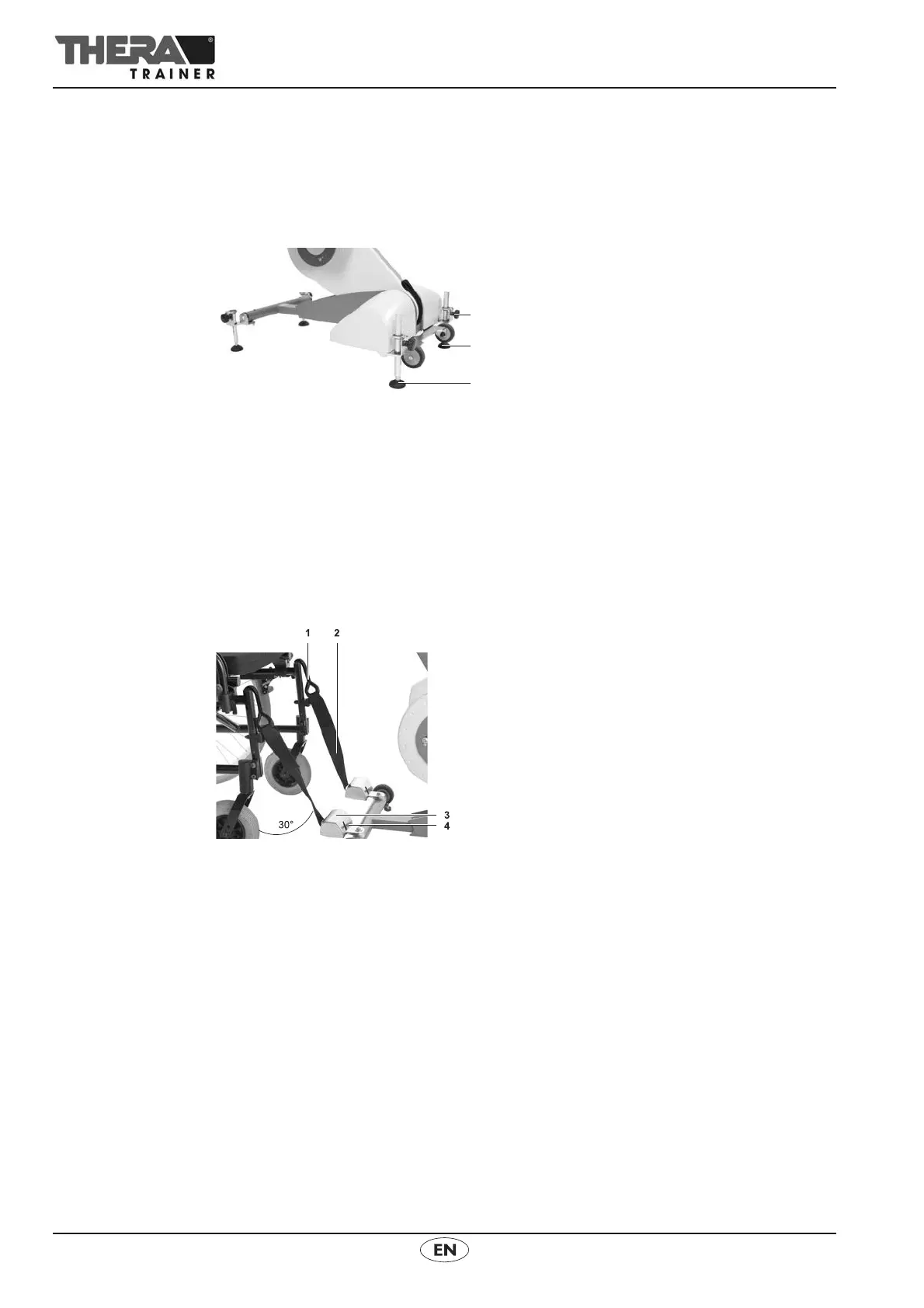

Height-adjustable device base with wheel set
Note It is possible to adjust THERA-Trainer to a height of between 50 and 150 mm
without tools.
To reduce the distance between the user and the foot rests further, you can set
the front and rear of the device to different heights.
To adapt height of THERA-Trainer to seat height:
Release locking-pin handle 1.
Tilt THERA-Trainer and relieve rubber foot 2.
Pull out locking-pin handle 1 and set rubber foot 2 to required height.
Make sure that locking-pin handle 1 latches.
Tighten locking-pin handle 1.
Repeat with the other rubber feet.
9.3 Self-operated tip-up protection
To prevent the chair/wheelchair from tipping up during the training session,
attach the self-operated tip-up protection as follows:
Move chair/wheelchair in training position in front of THERA-Trainer.
Push down red lever 4 on self-operated tip-up protection 3.
Pull out belt 2 by hook 1.
Attach hook to a stable part of the chair/wheelchair frame at an angle
of approx. 30°.
Make sure that hook is safely attached.
The belt will tighten automatically.
Release self-operated tip-up protection as follows:
Push down red lever 4 on self-operated tip-up protection 3.
Pull up the hook and unhook it from chair/wheelchair frame.
Let belt retract completely.
