Setting distance of upper body exerciser
To set the distance:

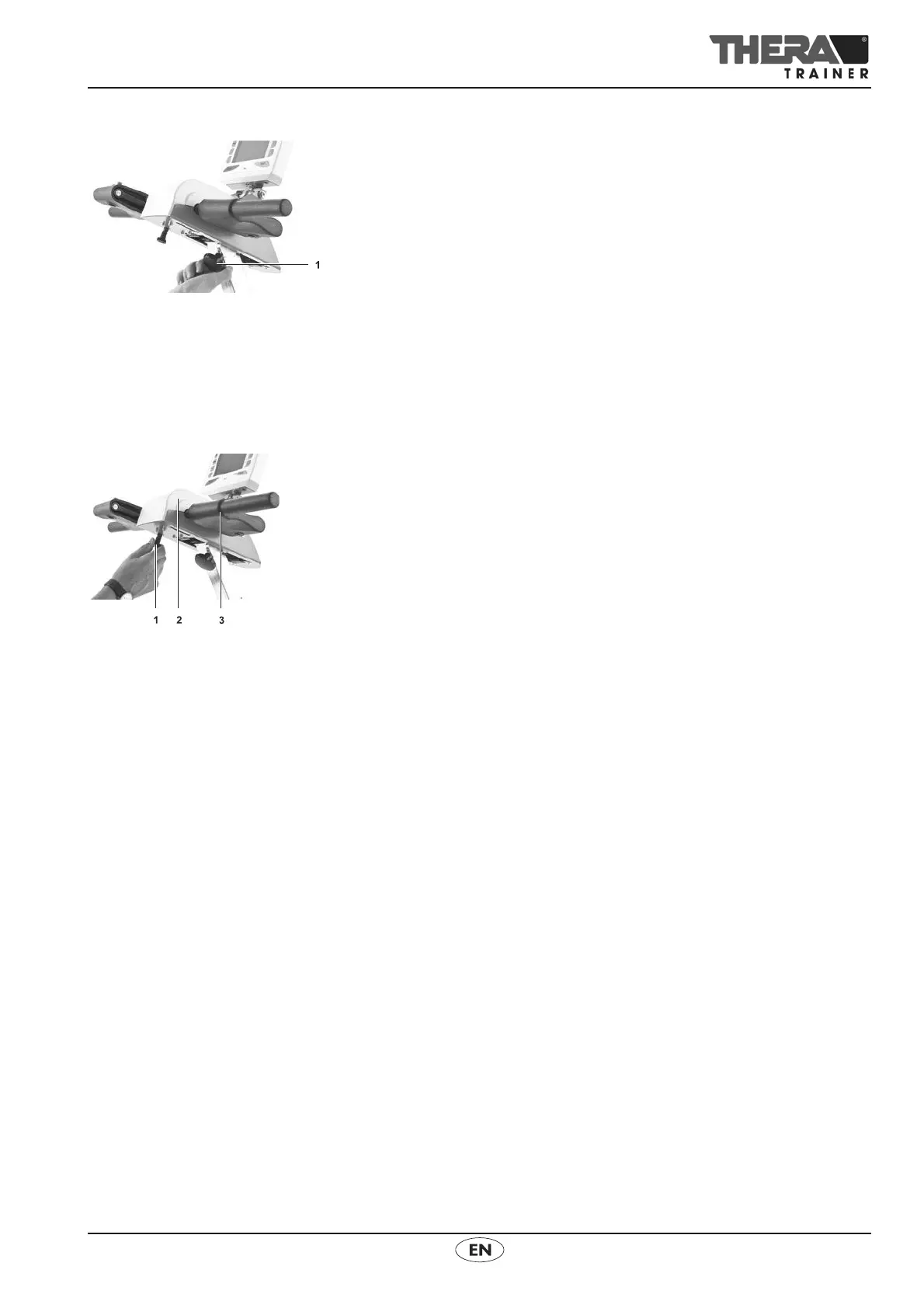

Loosen star-shaped handle 1 below upper body exerciser.
Put upper body exerciser in required horizontal position.
Tighten star-shaped handle.
9.6 Locking/unlocking the crank
NoteThe cranks are locked when using the THERA-Trainer tigo as a leg exerciser
to serve as a safety handle for the user. For this purpose, install grip adapter 3.
When using the THERA-Trainer as an upper body exerciser, the therapy grips
or arm rests must be installed and the crank unlocked.
To lock cranks:
Pull out lock button 1 on lower side of upper body exerciser 2.
Turn lock button by 90° and let go.
Turn crank so that it is in horizontal position.
Make sure that lock button audibly clicks into place.
Make sure that crank locks audibly and does not move any more.
Crank is locked
To unlock crank:
Pull out lock button on lower side of upper body exerciser.
Turn lock button by 90° and let go.
Crank is unlocked.
