Short crank
 recommended for spasticities and contractures in the upper body.
 required when using the upper body exerciser.
 length approx. 75 mm.
Long crank
 recommended for muscle weakness and lack of coordination of the upper
body.
 required when using the upper body exerciser.
 length approx. 110 mm.
Safety handle 2
 Provides the user with safe support during training (e.g. for active training,
spasticities or lack of upper body stability).
 Height and inclination of the safety handle are adjustable.
 The safety handle is equipped with an anti-slip handle made of foam rubber.
 Short safety handle:
The short handle is especially suitable for users with a short upper body
or a low seating position. The height setting is lower than the safety handle
(see Setting height of upper body exerciser/safety handle).

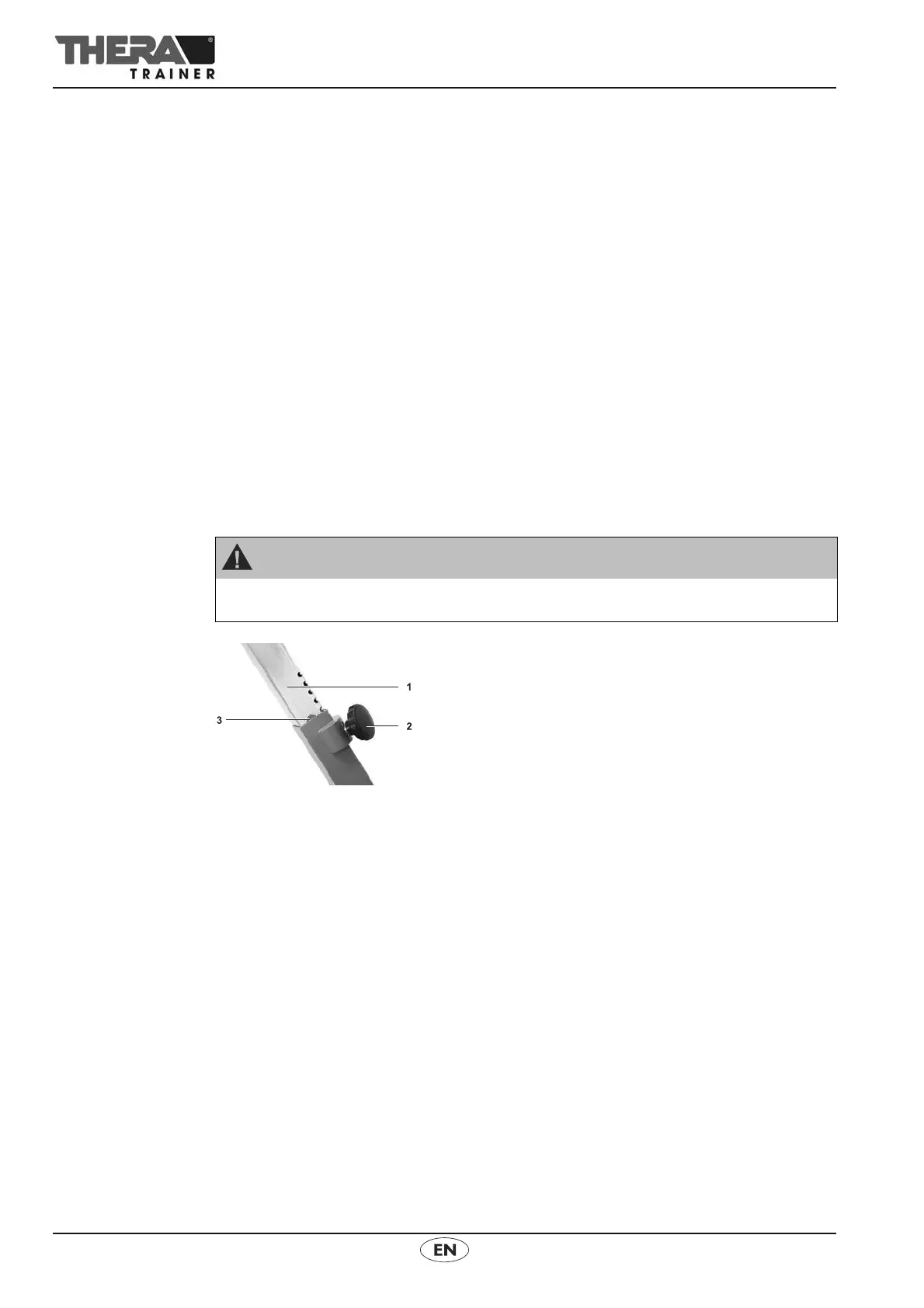

Setting height of upper body exerciser/safety handle
To adapt upper body exerciser/safety handle individually to body size and
sitting position:
 Loosen locking-pin handle 2 on pipe 1 by approx. one rotation.
 Pull up upper body exerciser/safety handle and relieve locking-pin handle.
 Pull out locking-pin handle.
 Set height of body exerciser/safety handle so that crank axis is at shoulder
height.
 Pull out supporting arm pipe until centre of STOP mark 3 at a maximum.
 Make sure that the height of body exerciser/safety handle is set so that
the knees do not collide with the body exerciser/safety handle.
 Let go of locking-pin handle.
 Make sure that locking-pin handle latches.
 Tighten locking-pin handle.
Adjustment ranges:
 Upper body exerciser/safety handle: 91.5 cm - 100.5 cm
 Short upper body exerciser/short safety handle: 87 cm - 94 cm
CAUTION!
Risk of crushing!
 Take care not to pinch any fingers when pushing the pipes together.
