Adjust the setting as follows:
Remove power plug from power socket.
Make sure that feet are not in foot rests.
Unscrew screws 1 using a suitable tool.
– right-hand crank = right-hand thread, unscrew screws in anti-clockwise
direction
– left-hand crank = left-hand thread, unscrew screws in clockwise direction
Set crank radius on right-hand and left-hand crank to 75 mm or 110 mm.
Tighten screws with thread locking adhesive (Loctite 243).
Foot rests with stepless radius adjustment
Note The stepless radius adjustment is designed for users with limited joint mobility
(contractures). Stepless radius adjustment enables every user to reach an
individual range of motion depending on their mobility.

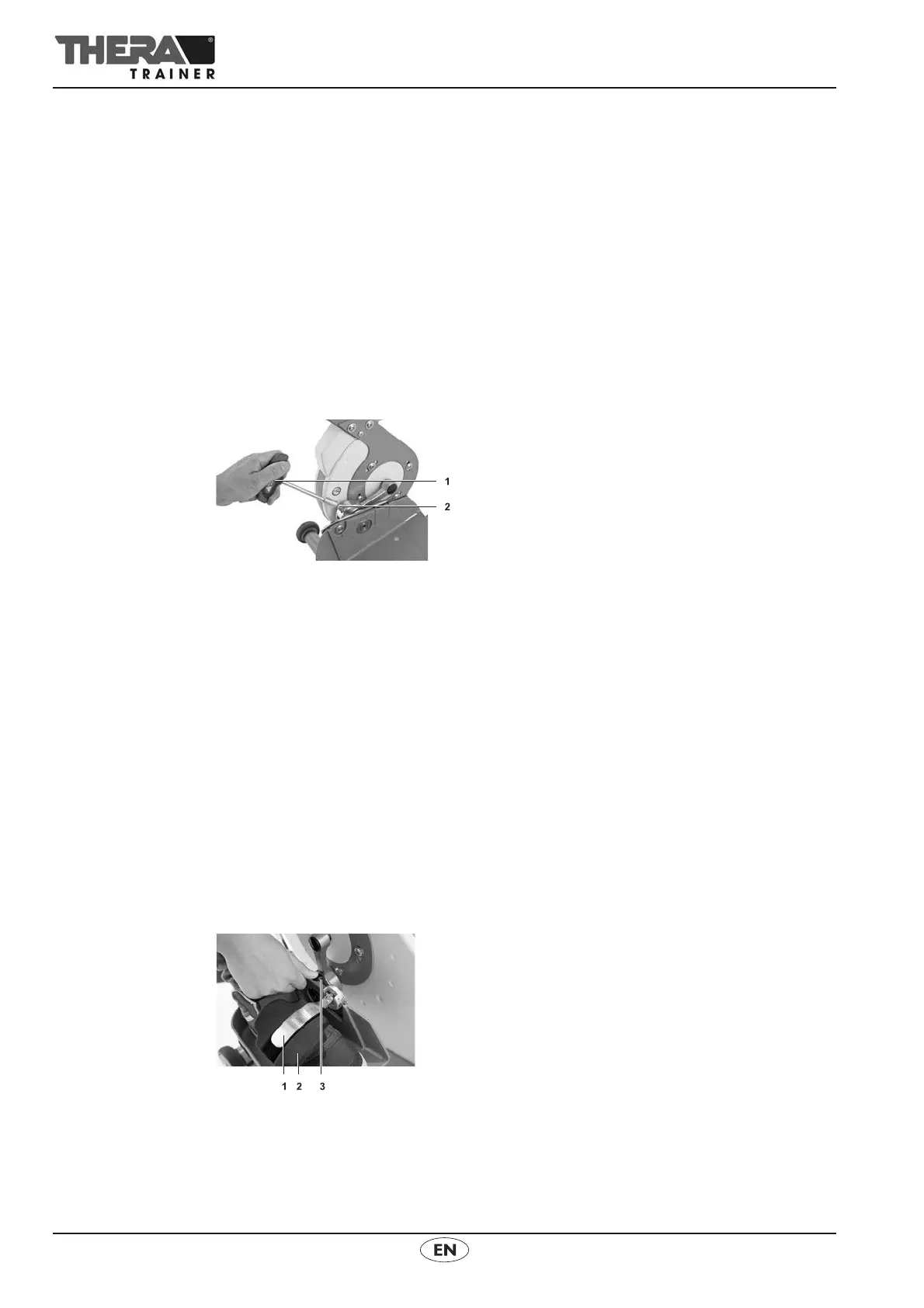

Set stepless crank radius as follows:
Remove power plug from power socket.
Make sure that feet are not in foot rests.
Loosen retaining screws 2 of the radius adjustment system with the T-key 1
provided.
Set crank radius on right-hand and left-hand crank as required (65-115 mm).
Tighten safety screws.
Before every training session, make sure that retaining screw is securely
tightened.
Note It is possible to set different lengths for the right-hand and left-hand crank,
e.g. if the user has legs of different length or different levels of mobility.
When using biofeedback, meaningful symmetry evaluation is not possible.
Foot fixing
Note For unassisted, quick and simple securing of feet in foot rests (e.g. in case
of paralysis, spasticity, etc.).
Secure feet in foot rests as follows:
Make sure that the THERA-Trainer is not in training mode.
Press release lever 3 on foot fixing 2.
