THERA-Trainer tigo / THERA-Trainer veho - User manual
Joint forces
in kg
(1) Position 1 = radius adjustment 6.5 cm
(2) Position 2 = radius adjustment 7.5 cm
(3) Position 3 = radius adjustment 8.5 cm
(4) Position 4 = radius adjustment 9.5 cm
(5) Position 5 = radius adjustment 10.5 cm
(6) Position 6 = radius adjustment 11.5 cm

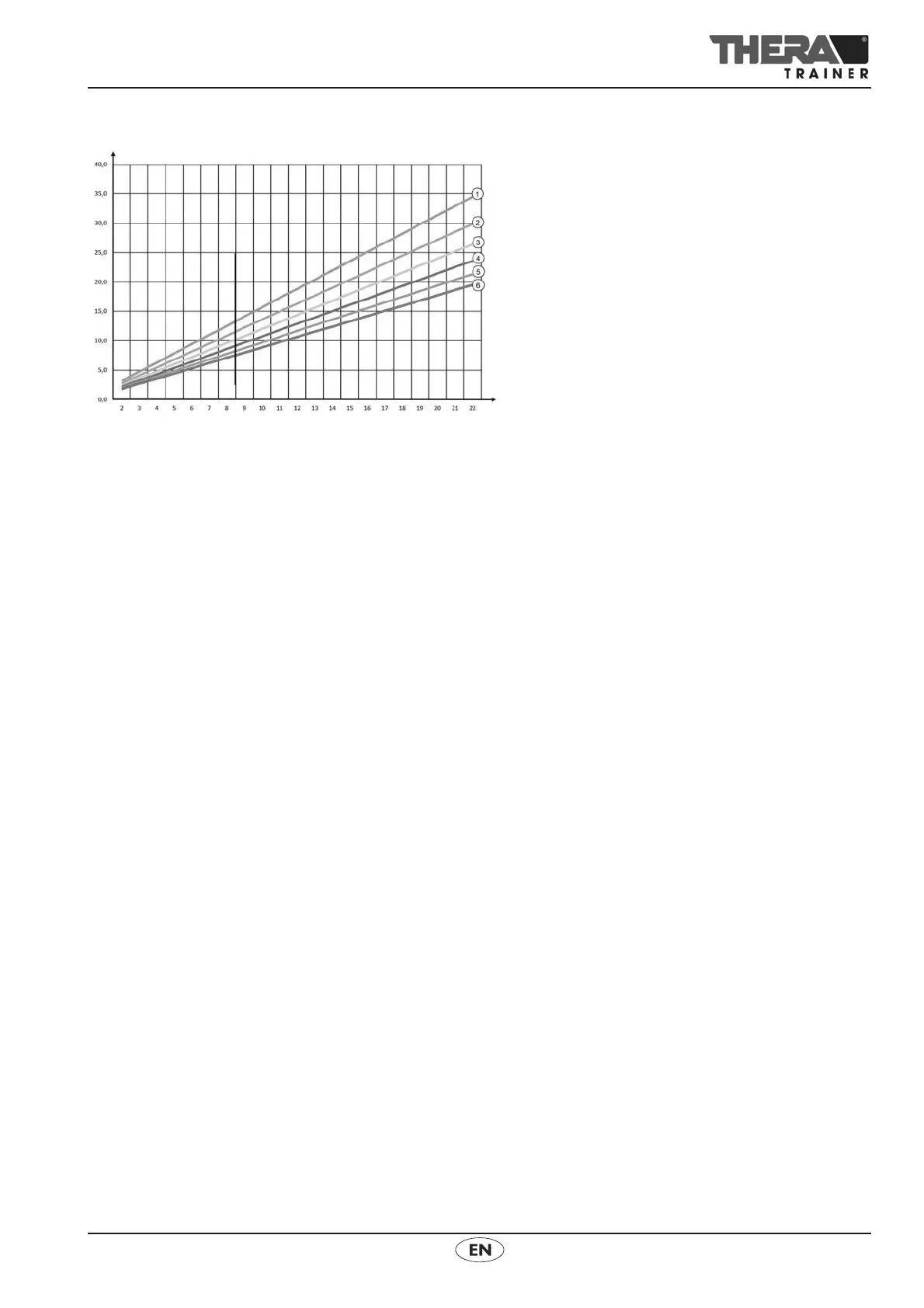

The diagram shows the joint forces acting on the user in dependence on the motor
power setting and radius adjustment.
M = torque (power) of the motor
 - = marks of stepless radius adjustment
  = very small radius, for a 2-stepped radius adjustment roughly corresponds
to mark 2
  = very large radius, for a 2-stepped radius adjustment roughly corresponds
to mark 6
Upper body exercise
 For upper body training, observe marks
 and .
  = long crank (110 mm)
  = short crank (75 mm)
Before every training session:
 Consult therapist or doctor regarding the joint forces admissible for/acting
on the user.
 Set crank length and motor power accordingly.
M (Nm)
