Thermal Dynamics CUTMASTER 60i Service Manual

CUTMASTER 60i
SERVICE Manual 0-5475
5-14

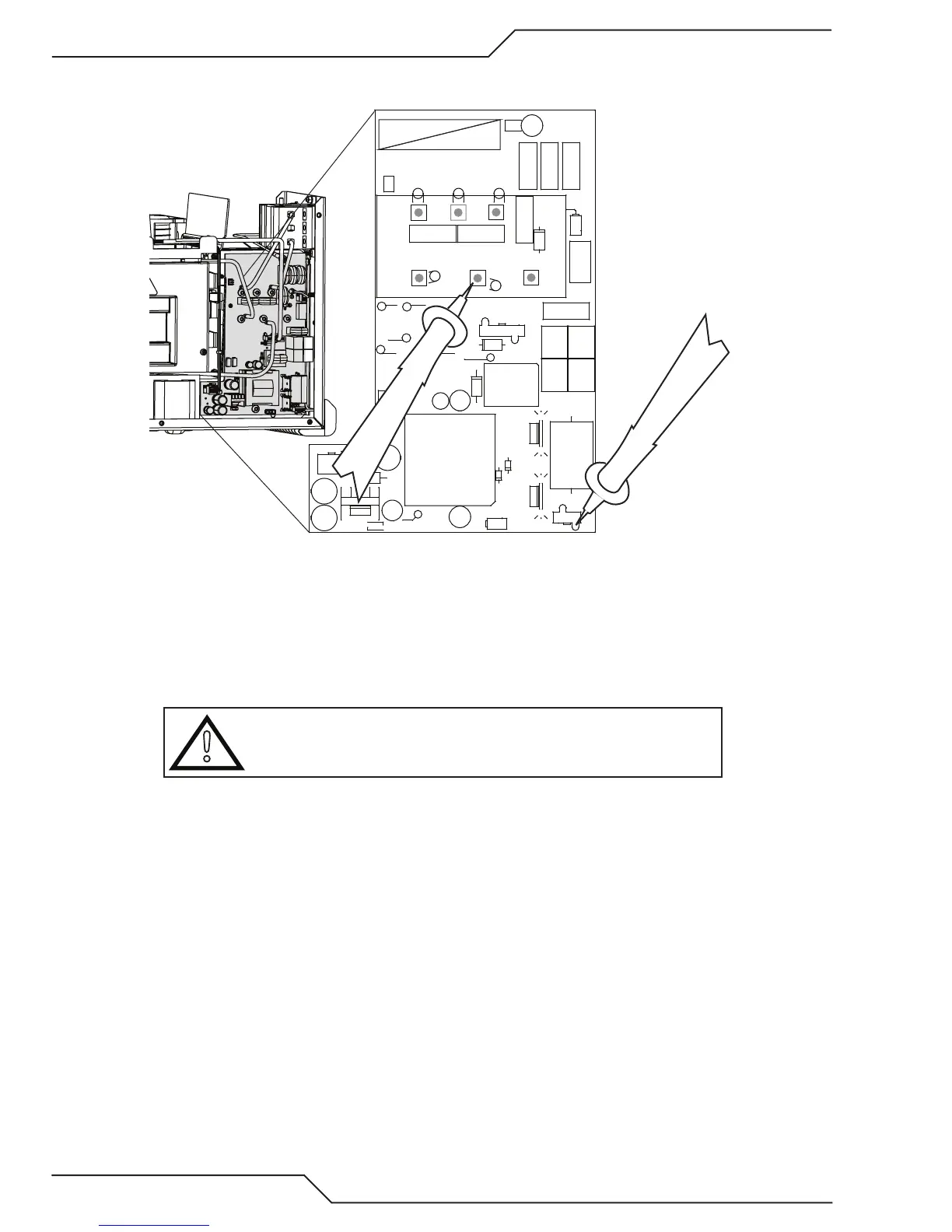

3. PFC Board Diode Test. Measure between Bridge + and J305-3 (assumes PFC inductors L1 & L2 remain con-
nected.)
GRN/YEL
ORANGE
VIOLET
BLACK
ORANGE
BLACK
CHASSIS
GND
(3Ø ONLY)
+15V PRI
+24V
-15V
+15V
3Ø
1Ø
AC1
AC2
AC3
GND PRI
BRIDGE+
TP21
TP8 TP23
TP22
TP4
ACINSEN
HI LINE
BUS CHK
LO LINE15 UV
+
C303
D301
D303
HS300 HS301
C302
+
C300
C307
+
C306
+
C304
+
C301
D304
D306
D305
D307
1
J305
1
J304
46
13
J303
K300
MOV300 MOV301 MOV302
1
J302
Q301Q300
R300
R303
R301
R302
T300
1
U300
1
U301
+
C305
HS302
1
J301
D300
1
2
5 6
J300
T301
D302
MOV306
MOV304
MOV305
MOV303
E300
-
+
Art # A-13328
a. With meter + lead on BRIDGE + and meter – lead on J305-3 meter on diode scale should read as a diode
in the forward direction, a bit lower resistance than the bridge diodes. about 0.3V to 0.4V on Fluke meter.
b. Reverse the leads, meter - lead on BRIDGE + and meter +lead on J305-3. Meter should show slowly
increasing resistance/voltage (capacitor charging) until meter goes over range.
c. If either or both of these read a short or an open in both directions replace the PFC board.
!
CAUTION
Single phase and 3 phase PFC boards are different, have different
catalog numbers! Using the wrong one may cause it to fail.
