Fan Replacement

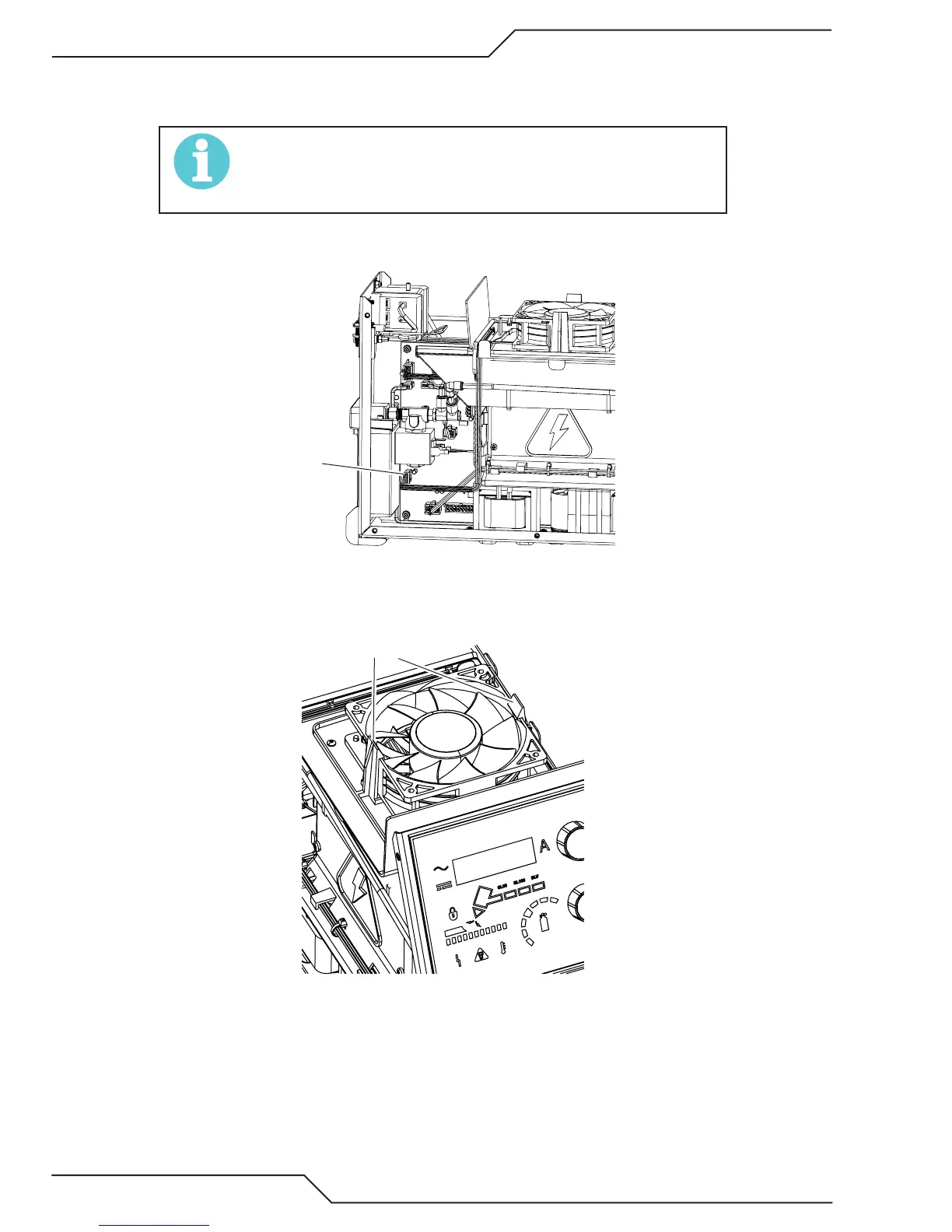

After cover removal you can access fan on the top of the power supply. To remove the fan do the following:
NOTE!
Note the orientation of the fan and where the wires are routed from the
fan so you are able to install the new fan exactly the same way.
1. Locate the fan wiring harness and unplug from the PCB.
Fan Harness
Plug
Art # A-13310
2. Spread the two retaining clips apart only enough to remove the fan
Retaining Clips
Art A-13311
Proedure is now complete.
