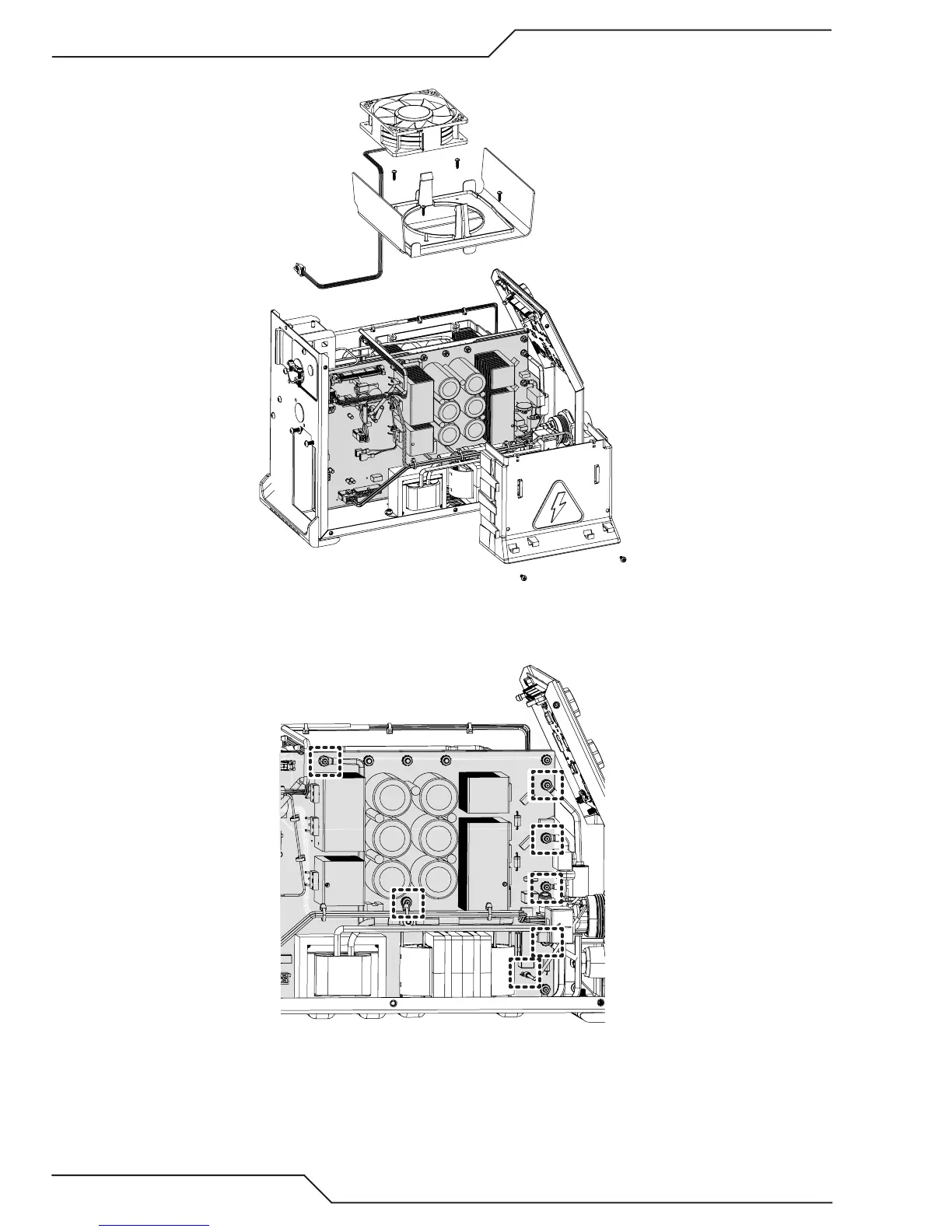

4. Remove the fan assembly and the air shroud as shown in following illustration.
Art # A-13322
5. Disconnect the remaining electrical connections to the Inverter PCB which will include 6 ring terminals with
nuts and one fast-on connection located at the bottom right of the board.
Art # A-13323
