CUTMASTER 60i
SERVICE Manual 0-5475
5-50

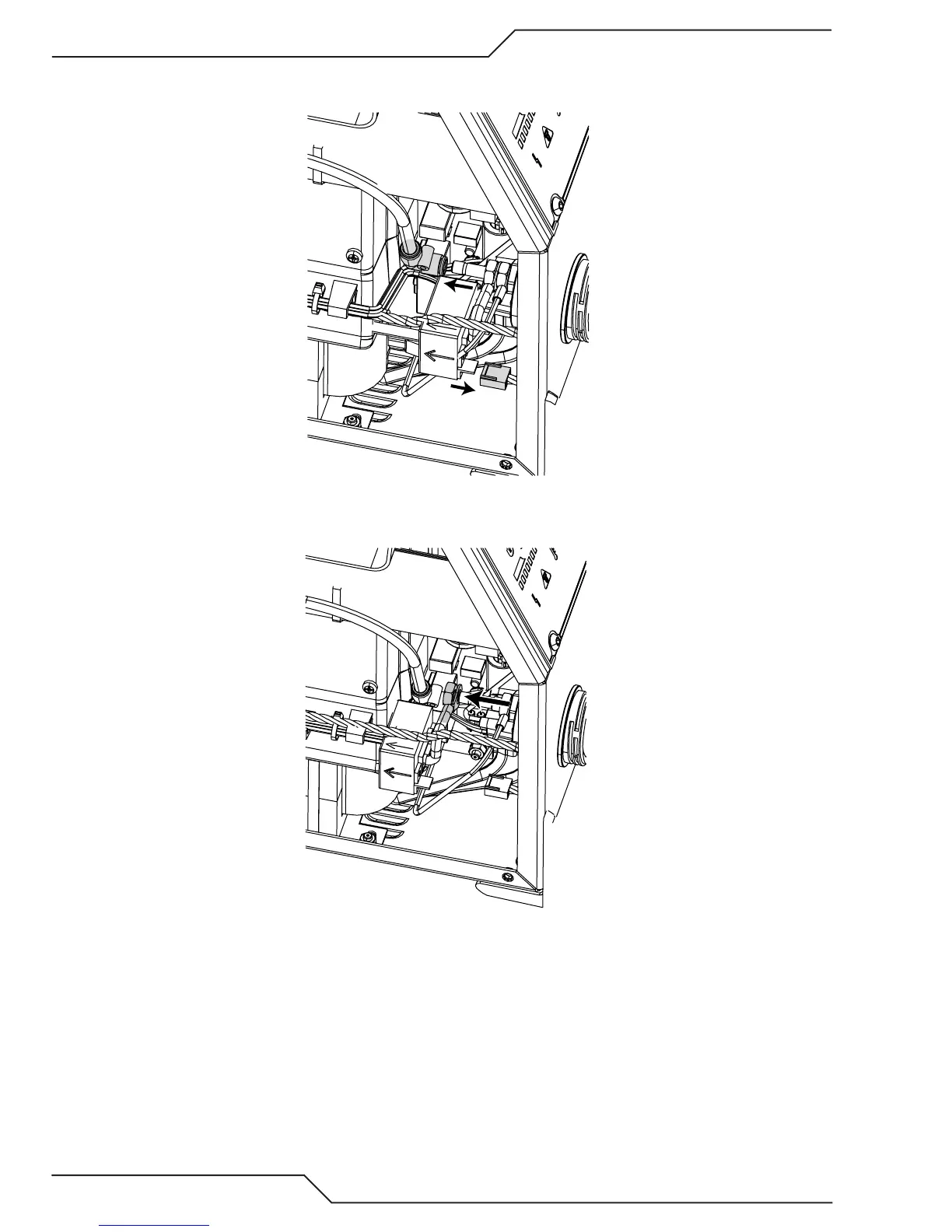

3 Unplug the harness from the HCT1 and disconnect the air/gas tube and connector from the brass tube on
the ATC connector.
Art # A-13338
4. Remove nut and ring terminal and lead that runs through the HCT1 from ATC as shown
Art # A-13339
5. Slide the HCT1 off the lead.
Procedure is now complete.
