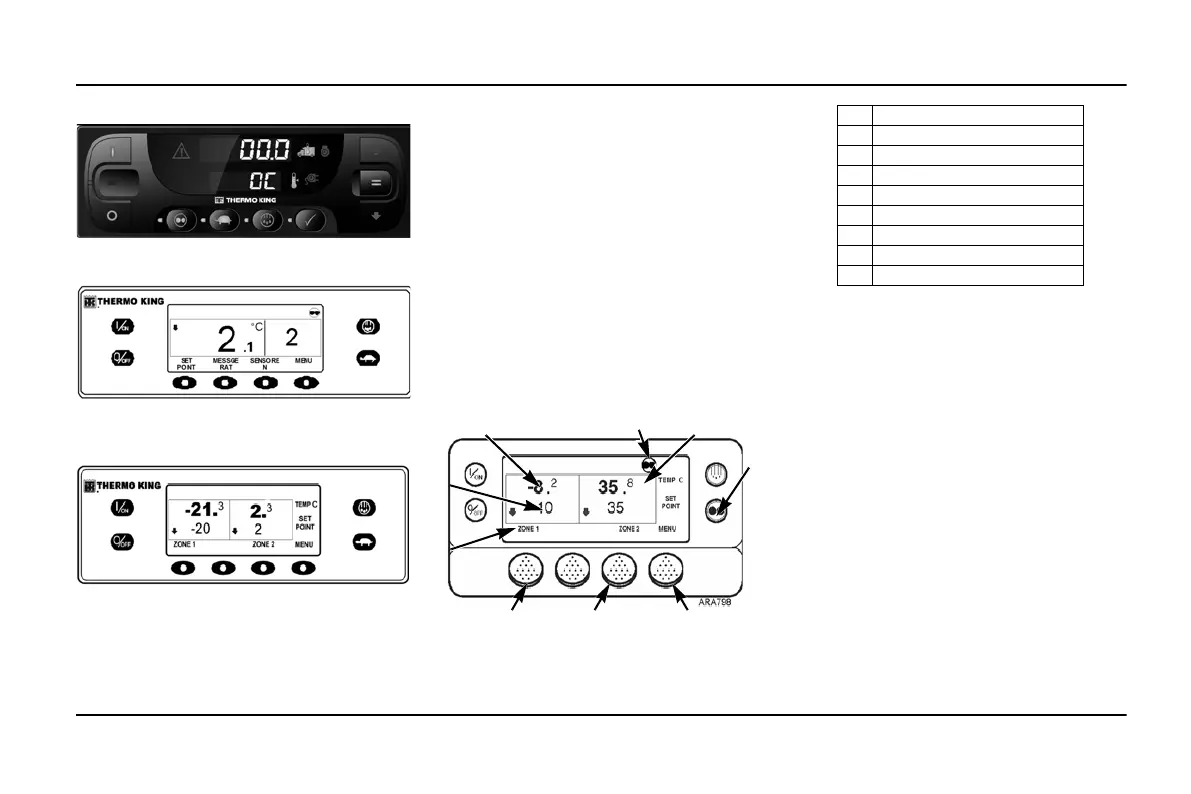

UNIT DESCRIPTION
Standard HMI Control Panel
Premium HMI Control Panel
Premium HMI Control Panel - SPECTRUM
T-1200R INTERMODAL
Your T-1200R Intermodal unit uses the
(Trailer) SR-3 control system to operate
cooling, heating, and defrost functions. See
below some basic information on operating the
unit.
Note: Please contact your Dealer in order to
refer to our appropriate “Drivers Guide to
Simple Operation” for more details on
operating the standard unit. See below
picture of this unit, but from here on through
this manual the standard TSR-3 Premium
display will be referenced as it has the same
or similar functionality.
T-1200R INTERMODAL SPECTRUM
SR-3 CONTROLLER DISPLAY
2
4
3
5 6 7
1
8
9
1. Cycle Sentry Icon
2. Box Temperature (Zone 1)
3. Setpoint (Zone 1)
4. Cooling (Zone 1)
5. Zone 1 Soft Key
6. Zone 2 Soft Key
7. Menu Soft Key
8. Zone 2 Display
9. High Speed Lockout

Thermo King T- series Specifications

General

Refrigerant	R-404A
Voltage	12V/24V DC
Defrost	Electric or Hot Gas
Model	T-series
Cooling Capacity	Varies by model
Power Source	Diesel Engine or Electric
Temperature Range	-29°C to 24°C
Control System	Microprocessor-based
Fuel Tank Capacity	Varies by model
Dimensions	Varies by model
Weight	Varies by model
