26
UNIT OPERATING INSTRUCTIONS PREMIUM HMI CONTROLLER

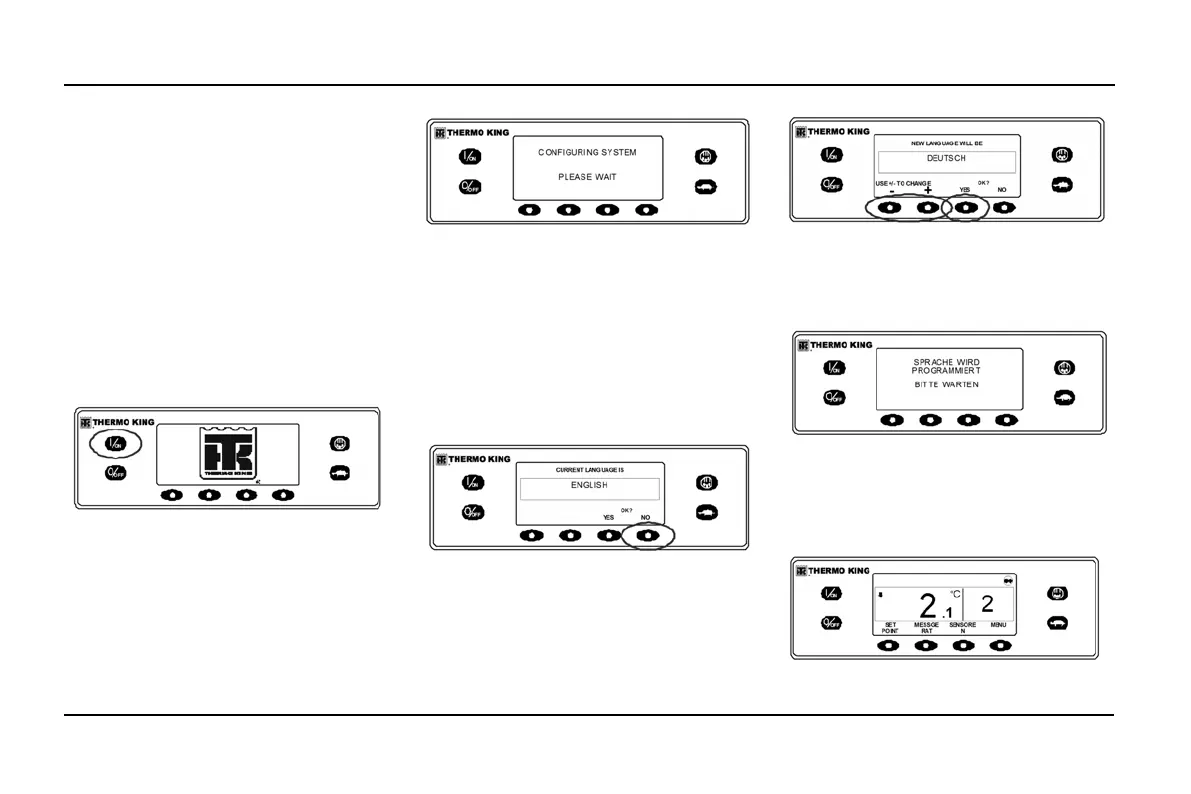

TURNING THE UNIT ON AND OFF
The unit is turned on by pressing the ON key
and off by pressing the OFF key. When the ON
key is pressed the display briefly shows the
THERMO KING Logo as the display
initializes.
Important: The ON key must be held down
until the Thermo King Logo appears. If the
ON key is not held down long enough
(approximately ½ second), the display may
flicker but the unit will not start up. If this
occurs, hold the ON key down until the
Thermo King logo appears.
Note: With extremely cold ambient
temperatures it may take up to 15 seconds
for the display to appear on initial startup.
Thermo King Logo
Then the startup screen shown in Figure
appears while communications are established
and the unit prepares for operation.
Startup Screen
IF MORE THAN ONE LANGUAGE IS
ENABLED
If more than one language has been enabled, a
prompt will appear to allow the desired
language to be chosen as shown below. Only
languages enabled from the Guarded Access
Menu are available. If a different language is
desired, press the NO key as shown in Figure .
NO key
The Language menu will appear as shown in
Figure . Press the + or - keys to select the
desired language. When the desired language
is shown press the YES key to confirm the
choice.
YES Key
The display will briefly show
PROGRAMMING LANGUAGE - PLEASE
WAIT in the new language as shown below.
Programming Language
The new language is confirmed, and then the
Standard Display will appear in the new
language as shown below. The unit is ready to
run.
Standard Display
