30
UNIT OPERATING INSTRUCTIONS PREMIUM HMI CONTROLLER

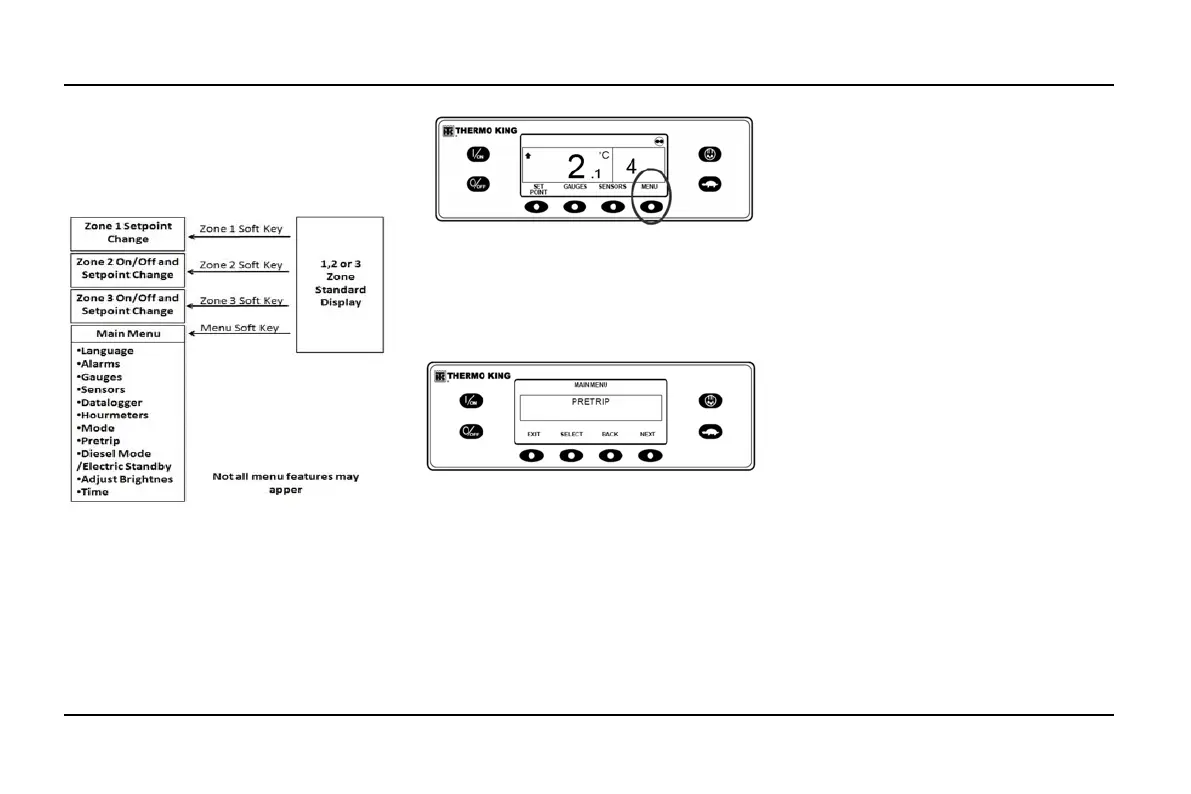

MAIN MENU OVERVIEW
(SPECTRUM)
Truck SR-2 SPECTRUM M/T Operator and
Main Menu.
USING THE MAIN MENU
The Main Menu contains several additional
submenus that allow the operator to view
information and modify unit operation. To
access the Main Menu press the MENU key.
Menu Key
The first Main Menu choice will appear. Press
the NEXT and BACK keys to scroll thru the
menu choices. When the desired selection is
shown on the display, press the SELECT key to
access it. The Pretrip submenu is shown below.
Pretrip Submenu
See “Main Menu Choices.” For detailed
information see the individual explanations of
each submenu item on the following pages.
To return to the Standard Display press the
EXIT key.
MAIN MENU CHOICES
LANGUAGE - If more than one language is
enabled, this will be the first menu item to
appear. If only one language is enabled, this
menu will not appear. The Language Menu
allows the operator to select a language from a
list of up to 11 languages at one time. All
subsequent displays are shown in the selected
language. Three different language packages
with a total of 23 languages are available.
English is the default language and is provided
in each of the packages.
ALARMS - Allows the operator to view all
alarms, and allows most alarms to be cleared.
If only one language is enabled this will be the
first menu item to appear.
DATA LOGGER - Allows the operator to set a
Start of Trip marker to the ServiceWatch data
logger. Also allows a Start of Trip and Print
requests to be sent to the Optional DAS Data
Logger (if installed).
HOURMETERS - Allows the operator to
view the unit hourmeters that have the view
feature enabled in the Guarded Access menu.
If the view feature for a particular hourmeter is
not enabled then that hourmeter will continue
to accumulate time but cannot be viewed from
the Main Menu. However, all hourmeters can
be viewed from the Maintenance Menu, even if
they are not enabled.
To Next Page
