UNIT OPERATING INSTRUCTIONS PREMIUM HMI CONTROLLER

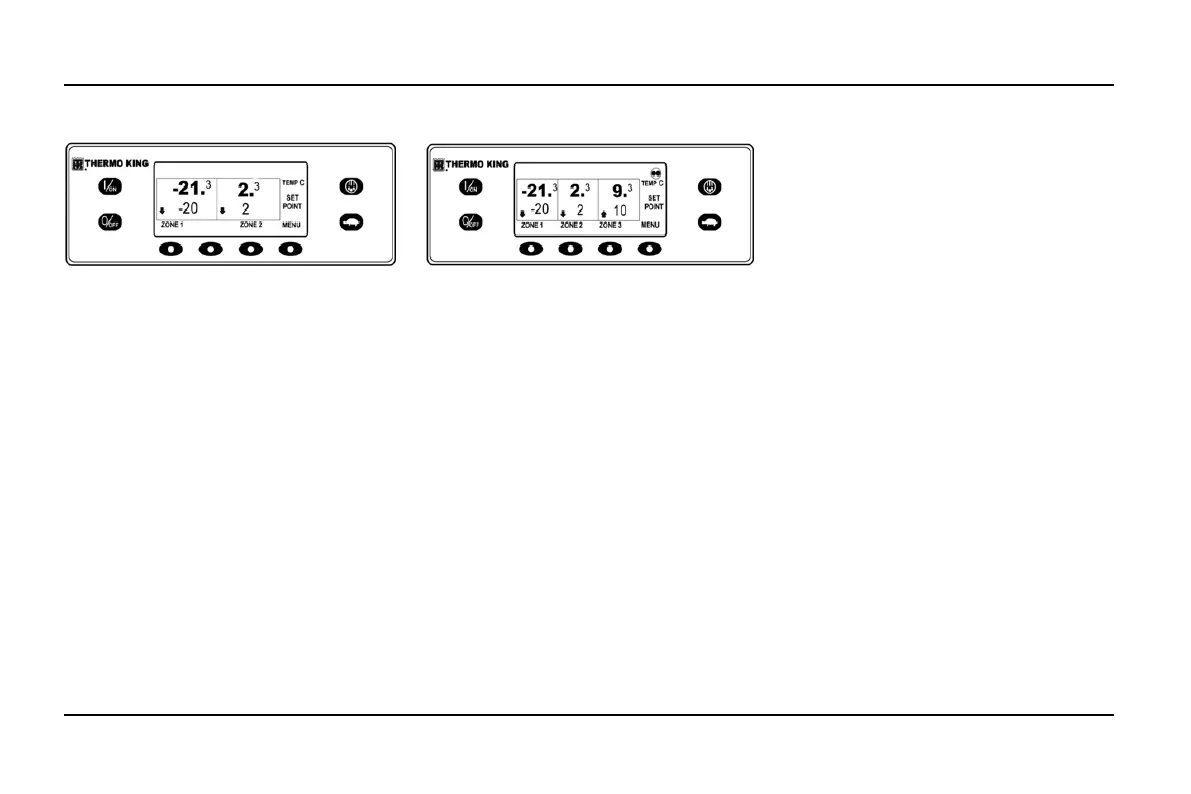

The Two Zone Standard Display
2 Zone Standard Display
The 2 Zone Standard Display in a figure shows
the return air temperature and setpoint for two
zones.
• The Cycle Sentry Icon in the upper right of
the display shows that the unit is operating in
Cycle Sentry mode.
• The return air temperature for Zone 1 is
-21.3°C with a -20°C setpoint. The
down-pointing arrow indicates that Zone 1 is
cooling.
• The return air temperature for Zone 2 is
2.3°C with a 2°C setpoint. The
down-pointing arrow indicates that Zone 2 is
also cooling.
• The soft key under each zone is used to turn
that zone on and off and allows the Setpoint
for that zone to be changed.
• The soft key labeled MENU allows the Main
Menu to be selected
The Three Zone Standard Display
The 3 Zone Standard Display adds the third
zone for units equipped with three zones. The 3
Zone Standard Display functions the same way
as the 2 Zone Standard Display.
OPERATING THE UNIT IN SINGLE
ZONE CONTROL MODE
(SPECTRUM)
The following differences exist when operating
the unit in Single Zone Control Mode.
• Single Zone Control Mode will appear in the
Main Menu/Mode Menu only if the Single
Zone Control feature has been enabled in the
Guarded Access/Main Menu Configuration
menu.
• If Single Zone Control operation is selected
then all zones will be forced on and will
control to the same setpoint.
• Unit control is based on the temperature
sensors of one zone, usually Zone 1.
• All bulkheads should be taken down to
create one large compartment.
• With the exception of defrost the operating
mode of eachzone evaporator(s) will be same
when in this mode. Unit control is based on
the temperature sensors of one zone, usually
Zone 1.
• f Single Zone Control operation is selected
the Single Zone Standard Display provides
one soft key labeled Set Point as shown
above. This allows the setpoint for all zones
to be changed simultaneously.
• If Single Zone Control operation is selected
the individual zones cannot be turned off.
The unit and all zones are turned On and Off
simultaneously using the On and Off hard
keys at the left side of the display.
OPERATING THE UNIT AT A SINGLE
TEMPERATURE (SPECTRUM)
If Single Zone Control Mode is not enabled, the
unit can still be run at a single temperature.
