MEC 310 GENSET CONTROLLER
PM075 REV 2 09/08/20 Page 63 THOMSON TECHNOLOGY
Charger alternator terminal W
The terminal W output is an AC voltage.
Magnetic pick-up
The 2-wire magnetic pick-up can be connected directly to terminals 17-18.

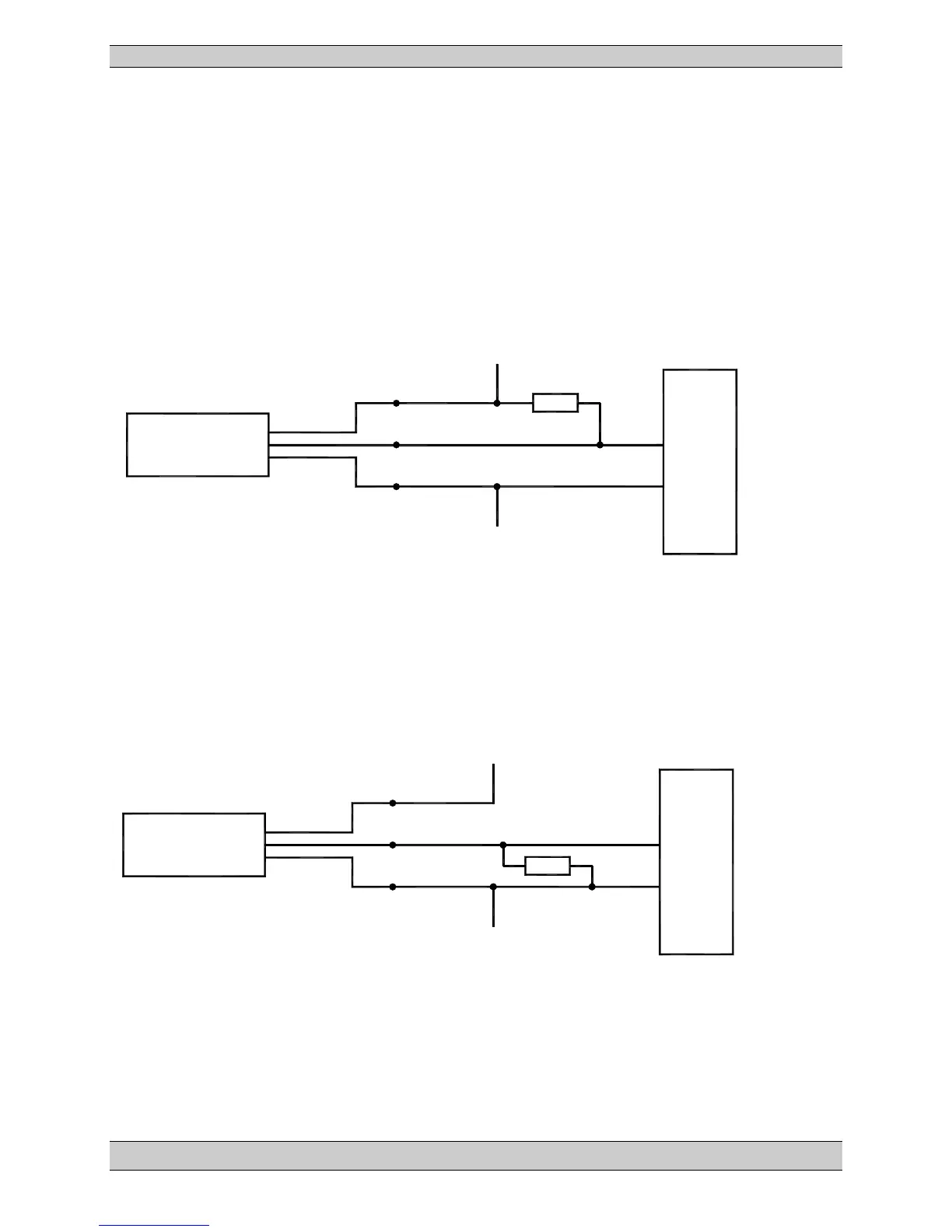

NPN transistor output pick-up
Since the NPN output is a frequency modulated DC pulse signal, a few external components are
needed in order to eliminate the DC component.
R = 1200 (24V DC), 600 (12V DC)
PNP transistor output pick-up
Since the PNP output is a frequency modulated DC pulse signal, a few external components are
needed in order to eliminate the DC component.
R = 1200 (24V DC), 600 (12V DC)
+VDC
Output
0 VDC
+12/24VDC
-
12/24VDC
17
18
MEC 3
10
R
+VDC
Output
0 VDC
+12/24VDC
-
12/24VDC
17
18
MEC 310
R
