Stop sequences

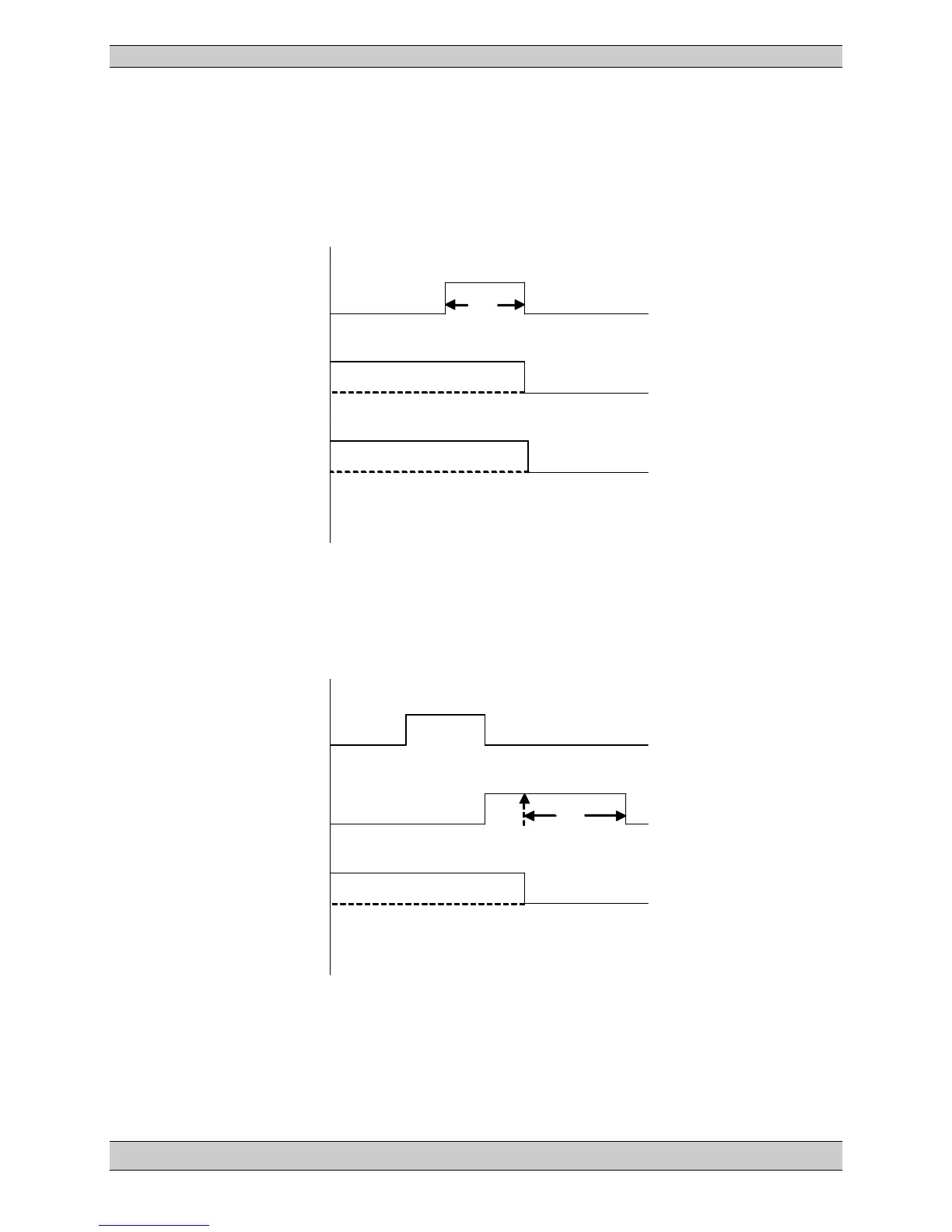

The illustrations indicate the stop sequence schematically.
Cool dow n time
Run coil
Running feedback
Stop sequence / RUN coil
t COOL
Cool dow n time
Stop coil
Running feedback
Stop sequence / STOP coil
t EXT
Stop sequence
/ Stop coil and
Stop coil (not acc. in start seq.)
