THOMSON MEC 310#GENSET CONTROLLER User Manual

MEC 310 GENSET CONTROLLER
PM075 REV 2 09/08/20 Page 68 THOMSON TECHNOLOGY
Buzzer
The MEC 310 has a built-in buzzer. The buzzer is configured in M-logic. This means that if the
buzzer is going to be used as a horn annunciator, the input must be set to ‘Horn’ and the output
must be set to ‘Buzzer’. The buzzer will act concurrently to the horn output timer. If the delay timer

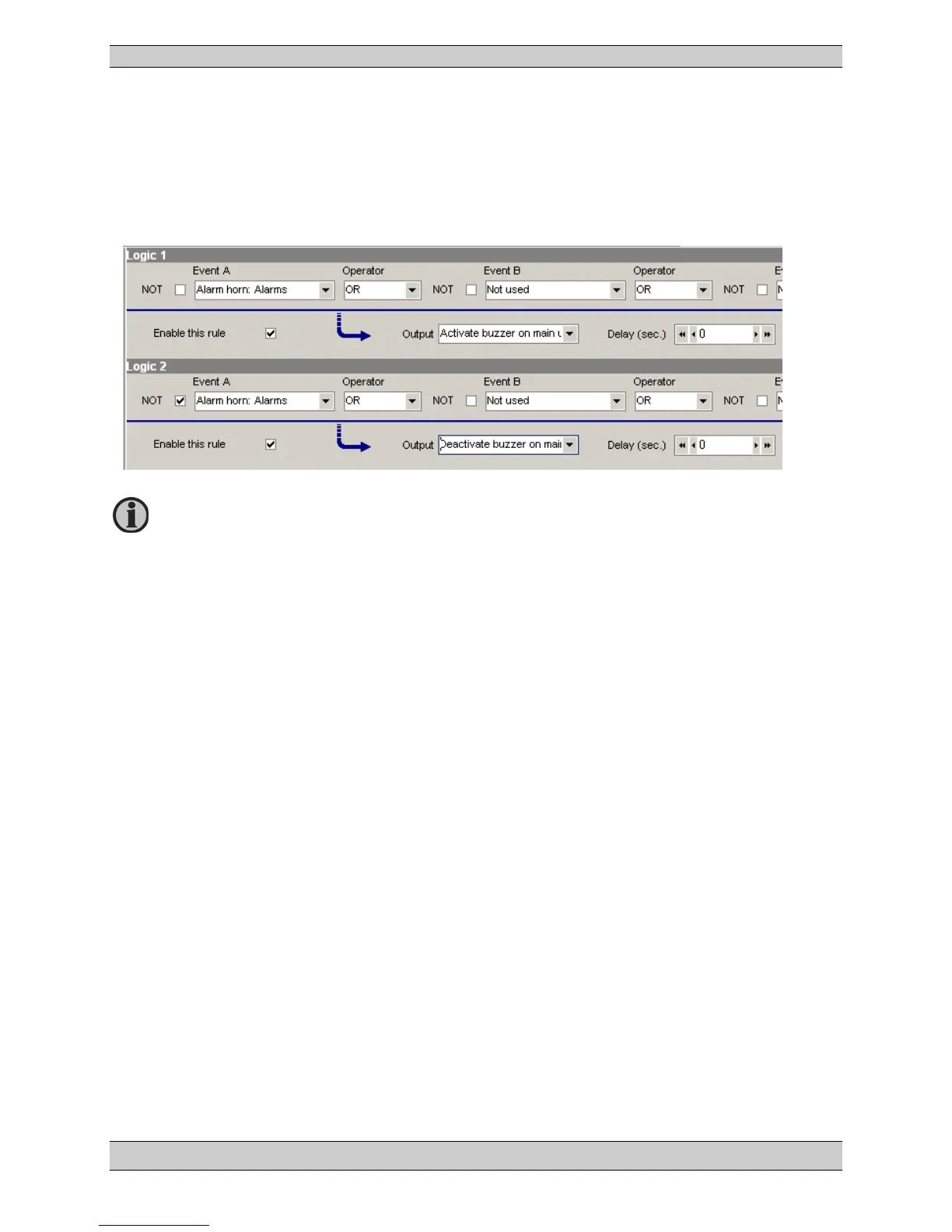

in M-logic is used, the buzzer will be active after this time delay. See example below.
If an EAP 300 is connected, the buzzer in the EAP 300 must be configured under
the EAP 300 setup. But the configuration of the EAP 300 buzzer is similar to the
above.
