5. Push-buttons, LEDs and display
This chapter deals with the display including the push-button and LED functions.
Unit
Front dimensions H x W
160 x 220 mm (6.30” x 8.66”)
Unit depth
54 mm (2.13 “)

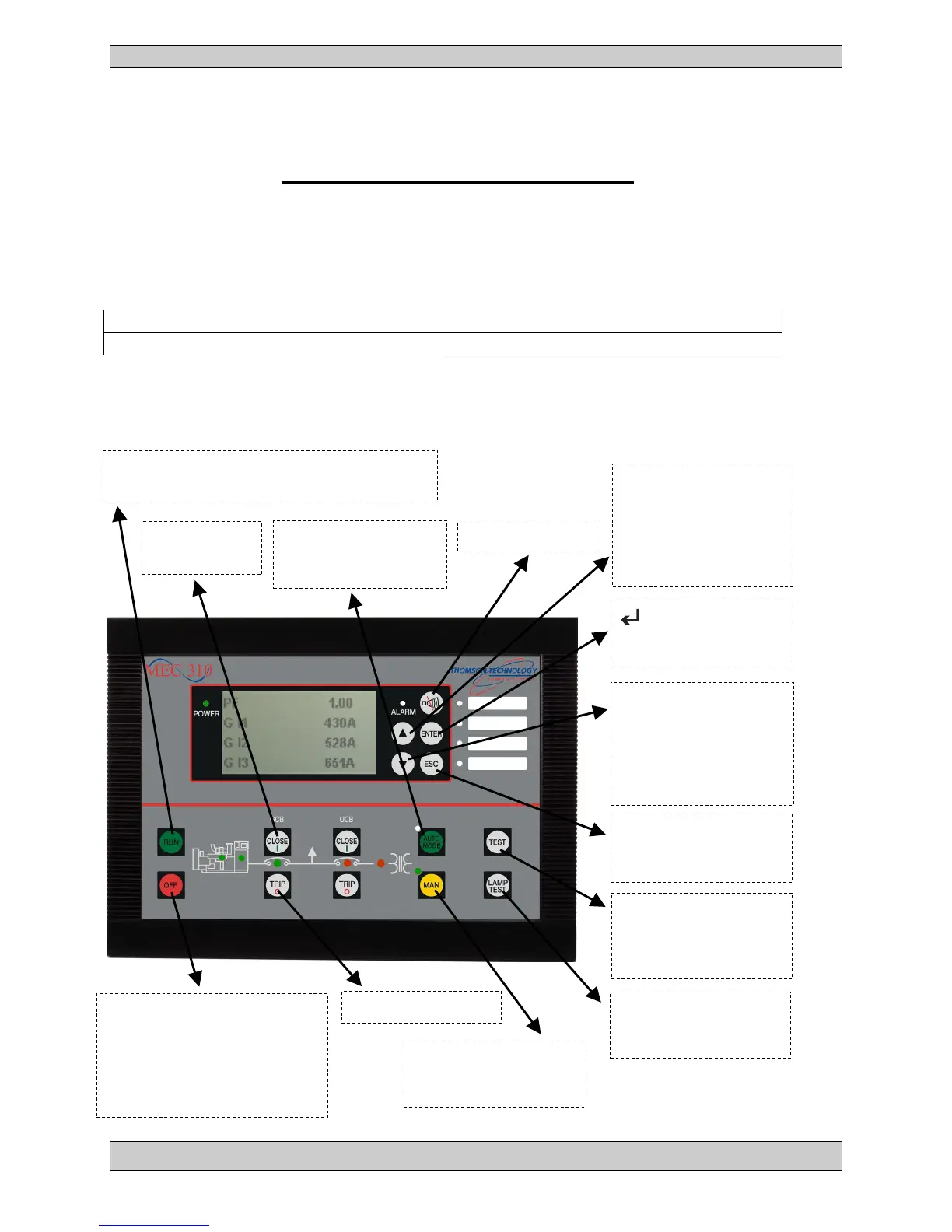

Push-button functions
The push-buttons on the unit have the following functions:
RUN
:
Start engine (local (not auto)) running mode.
OFF
:
Stops the engine immediately.
If the unit is in AUTO mode,
the mode will change to MAN
and the engine will stop.
Breaker TRIP.
Breaker
CLOSE.
AUTO
running mode
selector.
:
Enters value or ack-
nowledges alarm.
MAN
:
Manual running mode
selector.
Reset horn relay.
▲:
Normal display: Scrolls
the display up once.
Programming:
Increases set point
value.
▼:
Normal display: Scrolls
the display down once.
Programming:
Decreases set point
value.
ESC
:
Jumps from parameter
settings to display.
TEST
:
Activates the selected
test in the entered
time.
Lamp test
:
Activates all LEDs for
3 seconds.
