Portable Connector End Face Geometry Interferometer Chapter 9: Control Tabs
Rev B, April 16, 2019 Page 42

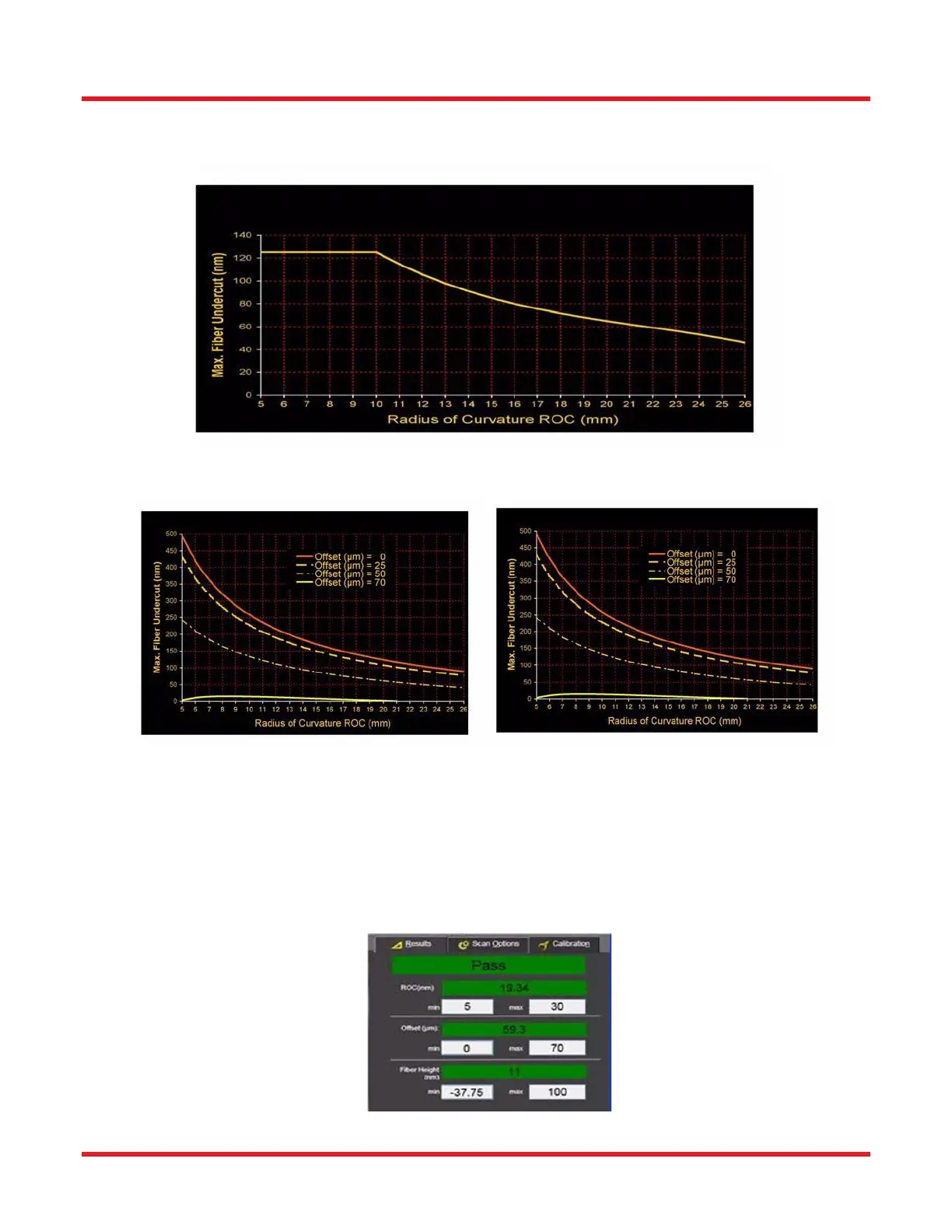

TELCORDIA
IEC-1.25 IEC-2.50
• Fiber Diameter: Specifies the fiber diameter in microns of the connector being tested. - 126 microns is the
default setting (This number actually represents the average diameter between the fiber O.D. and ferrule
I.D). Enter the fiber diameter of the connector being measured to insure accurate measurements. For this
system, the largest allowed value for the diameter is 300 microns.
• Results Display Mode:
o Value: Displays the calibrated measurement values on the Results tab along with currently-chosen
Pass/Fail limits for that measurement type.
