© 2007-2012 Thorlabs GmbH
61Operating Instruction

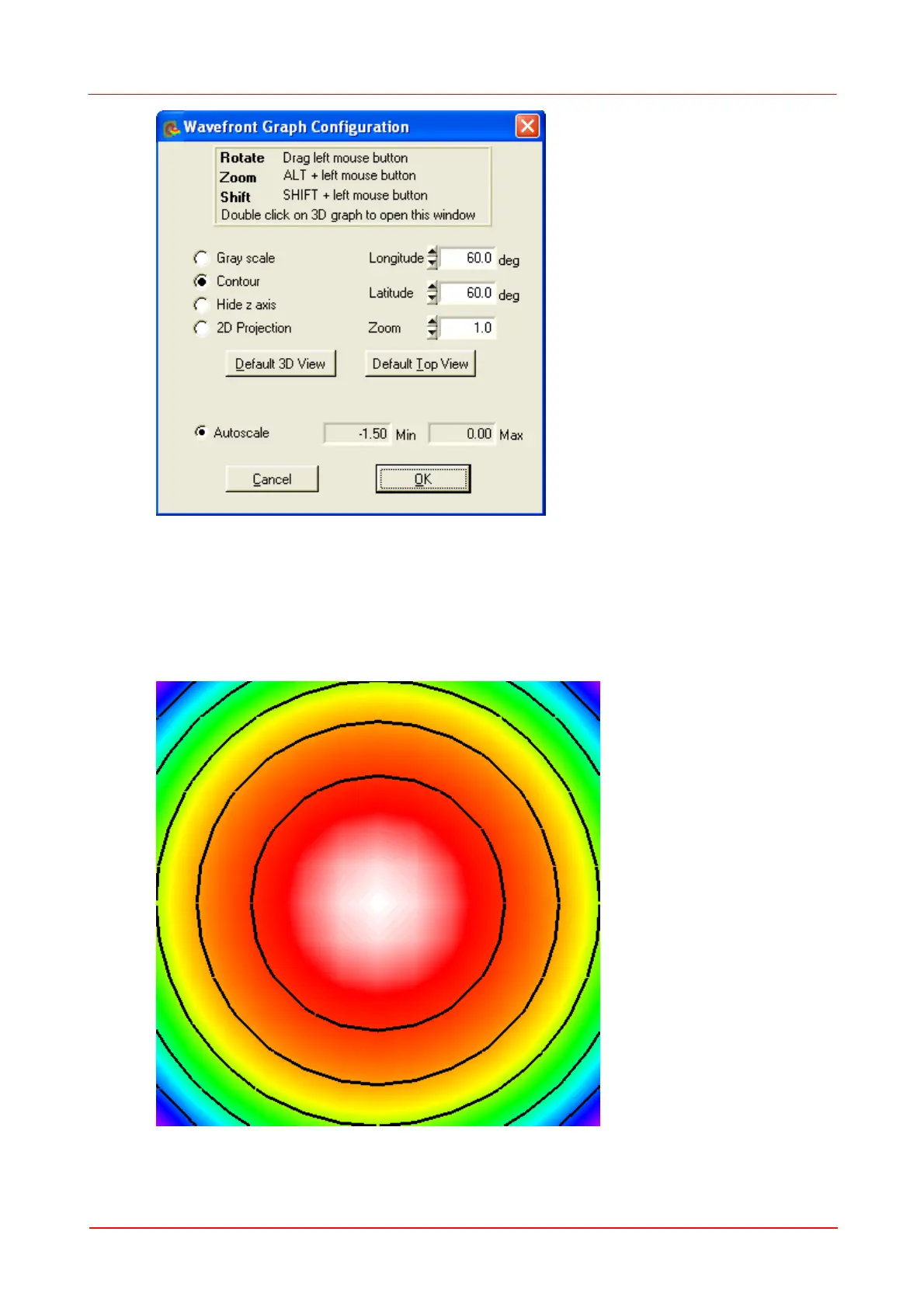

There are two predefined view adjustments, 'Default 3D view' and 'Default top view'.
'Default 3D view' arranged the view angles so that all three axis are to be seen
and the wavefront can be viewed as a 3D curve.
'Default top view' sets the 'Latitude' view angle to zero and allows a view parallel
to the z-axis towards the x-y plane. The x-y-plane becomes rectangular and the
wavefront height is only indicated by its color.
The following options define the look of the 3D graph
