INSTALLATION

289

NVA100X-D - Manual - 02 - 2016

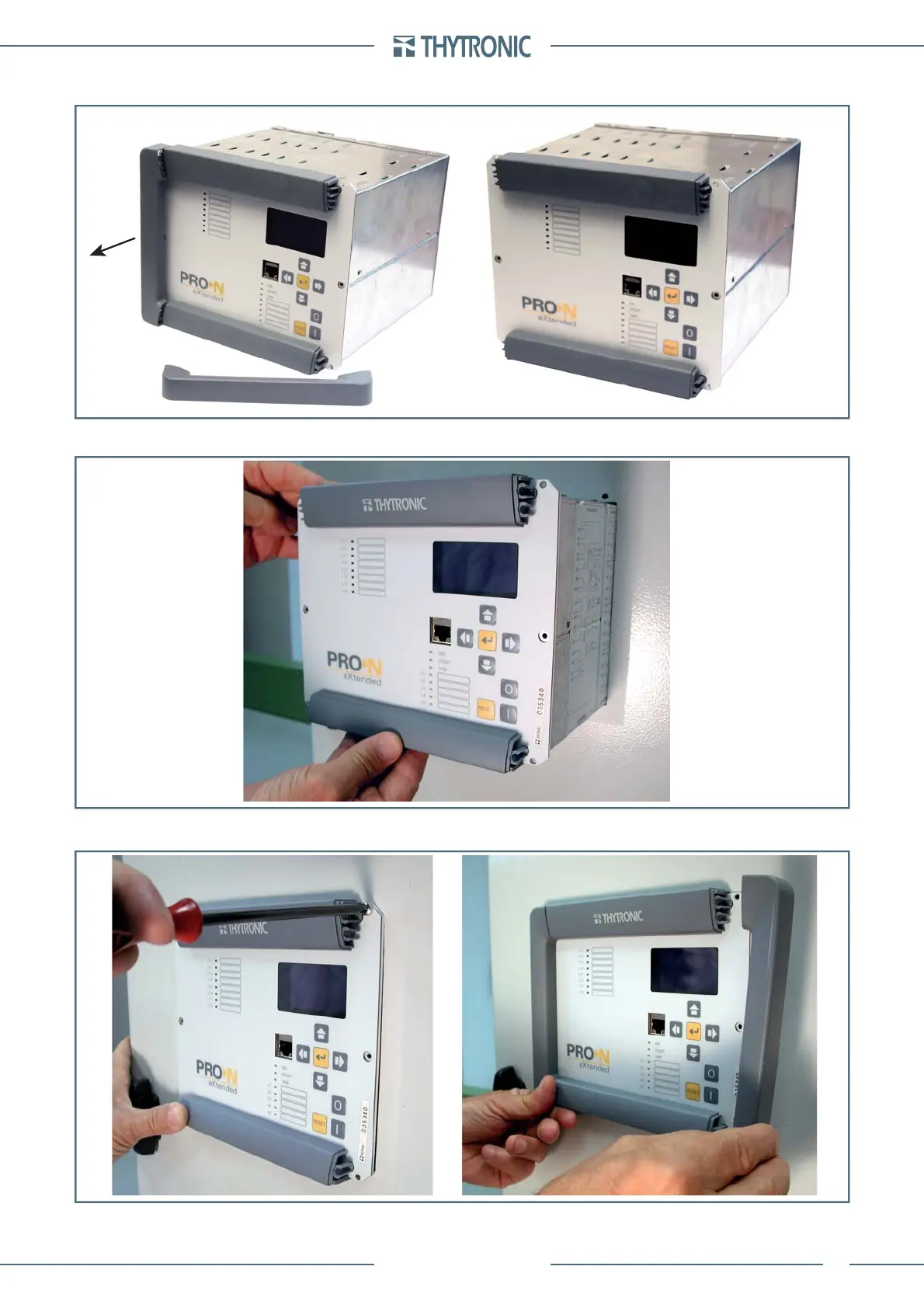

Remove the two vertical frames for access the holes for the ﬁ xing screws; the frames are snapped

Insert the device into the slot.

Fit the device to the panel with four screws.

Replace the vertical frames

•
