58
NVA100X-D - Manual - 02 - 2016

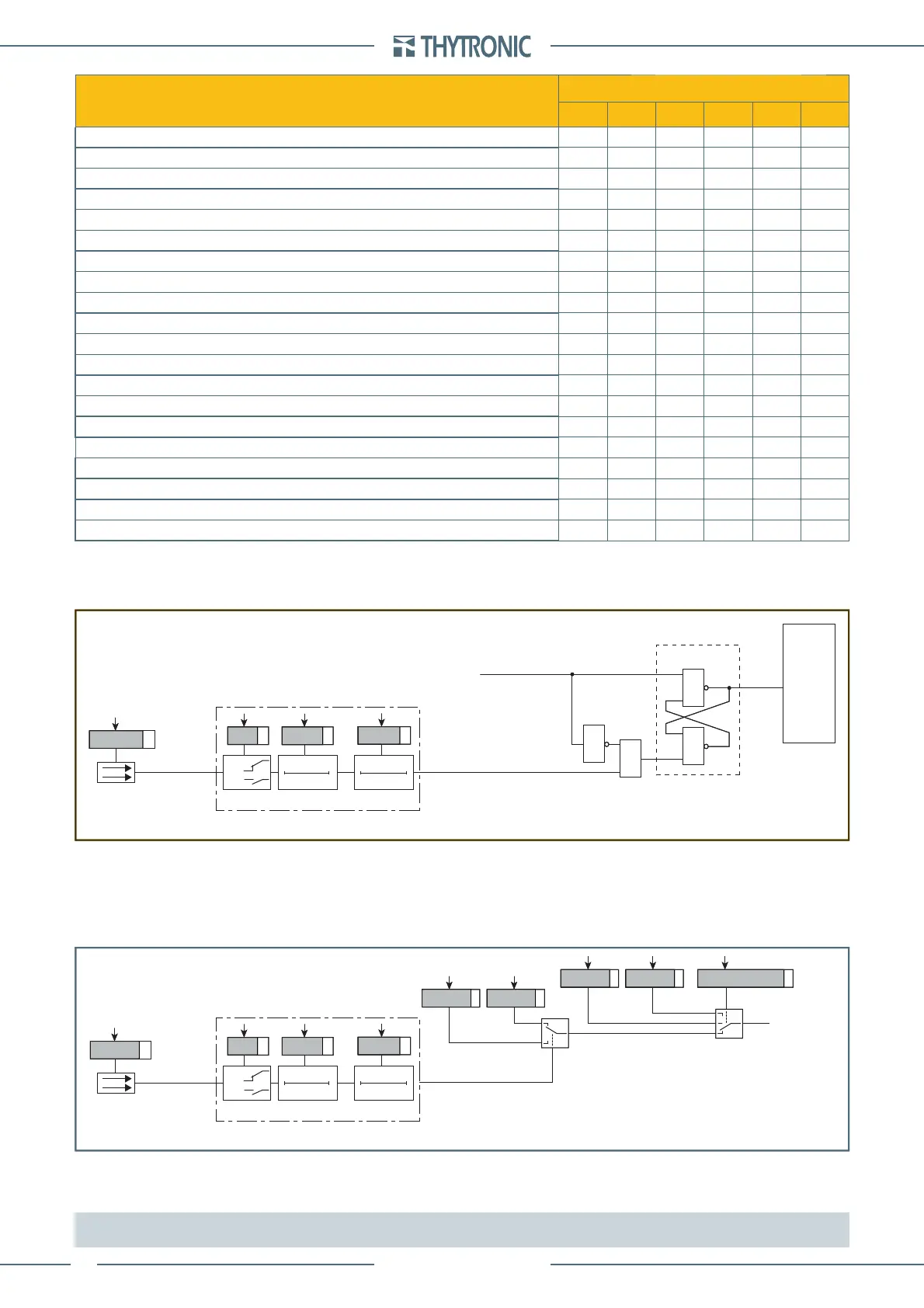

FUNCTION CHARACTERISTICS
ELEMENTS
Binary inputs
IN1-1 IN1-x IN1-16 IN2-1 IN2-x IN2-16
IE1>>>Bk (Logic block of IE1>>> element, active through virtual I/O)
gggggg
IE2>Bk (Logic block of IE2> element, active through virtual I/O)
gggggg
IE2>>Bk (Logic block of IE2>> element, active through virtual I/O)
gggggg
IE2>>>Bk (Logic block of IE2>>> element, active through virtual I/O)
gggggg
IEC>Bk (Logic block of IEC> element, active through virtual I/O)
gggggg
IEC>>Bk (Logic block of IEC>> element, active through virtual I/O)
gggggg
IEC>>>Bk (Logic block of IEC>>> element, active through virtual I/O)
gggggg
IED>Bk (Logic block of IED> element, active through virtual I/O)
gggggg
IED>>Bk (Logic block of IED>> element, active through virtual I/O)
gggggg
IED>>>Bk (Logic block of IED>>> element, active through virtual I/O)
gggggg
IED>>>>Bk (Logic block of IED>>>> element, active through virtual I/O)
gggggg
IEDC>Bk (Logic block of IEDC> element, active through virtual I/O)
gggggg
IEDC>>Bk (Logic block of IEDC>> element, active through virtual I/O)
gggggg
IEDC>>>Bk (Logic block of IEDC>>> element, active through virtual I/O)
gggggg
IEDC>>>>Bk (Logic block of IEDC>>>> element, active through virtual I/O)
gggggg
Speed Control (acquire the rotor state - running or not running)
gggggg
Reset N/T starts (Number of starts and start cumulative time for 66 element)
gggggg
Motor restart (restart timers when the binary input become active)
gggggg
Reset P RMT (The operation time of motor is cleared - Partial counter)
gggggg
Reset T RMT (The operation time of motor is cleared - Total counter)
gggggg
Reset LEDs
If the element tripped have gone back to rest condition, the latched LEDs and/or relays may be
reset.
Set profi le
Inside Pro-N devices, two independent setting profi les (A and B) are available. Whereas different
settings are required, they are made in the setting profi les and stored in the non volatile memory of
relay. Applicable setting profi le is activated usually via a binary input; when the programmed input is
activated, the profi le B becomes operative as a replacement for the default profi le A.
[1]
Note 1 To enable the profi le switching the “Input-selected” parameter must be set inside the “Profi le selection” submenu.
If multiple setting groups are not required, Group A is the default selection
Reset-led.ai
TRIPPING MATRIX
(LED+RELAYS)
≥
≥
&
&
Set (ON≡turn on LED/relay)
S
Set-Reset latch
R
Reset (ON≡turn off LED/relay)
Reset LEDs
T0
INx
t
ON
T0
n.o.
n.c.
INx tON
Logic
INx tOF F
INx
t
OFF
Binary input INx
Binary input allocation for reset signalling (LEDs)
Reset-led.ai
TRIPPING MATRIX
(LED+RELAYS)
≥
≥
&
&
Set (ON≡turn on LED/relay)
S
Set-Reset latch
R
Reset (ON≡turn off LED/relay)
Reset LEDs
T0
INx
t
ON
T0
n.o.
n.c.
INx tON
Logic
INx tOF F
INx
t
OFF
Binary input INx
Binary input allocation for reset signalling (LEDs)
Switch-profile.ai
(A, B, from binary input)
OFF≡Profile A, ON≡ Profile B
Binary input allocation for switching of setting profiles
Profile AProfile B
Profile A Profile selectionProfile B
Set profile
T0
INx
t
ON
T0
n.o.
n.c.
INx tON
Logic
INx tOF F
INx
t
OFF
Binary input INx
Switch-profile.ai
(A, B, from binary input)
OFF≡Profile A, ON≡ Profile B
Binary input allocation for switching of setting profiles
Profile AProfile B
Profile A Profile selectionProfile B
Set profile
T0
INx
t
ON
T0
n.o.
n.c.
INx tON
Logic
INx tOF F
INx
t
OFF
Binary input INx
