SAWMILL ASSEMBLY
Saw Head Installation
3
3-20 15doc110819 SAWMILL ASSEMBLY

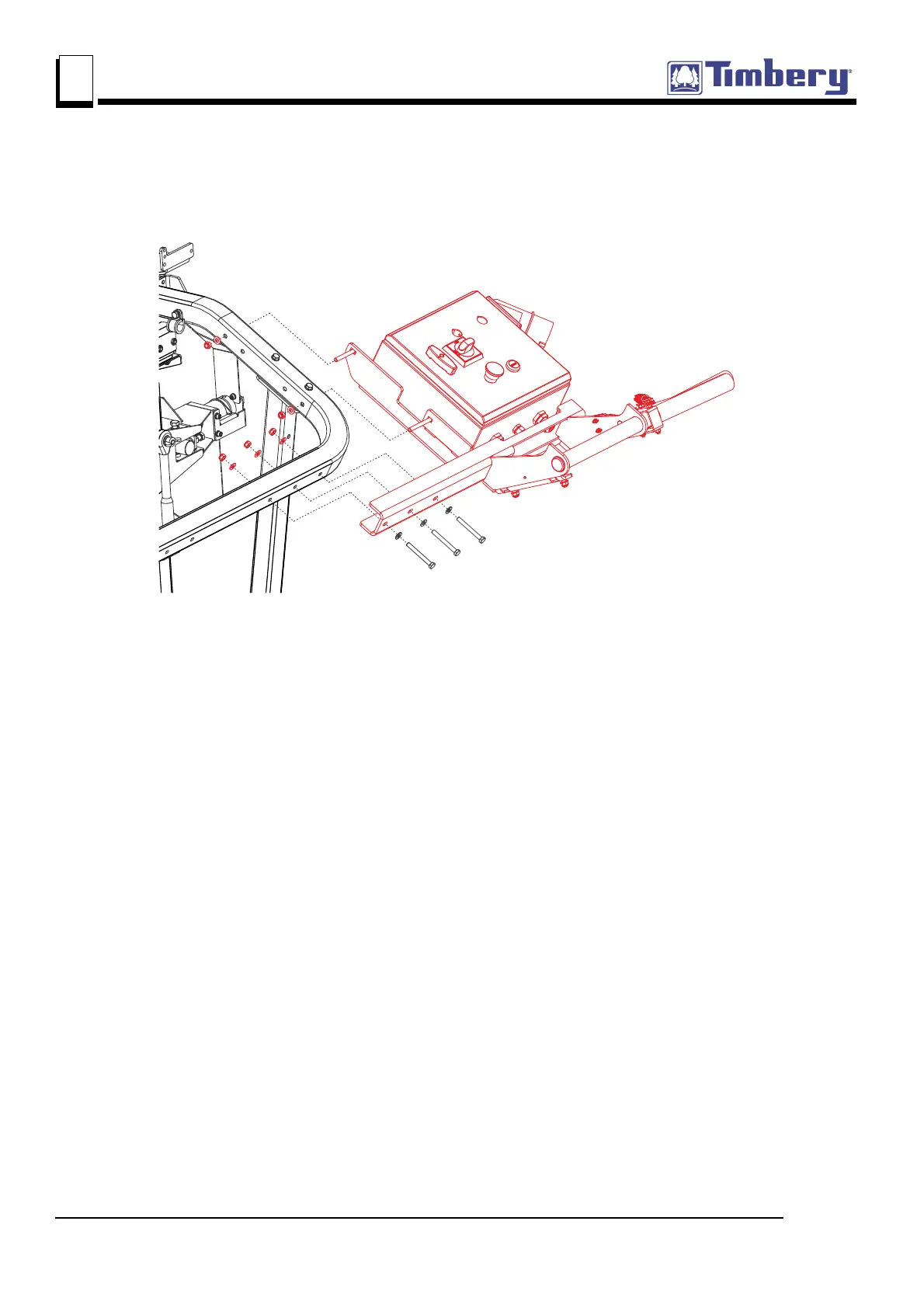

8. Install the control box to the mast. To do this, insert the M8x75 bolts (A), fastened to the control box
bracket, through the side tube of the mast and secure with the nuts. Then, using the M8x70 bolts
(B), bolt the control box handle to the rear mast tube as shown below.
