SAWMILL ASSEMBLY
Saw Head Installation
SAWMILL ASSEMBLY 15doc110819 3-21
3

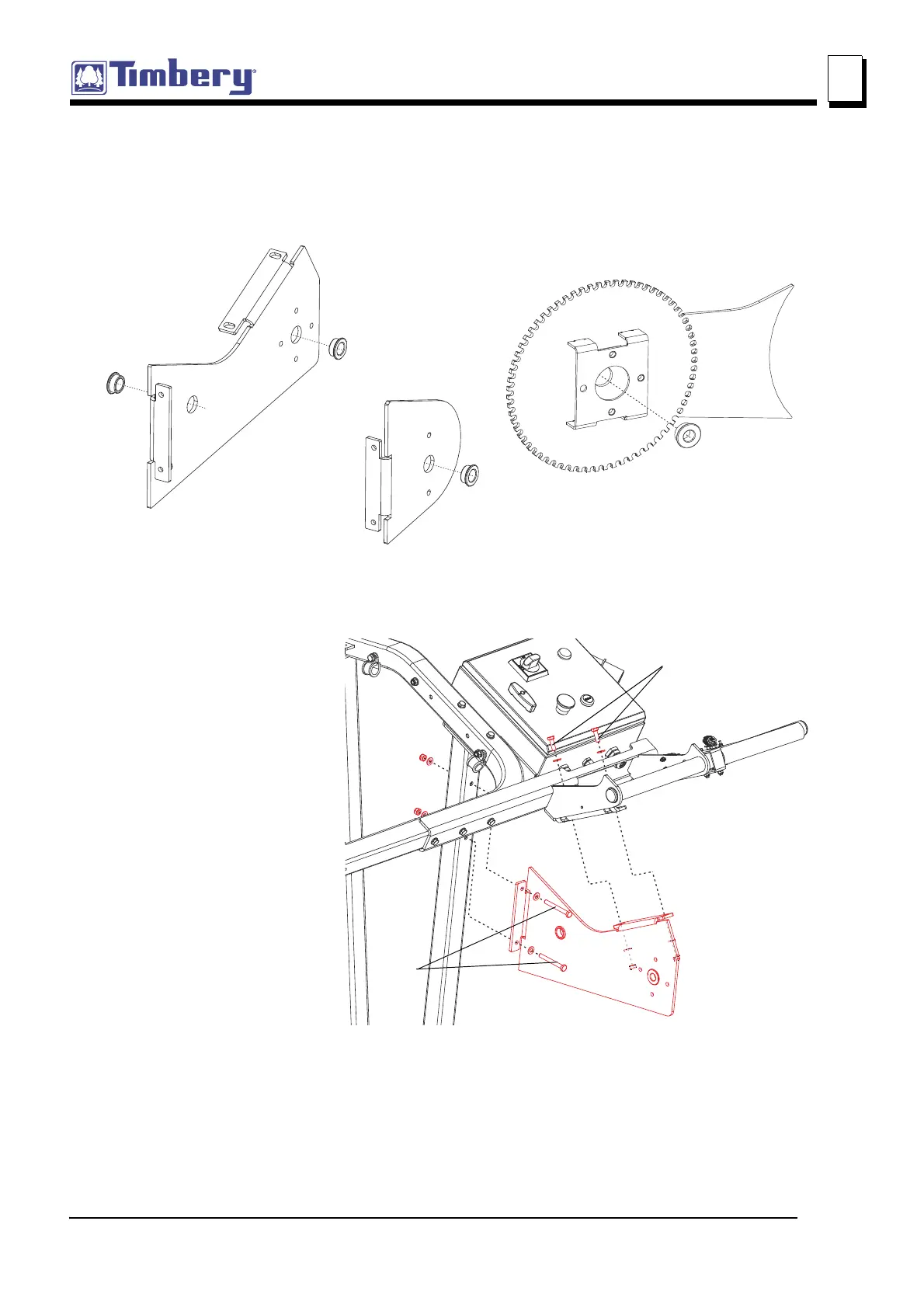

9. To install the up/down assembly (winch assembly), first place the plastic bushings (type A and B) in
the holes located in the brackets and dial shown below. The inside diameter of the ”A” bushing is
20 mm, the ”B” bushing is 16 mm in diameter.
10. Mount the up/down bracket at the control box using the M8x25
(A) and M8x70 (B) bolts.
11. Place the key and sprocket on the up/down shaft and tighten the screw to prevent them from
sliding off the shaft. Then insert the friction torque limiter (friction pads, bushing, clamping plate)
onto the shaft at the other end of the shaft as shown below.
To Next Page
