TiVo Stream - Video Communication Path

Functional architecture
TiVo Stream Operator’s Guide v1.0 • TiVo
®
Proprietary and Confidential 9

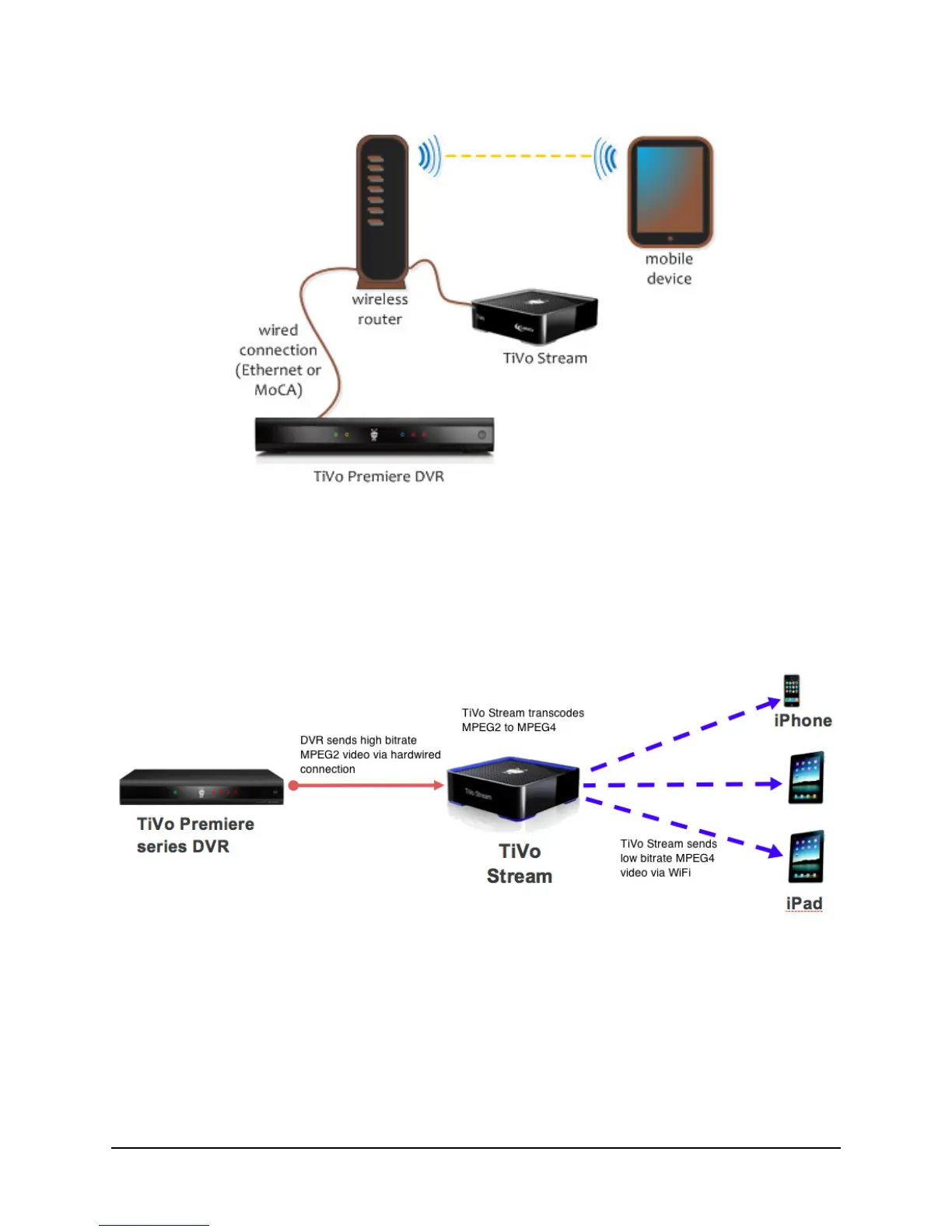

Figure 1–4: TiVo Stream network communication path
Video communication path
Figure 1–5 shows the path of video communication from the TiVo DVR to the TiVo Stream device
and finally from the TiVo Stream to mobile devices.
Figure 1–5: TiVo Stream video communication path
