3.2.3 Optional components

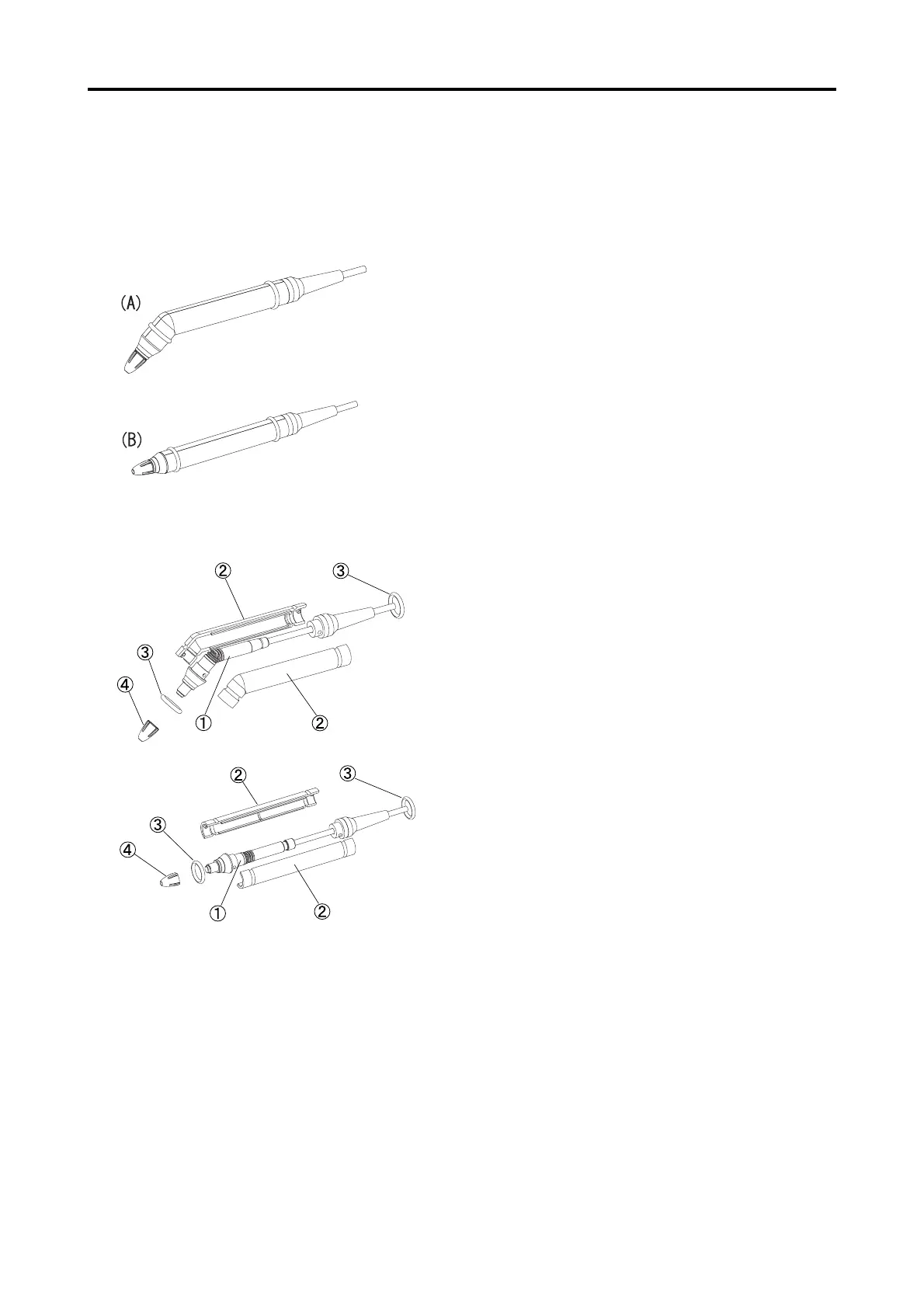

Assembling of the Disposal Tip Pachymeter Probe and alternative Probe shapes
The Disposal Type Pachymeter Probe (supplied as
an optional component) consists of the inner probe,
case, fixed ring, and disposal tip.
The Probe can be changed in two alternative shapes:
(A) with 45 shape and (B) in straight shape, de-
pending on the application convenience.
<How to assemble>
1) Cover the inner probe A with a pair of cases
B to make the inner probe clipped in between
and fix it with the rubber rings C.
2) Apply a small amount of methylcellulose (such
as Dry Eye Gel) on the tip of the inner probe
A.
3) Then securely insert the disposal tip D not to
cause air bubbles inside of the tip.
<How to assemble the Probe in alternative shape>
1) Disassemble the disposal tip D, fixed ring C,
and the case B in order.
2) Assemble the case B to be changed and next
fix it with the rings C.
3) Next apply a small amount of methylcellulose
to the tip of the inner probe.
4) Then securely insert the disposal tip D not to
cause air bubbles inside of the tip.
