TOORX MSX3000 - Assembly Step（2

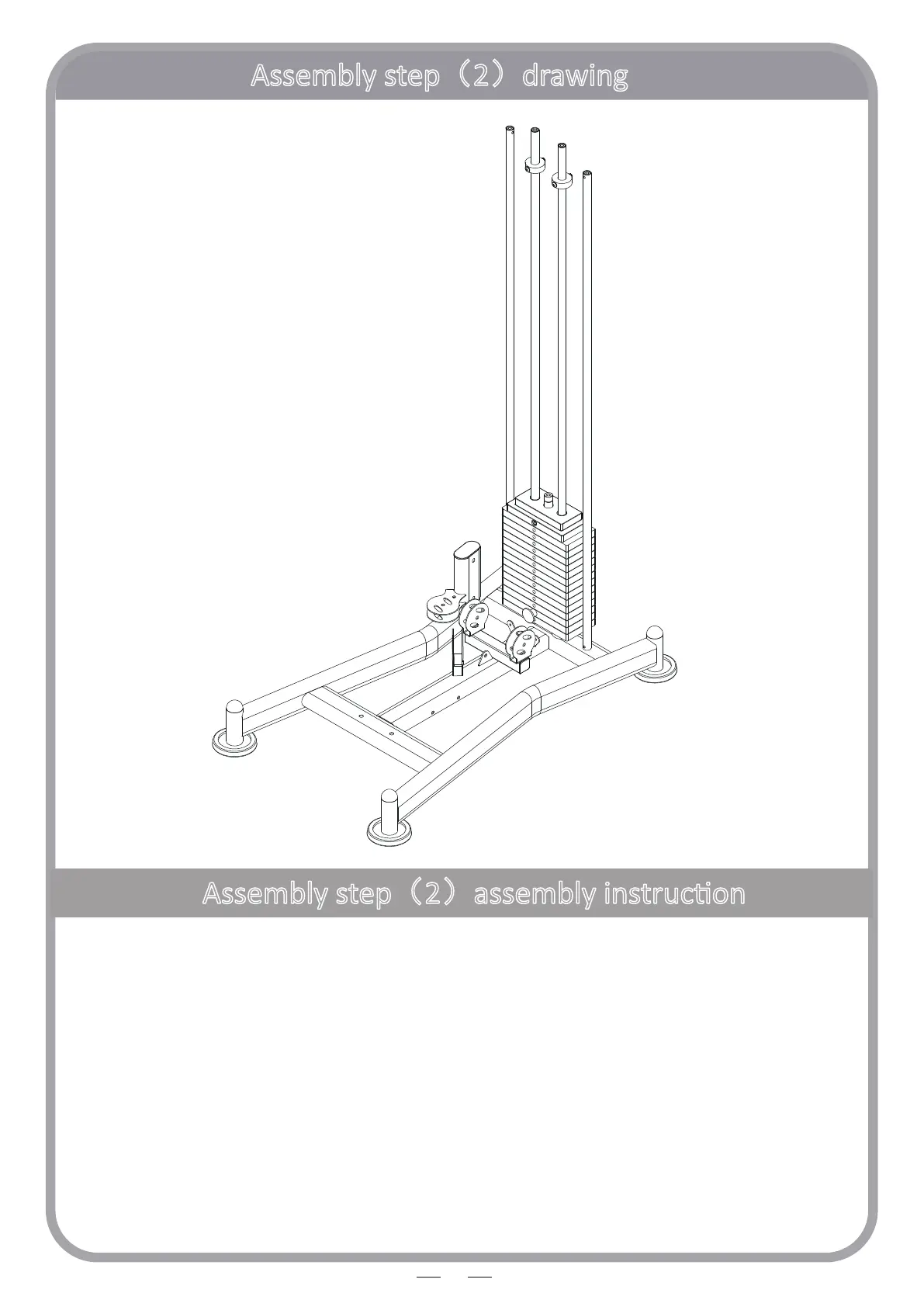

Assembly step（2）drawing
11
Assembly step（2）assembly instrucon
1. From guide rod top in turn put 14pcs counter weight(13), topmost counter weight(14);
among put topmost counter weight(14) on the top
2
. Remove the bolt from the topmost counter weight(14),then lower the selector rod(12)
into counter weights central, final install the bolt back to topmost counter weight(12)
3
. Fix counter weight rubber cushion(9) in the topmost hole in guide rod using:
in each case-one M8*70 hexagon socket buon head bolt(10),two Ф8 washer(15)
and one M8 lock nut(11)
4
. Insert weight pin(16) into the front of the second-to-boom counter weight
CAUTION: All bolts should be ghtening.
