TOORX MSX3000 - Assembly Step（4

15

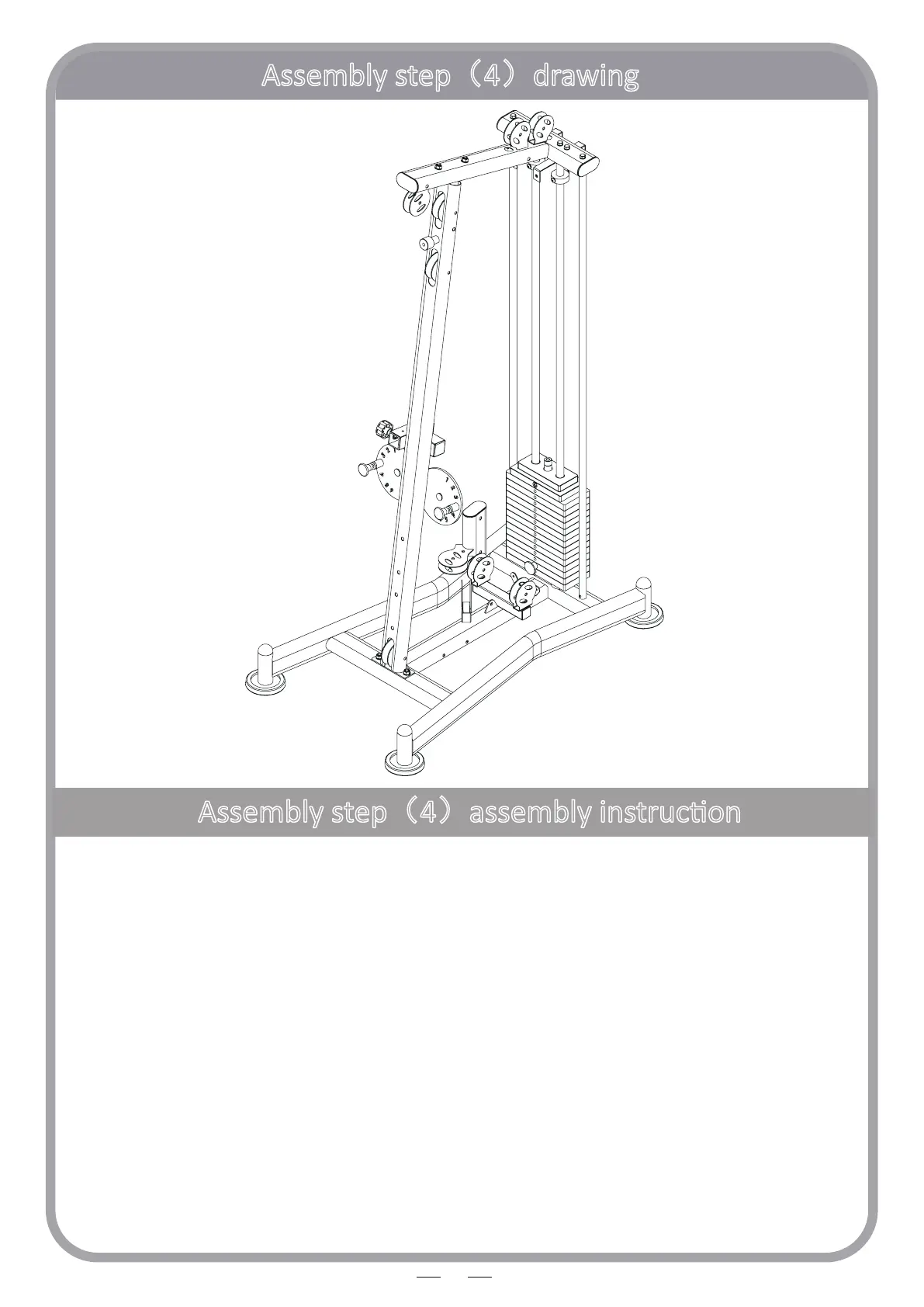

Assembly step（4）drawing
Assembly step（4）assembly instrucon
1. Fix shield support frame(24) and guide rod
2
. Fix upper frame (25) fastening with guide rod using:
M10*20 hexagon bolt(6),Ф10 spring washer(7),Ф10 washer(5)
3
. Fix upper frame (25) fastening on front frame using:
M12*70 hexagon bolt(19),Ф12 washer(20),M12 lock nut(21)
4
. Fix upper frame (25) fastening on back support rod using:
M10*65 hexagon bolt(4),Ф10 spring washer(7),Ф10 washer(5)
5
. Fix shield support frame(24) fastening on upper frame(15) using:
M10*65 hexagon bolt(4),Ф10 washer(5),M10 lock nut(23)
CAUTION: All bolts should be ghtening.
