TOORX MSX3000 - Assembly Step（7

21

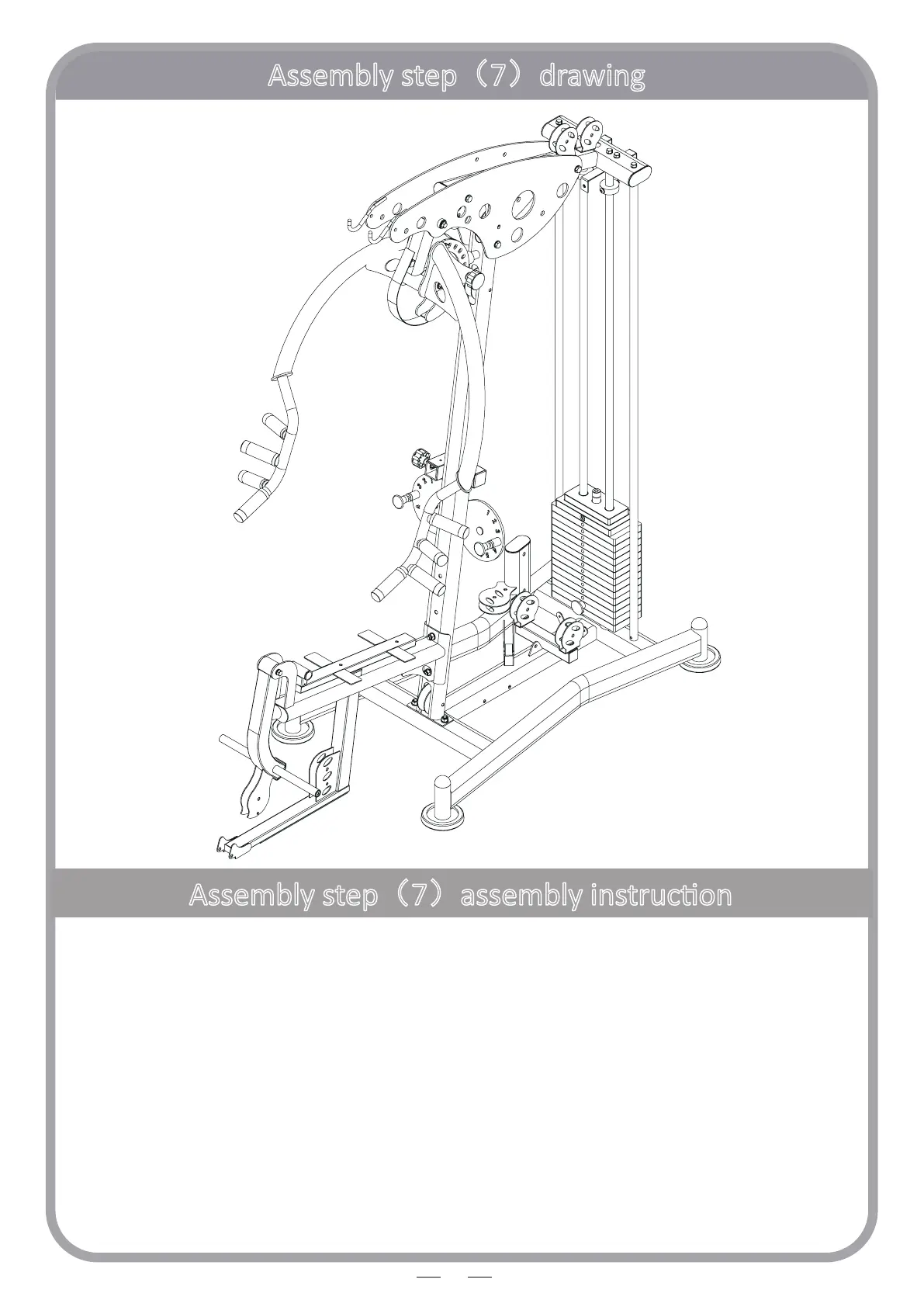

Assembly step（7）drawing
Assembly step（7）assembly instrucon
1. Fix front push holder(40) on le cover & right cover using:
sha(38),M10*20 hexagon bolt(6),Ф10 spring washer(7),Ф10 big washer(35)
2
. Fix front push arm(42) and front push holder(40) using:
sha(39),M10*20 hexagon bolt(6),Ф10 big washer(35),pull pin(37)
3
. Fix guard plate(41) on front push holder(40) using:
M8*16 hexagon bolt(36),Ф8 washer(15)
CAUTION: All bolts and pins should be ghtening.
