TOORX MSX3000 - Assembly Step 7: Front Push Mechanism Installation

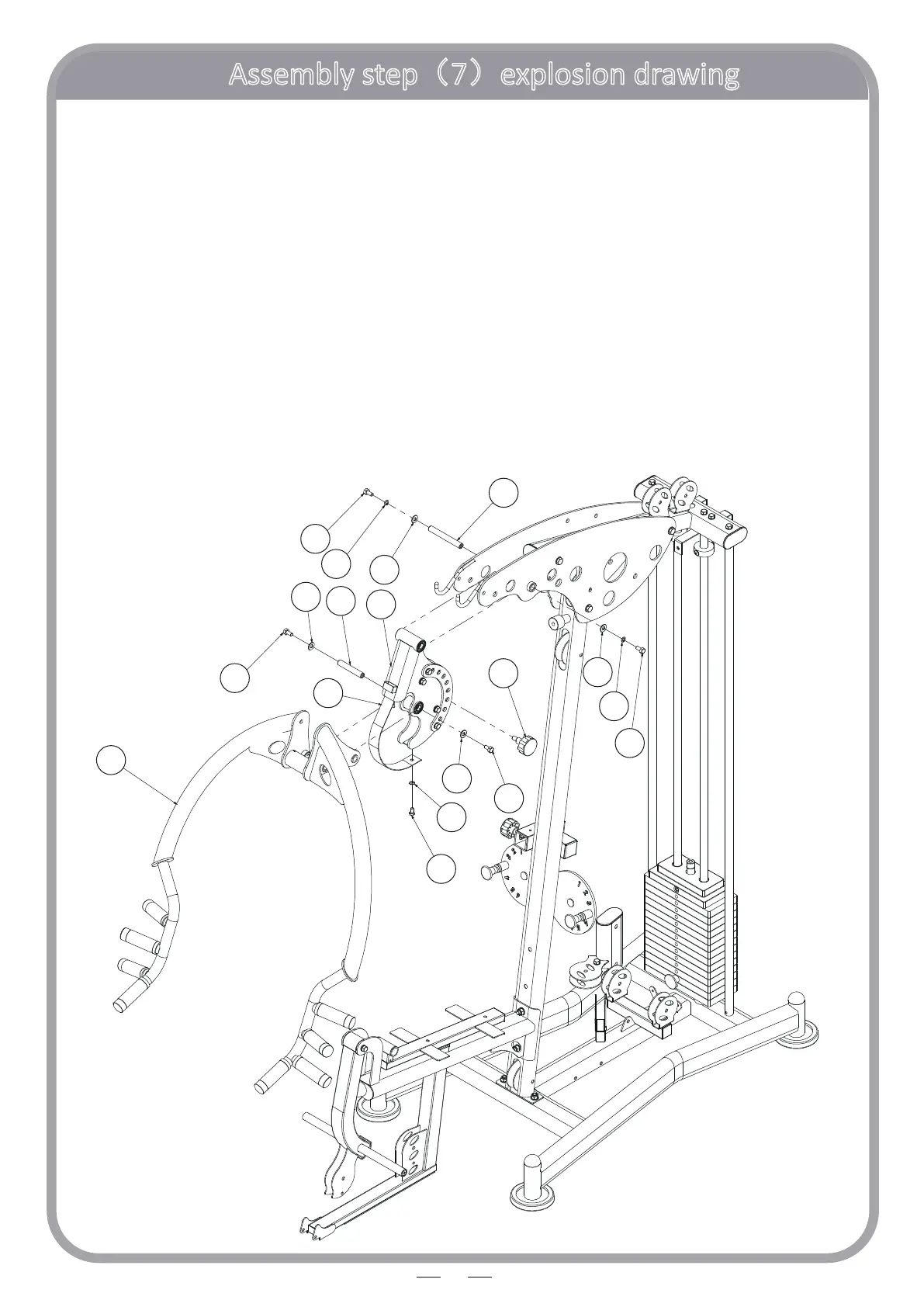

Assembly step（7）explosion drawing
20
15
6
6
6
6
7
7
35
35
35
35
37
38
39
40
36
41
42
No. Descripon Note Qty.
6 hexagon bolt M10*20 4
7 spring washer Φ10 2
15 washer Φ8 1
35 big washer Φ25*10*2.0 4
36 hexagon bolt M8*16 1
37 pull pin Φ12 1
38 sha Φ17*134 1
39 sha Φ17*100 1
40 front push holder 1
41 guard plate 1
42 front push arm 1
