TOORX MSX3000 - Assembly Instructions; Assembly Step 1: Vertical Frame Assembly

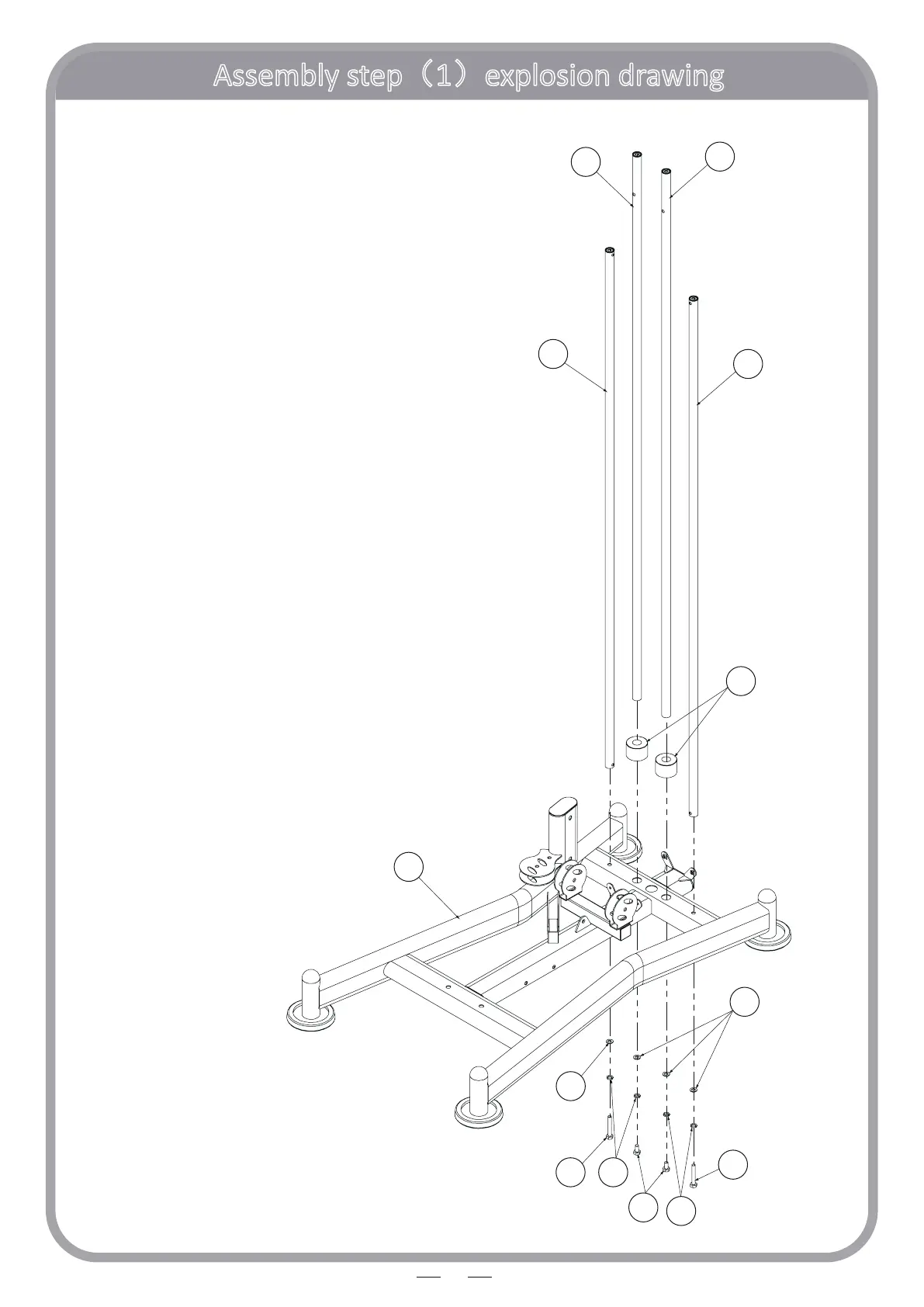

Assembly step（1）explosion drawing
8
8
7
7
1
4
4
5
5
6
3
3
2
2
No. Descripon Note Qty.
1 ground frame 1
2 guide rod Φ25*1853 2
3 back support rod Φ259*1757.5 2
4 hexagon bolt M10*65 2
5 washer Φ10 4
6 hexagon bolt M10*20 2
7 spring washer Φ10 4
8 rubber cushion Φ60*Φ26*42 2
