TOORX MSX3000 - Assembly Step 4: Upper Frame and Shield Support Installation

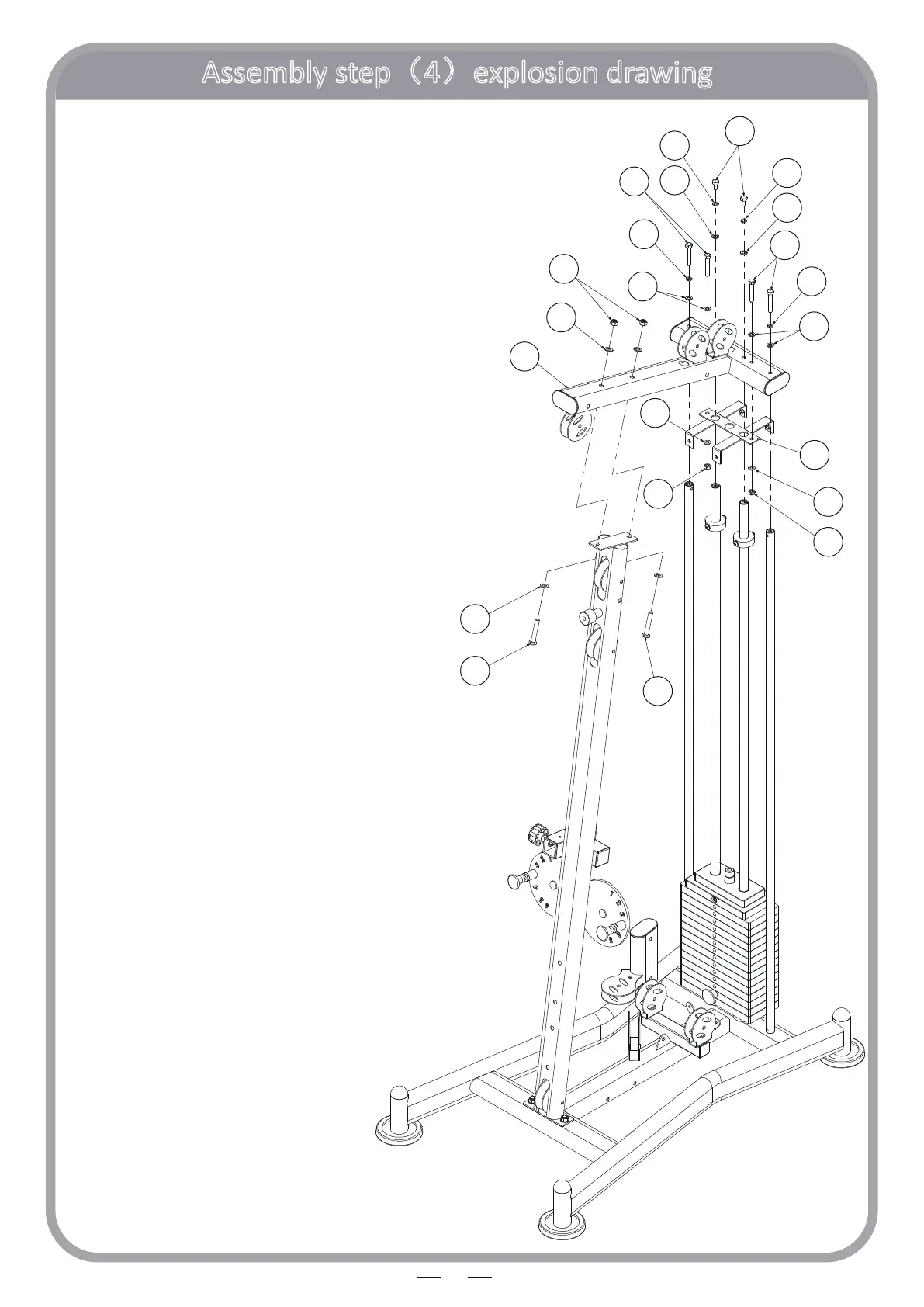

Assembly step（4）explosion drawing
14
5
5
5
5
5
5
6
4
4
20
19
23
23
7
7
24
7
7
21
20
25
19
No. Descripon Note Qty.
4 hexagon bolt M10*65 4
5 washer Φ10 8
6 hexagon bolt M10*20 2
7 spring washer Φ10 4
19 hexagon bolt M12*70 2
20 washer Φ12 4
21 lock nut M12 2
23 lock nut M10 2
24 shield support frame 1
25 upper frame 1
